1-2W Fixed Input DC/DC Converters R3 Series have ALL launched, providing Multiple Selections for you
As one of the MORNSUN hot-sale product series, the fixed input DC/DC converter R3 Series (hereafter called Fixed Input R3 Series) puts the performance, reliability, and process automation to a higher level, leading and promoting the development of micro power module technology.
Mornsun continuously completes the fixed input R3 series products in the 1-2W power range to meet the diverse needs of different users.

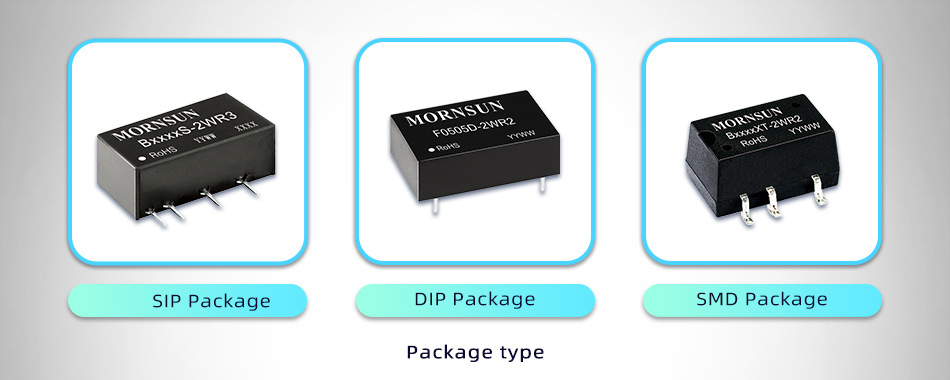

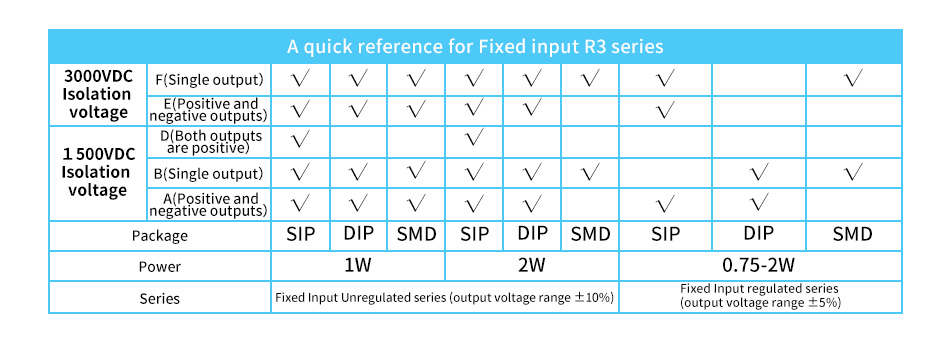

Up to now, these modules can be operated from 3.3V, 5V, 12V, 15V, and 24V and offer 3.3V, 5V, 12V, 15V, 24V, ±3.3V, ±5V, ±9V, ±12V, ±15V, ±24V outputs, as well as the various packages of SIP, DIP, SMD, can be selected on your needs.
Mornsun's fixed input R3 series adopts IC technology to solve mutual constraints defects between the three performances of continuous short-circuit protection, larger capacitive load, and the start-up capacity. Meanwhile, by upgrading these three functions, this series not only solves customers' inherent difficulties but also improves customers' experience.
Key Advantages
High parameter consistency in mass production, high reliability
By adopting a highly integrated circuit design, the R3 series has reduced the circuit components, simplified the design of the transformer, and efficiently improve parameter consistency and reliability.
Large capacitive load and continuous short-circuit protection
With the capacitive load capacity significantly enhanced, the R3 series is suitable for applications with large capacitive loads. In addition, its continuous short-circuit protection effectively prevents the whole system crash due to the failure of the Secondary power supply and improves the reliability of the whole system.
High cost-effective with compatibility design
The fixed input R3 series features universal pins and can pin-to-pin all of the R2 products, making it a cost-effective solution that uses the upgrade products without replacing the PCB.
Applications
The R3 Series can be widely used in an all-digital electronic circuit, ordinary low-frequency analog circuit, relay drive circuit, a circuit for data exchange, etc.
Key Features
High parameter consistency, high reliability
Large capacitive load
Continuous short-circuit protection
Low no-load power consumption
