35-75W AC/DC Enclosed Switching Power Supply with dual outputs (Io1/Io2 non-isolated) - LMxx-10A Series

35-75W AC/DC Enclosed Switching Power Supply with dual outputs (Io1/Io2 non-isolated) ---LMxx-10A Series.jpg

After the 35-75W dual-output isolated enclosed switching power supply LMxx-10D series, MORNSUN concentrated on such power segment and launched the 35W/50W/75W dual outputs (Io1/Io2 non-isolated) series --- LMxx-10A series.


This series can power two units in one system at the same time, while features high cost-effective, compact size, wide input voltage range, wide operating temperature range, high reliability, good EMC performance, and meeting the standards of IEC/EN/UL62368, EN60335, GB4943, make it the ideal choice in the field of industry, instrument, smart office equipment, etc.


Advantages

Outstanding cross-regulation performance

12V: 8.47% (Typ.), 24V: 7.6% (Typ.), suitable for applications with high load variation or multiple loads.


Simplified design, compact size

LM35-10A: 99x97x30mm/210g,

LM50-10A: 99x97x30mm/250g,

LM75-10A: 129x97x30mm/310g


High cost-effective

Mornsun improves the quality of the products by innovating the technology and optimizing the platforms while selling at the lowest price to realize the real high cost-effective.


Safety compliance

Comply with IEC/EN/UL62368, EN60335, and GB4943 standards


High reliability

a. Wide input voltage range of 85/90-264VAC, suitable for the worldwide main applications of the power grid.

b. Wide operating temperature range of -30℃ to +70℃, can be applied in a harsh environment.

c. Isolation voltage: 3000VAC

d. Leakage current <2mA

e. EMI meets CISPR32/EN55032 Class B standard

f. Output voltage is changeable, and can adapt to the requirements of the more industrial scene.


Applications

It can be widely used in the applications of industry, instruments, smart office equipment, etc.

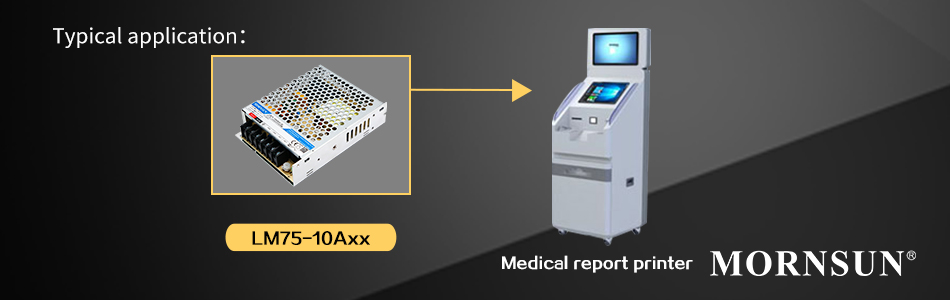

35-75W AC/DC Enclosed Switching Power Supply typical application.jpg


Features

  • Wide input voltage range: 85/90-264VAC, 120-370VDC

  • Wide operating temperature range: -30℃ to +70℃

  • High efficiency, high reliability, long lifespan

  • Output short circuit, over-current, over-voltage protection

  • Isolation voltage: 3000VAC

  • EMI meets CISPR32/EN55032 Class B standard

  • Operating altitude up to 5000m

  • Compact size


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Efficiency(%) Isolation Footprint & 3D Markings Datasheet Sample Buy
LM35-10A0512-10 32 85-264 120-370 5,12 4A,1A 2 79 3000VAC
LM35-10A0524-10 35 85-264 120-370 5,24 2.2A,1A 2 80 3000VAC
LM50-10A0512-20 54 85-264 120-370 5,12 6A,2A 2 79 3000VAC
LM50-10A0524-14 53.6 85-264 120-370 5,24 4A,1.4A 2 80 3000VAC
LM75-10A0512-30 71 90-264 120-370 5,12 7A,3A 2 80 3000VAC
LM75-10A0512-40 68 90-264 120-370 5,12 4A 2 80 3000VAC
LM75-10A0524-20 73 90-264 120-370 5,24 5A,2A 2 81 3000VAC
