Smaller with better performance, AC/DC DIN rail Power Supply in metal case - LI75/120-23BxxR3

MORNSUN launched the upgraded R3 DIN rail power supply LI75/120-23BxxR3 with a metal case, lower cost, smaller size, and better performance. The products are designed to meet UL61010 standard, with 85-305VAC input and a 3-year warranty, and the dimension is 30% smaller than the R2 products. They also feature a wide operating temperature range and Constant current protection. They are stable and safer solutions with better quality.

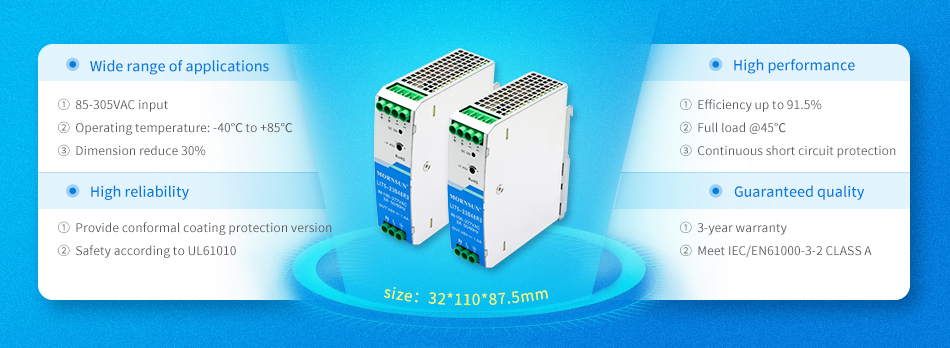

Smaller with better performance, AC/DC DIN rail Power Supply in metal case - LI75/120-23BxxR3.jpg


Advantages

1. Wide range of applications

① Universal 85 - 305VAC or 120 - 430VDC Input voltage, Accepts AC or DC input (dual-use of same terminal)

② Compact size: 32mm width, dimension is 30% smaller than the R2, suitable for various cabinet types.


2. High performance

① Efficiency up to 91.5%, greatly improves the reliability and lifespan of the power supply

② Wide operating temperature: -40℃ to +85℃, full load @45℃

③ Output short circuit (Constant current mode), over-current, over-voltage, over-temperature protections


3. High reliability

① Metal case, provide conformal coating protection version, suitable for the harsh environment

② With power indicator light

③ Meet IEC/EN61000-3-2 CLASS A

④ Pass the test at 85℃ high temperature and 85% humidity


4. Guaranteed quality

① 3-year warranty

② Safety according to UL61010, EN/UL/BSEN62368, EN60335, EN61558, GB4943 standards



Applications

LIxx-23BxxR3 series can be widely used in industrial control, LED, streetlight control, electric power, security, communication, smart home, etc. Its slim-type layout, lightweight, compact structure, and standard DIN rail package make it ideal for space-limited applications.



The products should be used in natural air cooling environment, if used in a closed environment, please contact our FAE team.

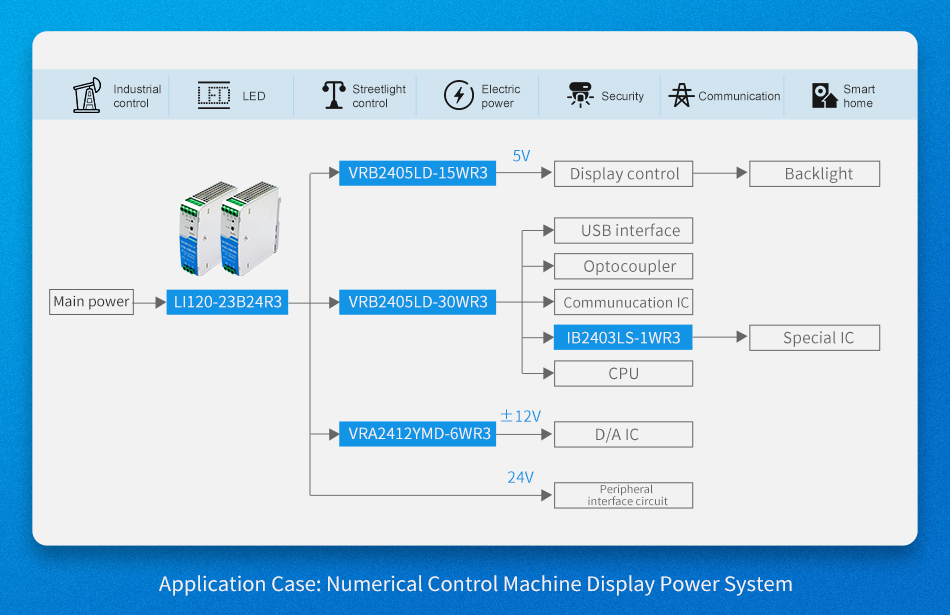

LIxx-23BxxR3'S Application Case: Numerical Control Machine Display Power System.jpg



Features

  • Universal 85 - 305VAC or 120 - 430VDC Input voltage

  • Efficiency up to 91.5%

  • Operating temperature range: -40℃ to +85℃

  • Full load @45℃

  • High isolation voltage up to 4000VAC

  • Compact structure for small cabinet or narrow space installation

  • 5000m altitude

  • 3-year warranty

  • Output short circuit (Constant current mode), over-current, over-voltage, over-temperature protections

  • Safety according to UL61010, IEC/EN/UL/BSEN62368-1, EN60335-1, IEC/EN61558-1, GB4943.1 standards



* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout Isolation Footprint & 3D Markings Datasheet Sample Buy
LI120-23B24R3 120 85-305 120-430 24 5A 4000VAC
-
LI120-23B48R3 120 85-305 120-430 48 2.5A 4000VAC
-
LI75-23B12R3 75.6 85-305 120-430 12 6.3A 4000VAC
-
LI75-23B24R3 76.8 85-305 120-430 24 3.2A 4000VAC
-
LI75-23B48R3 76.8 85-305 120-430 48 1.6A 4000VAC
-
