5W 90-528VAC Ultra-wide Input Voltage AC/DC Converters LS05-26BxxSS (-F) series

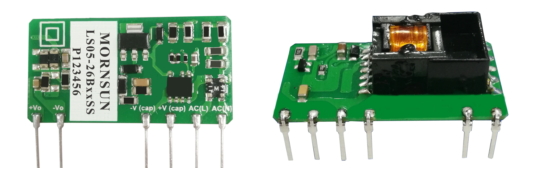

    MORNSUN recently introduced 5W ultra-wide input voltage SIP AC/DC Converters LS05-26BxxSS (-F) series after the launch of the 3W LS03-16BxxSS series (SIP) and LD03-16Bxx series (DIP). This series have a wide input voltage range of 90-528VAC, and meet the power requirement of supporting any two-wire connection in nominal voltage 380/220VAC of three-phase four-wire.


    The design of LS05-26BxxSS(-F) series meet the UL62368/ EN62368 (pending)/IEC62368 standards, and input to output isolation voltage is as high as 4000 VAC. They provide output short-circuit protection and over-current protection, featuring higher reliability than discrete power supply solutions.


    In addition, small board space and high integration levels are required for extremely space-constrained systems. The unique SIP package design is particularly suitable for these small-size applications, and customers can use different peripheral circuit to meet different requirements.


 Applications

Ammeter, dual-power switch controller, fire-control power system and others




 Features
√ Ultra wide input voltage range: 90 - 528VAC/100 - 745VDC
√ AC and DC dual-use (input from the same terminal), suitable for any two-wire connection from three-phase four-wire system
√ Operating temperature range: -40°C to +85°C
√ Compact size, high power density
√ Isolation voltage: 4000VAC
√ Used in such as electrical, instrumentation industries
√ Output short circuit protection, over-current protection

√ Meets UL62368/ EN62368/IEC62368 standards

Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LS05-26B03SS 2.805 90-528 100-745 3.3 1 4000 SIP 44.50*13.00*24.00
LS05-26B03SS-F 2.805 90-528 100-745 3.3 1 4000 PCB mounting 44.50*13.00*24.00
LS05-26B05SS 4.25 90-528 100-745 5 1 4000 SIP 44.50*13.00*24.00
LS05-26B05SS-F 4.25 90-528 100-745 5 1 4000 PCB mounting 44.50*13.00*24.00
LS05-26B09SS 5 90-528 100-745 9 1 4000 SIP 44.50*13.00*24.00
LS05-26B09SS-F 5 90-528 100-745 9 1 4000 PCB mounting 44.50*13.00*24.00
LS05-26B12SS 5 90-528 100-745 12 1 4000 SIP 44.50*13.00*24.00
LS05-26B12SS-F 5 90-528 100-745 12 1 4000 PCB mounting 44.50*13.00*24.00
LS05-26B15SS 5 90-528 100-745 15 1 4000 SIP 44.50*13.00*24.00
LS05-26B15SS-F 5 90-528 100-745 15 1 4000 PCB mounting 44.50*13.00*24.00
LS05-26B24SS 5 90-528 100-745 24 1 4000 SIP 44.50*13.00*24.00
LS05-26B24SS-F 5 90-528 100-745 24 1 4000 PCB mounting 44.50*13.00*24.00
