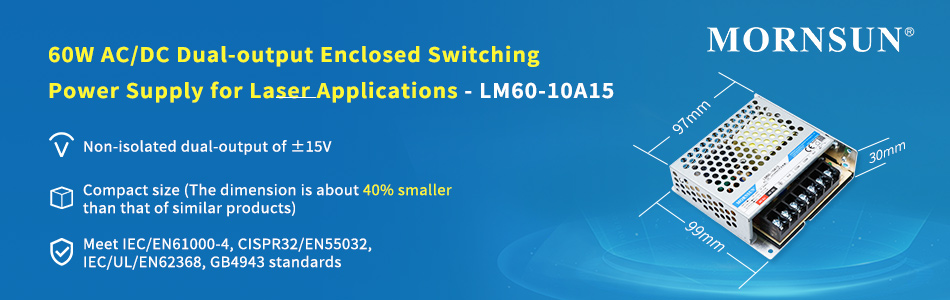

60W AC/DC Dual-output Enclosed Switching Power Supply for Laser Applications --- LM60-10A15

60W AC/DC Dual-output Enclosed Switching Power Supply for Laser Applications --- LM60-10A15.jpg

To address the power design challenges such as size, reliability, certification, etc. in laser applications, MORNSUN launched the LM60-10A15 series with the feature of a wide input voltage range and non-isolated dual-output of ±15V.



The LM60-10A15 series accepts AC or DC input has a compact size of about 40% smaller than that of similar products and is designed to meet the EMC and safety regulations of IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards, which meet the high-reliability requirements of laser applications.


MORNSUN LMxx-12Axx series covers the power of 60W, 90W, and 150W for laser galvanometer applications, which can also be used for current sensors, motors, etc.


Advantages of 60W AC/DC Dual-output Enclosed Switching Power Supply

1. Compact size: the dimension is about 40% smaller than that of similar products

2. Highly automated production (about 80% automation) with complete process control management

3. Wide operating temperature range: -25℃ to +70℃

4. High reliability:

a. Meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards

b. Output short circuit, over-current, over-voltage protection

c. Operating altitude up to 5000m

d. High I/O isolation voltage up to 3000VAC

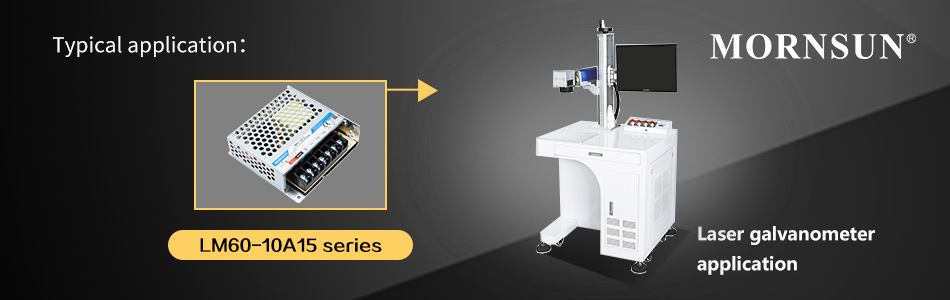

Applications of 60W AC/DC Dual-output Enclosed Switching Power Supply

The LM60-10A15 series enclosed switching power supply can be widely used in laser galvanometer, current sensors, motors, etc.

60W AC/DC Dual-output Enclosed Switching Power Supply for Laser Applications --- LM60-10A15.jpg


Features of 60W AC/DC Dual-output Enclosed Switching Power Supply

  • Universal Input voltage: 85 - 264VAC or 120 - 370VDC

  • Operating temperature: -25℃ to +70℃

  • High efficiency, high reliability, and long life

  • Output short circuit, over-current, over-voltage protection

  • High I/O isolation voltage up to 3000VAC

  • Operating altitude up to 5000m

  • Compact size layout (The volume is about 40% smaller than that of similar products)

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Efficiency(%) Isolation Footprint & 3D Markings Datasheet Sample Buy
LM60-10A15 60 85-264 120-370 15,-15 2A 2 82 3000VAC
