Why You Should Choose the MORNSUN 305RAC AC/DC Converters

CONTENTS


The market requirements in different industries are changing, and AC/DC power supplies need to keep up with the rising standards of quality and performance. Conventional 264V input AC/DC power supplies have difficulty meeting all working conditions.


Our technical engineers have designed the MORNSUN 305RAC AC/DC Converter Series with your needs in mind. Here below, we will present an overview of the MORNSUN 305RAC product collection and highlight some of their key features.


MORNSUN 305RAC AC/DC Converter Series


What is the MORNSUN 305RAC Series?

The MORNSUN 305RAC is a collection of AC/DC converters with an input range of 85-305VAC. In the product name, “RAC” is used as an abbreviation for “Reliable under all conditions”, a guarantee of peak performance under all circumstances.


The MORNSUN 305RAC Series at a glance:

● The MORNSUN 305RAC Series can handle voltage fluctuations easily and features best-in-class performance;

● It provides optimal performance even in high-input-voltage, high-low temperature, high-humidity, and high-altitude environments;

● It is designed for a good EMC performance even under the harshest working conditions;


What products are included in the 305RAC AC/DC Family?

The MORNSUN 305RAC AC/DC Converter Series is expanding periodically with new product entries. Below are some of the AC/DC Power Supplies currently available at MORNSUN:

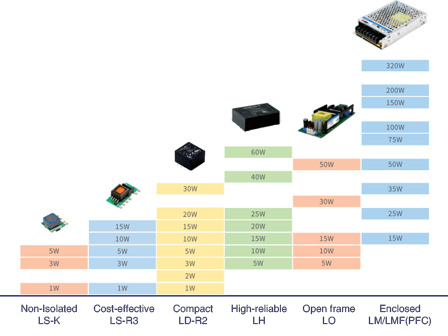

305RAC Family


Why should you choose the MORNSUN 305RAC Series?

There are several reasons to choose the MORNSUN 305RAC AC/DC Converters,and here are some key highlights:

● High ability in resisting public power grid voltage fluctuations

● Peak performance even at high-altitude environments (up to 5000m)

● Reliable performance even at extreme temperatures (from -40°C to +80°C)

● High ability to resist cyclic and extreme temp. and constant humidity

● Good EMI performance (CISPR32/EN55032 CLASS B)


We will now review each point in details:

1. Voltage Fluctuations in the Power Supply

Large voltage fluctuations can cause damage to the electrolytic capacitor inside the power supply, especially when the power comes from a generator.


Why choose the MORNSUN 305RAC: the input voltage range of the MORNSUN 305RAC (85-305VAC) ensures that the module is not damaged by any voltage fluctuations.


2. Remote and Harsh Environments at High Altitudes

AC/DC power supplies are often used in remote and harsh environments where the altitude exceeds 2000m or even 5000m.


Why choose the MORNSUN 305RAC: the 305RAC Family has passed a series of tests to verify its reliable operation even in high-altitude environments. Some of the tests performed include: high-temperature altitude test, low-temperature altitude test, aging test, and more.


3. Fluctuations in Temperature and Humidity Levels

The reliability of AC/DC power supplies is essential when dealing with significant temperature swings. The typical working environment for industrial equipment is -25°C- +70°C. However, some environments are more prone than others to severe temperature changes and AC/DC power supplies need to keep pace with the changeful environmental variables.


Why choose the MORNSUN 305RAC: the 305RAC series can uphold reliable operations at working temperatures ranging from -40°C to +80°C. It has also passed a series of humidity tests, including alternating temperature and humidity test, high temperature and high humidity test, constant temperature and humidity test, and more.


4. Electromagnetic Interference

Electromagnetic Interference (EMI) is always a potential problem with switched-mode power supplies - both AC-DC and DC-DC converters - by virtue of their inherent design characteristics. As an engineer, you may be familiar with the several benefits of switched-mode converters, including high efficiency with small size and weight. However, many engineers also struggle with the electrical noise they produce.


Why choose the MORNSUN 305RAC: each of the 305RAC AC to DC converter can withstand the transient surge impact generated from electromagnetic interference conditions, including lighting and surge. Their EMI has also been tested to meet Class A/B standards with a good margin.


What are some applications of the MORNSUN 305RAC Series?

The MORNSUN 305RAC AC/DC Converters are designed to ensure stable and reliable performance under almost any harsh conditions. While the key attributes are consistent among all the AC/DC Converters in the 305RAC Family, their applications can vary according to each industry.


Here below we will examine some of the most prominent applications scenarios for the MORNSUN 305 RAC Series:

1. DC Charging Points

Your challenges: DC charging stations are becoming more widespread as electric vehicles are slowly but steadily replacing their petrol and diesel counterparts. As an engineer, you need to prevent and control any possible large voltage fluctuations of the power grid in harsh environments. When the input voltage rises to 290VAC, the voltage unbalance of the three-phase AC distribution system can cause damage to the electrolytic capacitor inside the power supply.


Our solution: LMxx-23Bxx


MORNSUN's LMxx-23Bxx


2. Street Lighting Controllers

Your challenges: streetlight luminaries require a constant flow of current to promote road safety for drivers and pedestrians in low-visibility conditions. Conventional power supplies with 85-264VAC input can be damaged in harsh environments where the input transient voltage exceeds 264VAC.


Our solution: LDExx-23Bxx


MORNSUN's LDExx-23Bxx


3. Protective Relays

Your challenges: protective relays are often applied directly to the electrical power grid and need to operate under difficult working conditions. In particular, the requirements for EMC protection are among the highest to ensure long-term reliability in protective relays.


Our solution: LO30-23B12E


MORNSUN's LO30-23B12E


4. Lighting in Harsh and Hazardous Areas

Your challenges: street lighting in hazardous areas needs to operate continuously despite any atmospheric conditions, including extreme temperatures and high humidity levels. Other challenges of AC/DC power supply applications in street lighting include operating in dusty environments and withstanding large voltage fluctuations.


Our solution: LMF320-23B12


MORNSUN's LMF320-23B12


Conclusion

As the name suggests, the MORNSUN 305RAC Series is designed to ensure stable and reliable performance under all conditions. When you choose a MORNSUN AC/DC converter, you can expect reliable performance with limited costs.


You deserve high power reliability for all the power supplies you purchase. At MORNSUN, we take every effort to improve our innovation and technology capability. We are committed to continuously refining and improving our selection of over 5000 high-quality products to ensure the highest level of client satisfaction.


Contact us today to request a sample or to ask us any questions related to the MORNSUN 305RAC Family.


Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LS01-K3B05SS 1 85-305 70-430 5 200mA 1 - SIP 16.13*15.10*9.50
LS03-13B03R3 1.98 85-305 70-430 3.3 600mA 1 3000VAC SIP 26.40*12.58*11.00
LD03-23B03R2P 2 85-305 100-430 3.3 600mA 1 3600VAC DIP 37.50*18.50*13.60
LD03-23B03R2 3 85-305 100-430 3.3 900mA 1 4000VAC DIP 25.40*25.40*17.60
LD03-23B03WR2 3 85-305 100-430 3.3 900mA 1 4000VAC DIP 25.40*25.40*17.60
LD03-23B05R2 3 85-305 100-430 5 600mA 1 4000VAC DIP 25.40*25.40*17.60
LD03-23B05R2P 3 85-305 100-430 5 600mA 1 3600VAC DIP 37.50*18.50*13.60
LD03-23B05WR2 3 85-305 100-430 5 600mA 1 4000VAC DIP 25.40*25.40*17.60
LD03-23B06R2P 3 85-305 100-430 6 500mA 1 3600VAC DIP 37.50*18.50*13.60
LD03-23B09R2 3 85-305 100-430 9 333mA 1 4000VAC DIP 25.40*25.40*17.60
LD03-23B09R2P 3 85-305 100-430 9 340mA 1 3600VAC DIP 37.50*18.50*13.60
LD03-23B09WR2 3 85-305 100-430 9 333mA 1 4000VAC DIP 25.40*25.40*17.60
LD03-23B12R2 3 85-305 100-430 12 250mA 1 4000VAC DIP 25.40*25.40*17.60
LD03-23B12R2P 3 85-305 100-430 12 250mA 1 3600VAC DIP 37.50*18.50*13.60
LD03-23B12WR2 3 85-305 100-430 12 250mA 1 4000VAC DIP 25.40*25.40*17.60
LD03-23B15R2 3 85-305 100-430 15 200mA 1 4000VAC DIP 25.40*25.40*17.60
LD03-23B15R2P 3 85-305 100-430 15 200mA 1 3600VAC DIP 37.50*18.50*13.60
LD03-23B15WR2 3 85-305 100-430 15 200mA 1 4000VAC DIP 25.40*25.40*17.60
LD03-23B24R2 3 85-305 100-430 24 125mA 1 4000VAC DIP 25.40*25.40*17.60
LD03-23B24R2P 3 85-305 100-430 24 125mA 1 3600VAC DIP 37.50*18.50*13.60
LD03-23B24WR2 3 85-305 100-430 24 125mA 1 4000VAC DIP 25.40*25.40*17.60
LS03-13B05R3 3 85-305 70-430 5 600mA 1 3000VAC SIP 26.40*12.58*11.00
LS03-13B09R3 3 85-305 70-430 9 333mA 1 3000VAC SIP 26.40*12.58*11.00
LS03-13B12R3 3 85-305 70-430 12 250mA 1 3000VAC SIP 26.40*12.58*11.00
LS03-13B15R3 3 85-305 70-430 15 200mA 1 3000VAC SIP 26.40*12.58*11.00
LS03-13B24R3 3 85-305 70-430 24 125mA 1 3000VAC SIP 26.40*12.58*11.00
LS05-13B03R3 3.3 85-305 70-430 3.3 1000mA 1 3600VAC SIP 26.40*14.73*11.00
LS05-13B03R3-F 3.3 85-305 70-430 3.3 1000mA 1 3600VAC SIP 27.84*11.60*17.60
LD05-23B03R2 5 85-305 100-430 3.3 1515mA 1 4000VAC DIP 25.40*25.40*17.60
LD05-23B05R2 5 85-305 100-430 5 1000mA 1 4000VAC DIP 25.40*25.40*17.60
LD05-23B09R2 5 85-305 100-430 9 555mA 1 4000VAC DIP 25.40*25.40*17.60
LD05-23B12R2 5 85-305 100-430 12 416mA 1 4000VAC DIP 25.40*25.40*17.60
LD05-23B15R2 5 85-305 100-430 15 333mA 1 4000VAC DIP 25.40*25.40*17.60
LD05-23B24R2 5 85-305 100-430 24 208mA 1 4000VAC DIP 25.40*25.40*17.60
LS05-13B05R3 5 85-305 70-430 5 1000mA 1 3600VAC SIP 26.40*14.73*11.00
LS05-13B05R3-F 5 85-305 70-430 5 1000mA 1 3600VAC SIP 27.84*11.60*17.60
LS05-13B09R3 5 85-305 70-430 9 560mA 1 3600VAC SIP 26.40*14.73*11.00
LS05-13B09R3-F 5 85-305 70-430 9 560mA 1 3600VAC SIP 27.84*11.60*17.60
LS05-13B12R3 5 85-305 70-430 12 420mA 1 3600VAC SIP 26.40*14.73*11.00
LS05-13B12R3-F 5 85-305 70-430 12 420mA 1 3600VAC SIP 27.84*11.60*17.60
LS05-13B15R3 5 85-305 70-430 15 340mA 1 3600VAC SIP 26.40*14.73*11.00
LS05-13B15R3-F 5 85-305 70-430 15 340mA 1 3600VAC SIP 27.84*11.60*17.60
LS05-13B24R3 5 85-305 70-430 24 210mA 1 3600VAC SIP 26.40*14.73*11.00
LS05-13B24R3-F 5 85-305 70-430 24 210mA 1 3600VAC SIP 27.84*11.60*17.60
LO10-13B03 6.6 85-305 100-430 3.3 2000mA 1 3000VAC Open frame 60.00*42.00*16.30
LS10-13B03R3 6.6 85-305 100-430 3.3 2000mA 1 3600VAC SIP 32.00*17.20*15.05
LD10-23B03R2 8.6 85-305 100-430 3.3 2600mA 1 4200VAC DIP 40.00*25.40*21.00
LO10-23D0524-02E 9.8 85-305 100-430 5,24 1000mA,200mA 1 4000VAC Open frame 61.00*45.00*28.00
LM15-23B03 9.9 85-305 100-430 3.3 3.0A 1 4000VAC - -
LO15-23B03E 9.9 85-305 88-430 3.3 3000mA 1 4000VAC Open frame 87.50*50.00*22.00
LS15-13B03SS 9.9 85-305 100-430 3.3 3000mA 1 3000VAC SIP 44.50*24.00*15.00
LS15-13B03SS-F 9.9 85-305 100-430 3.3 3000mA 1 3000VAC SIP 44.50*24.00*15.00
LD10-23B05R2 10 85-305 100-430 5 2000mA 1 4200VAC DIP 40.00*25.40*21.00
LD10-23B09R2 10 85-305 100-430 9 1100mA 1 4200VAC DIP 40.00*25.40*21.00
LD10-23B12R2 10 85-305 100-430 12 830mA 1 4200VAC DIP 40.00*25.40*21.00
LD10-23B15R2 10 85-305 100-430 15 660mA 1 4200VAC DIP 40.00*25.40*21.00
LD10-23B24R2 10 85-305 100-430 24 410mA 1 4200VAC DIP 40.00*25.40*21.00
LO10-13B05 10 85-305 100-430 5 2000mA 1 3000VAC Open frame 60.00*42.00*16.30
LO10-13B09 10 85-305 100-430 9 1100mA 1 3000VAC Open frame 60.00*42.00*16.30
LO10-13B12 10 85-305 100-430 12 900mA 1 3000VAC Open frame 60.00*42.00*16.30
LO10-13B15 10 85-305 100-430 15 700mA 1 3000VAC Open frame 60.00*42.00*16.30
LO10-13B24 10 85-305 100-430 24 450mA 1 3000VAC Open frame 60.00*42.00*16.30
LS10-13B05R3 10 85-305 100-430 5 2000mA 1 3600VAC SIP 32.00*17.20*15.05
LS10-13B09R3 10 85-305 100-430 9 1100mA 1 3600VAC SIP 32.00*17.20*15.05
LS10-13B12R3 10 85-305 100-430 12 830mA 1 3600VAC SIP 32.00*17.20*15.05
LS10-13B15R3 10 85-305 100-430 15 670mA 1 3600VAC SIP 32.00*17.20*15.05
LS10-13B24R3 10 85-305 100-430 24 420mA 1 3600VAC SIP 32.00*17.20*15.05
LD15-23B03R2 13.2 85-305 100-430 3.3 4000mA 1 4200VAC DIP 47.60*26.80*23.50
LS15-13B05SS 14 85-305 100-430 5 2800mA 1 3000VAC SIP 44.50*24.00*15.00
LS15-13B05SS-F 14 85-305 100-430 5 2800mA 1 3000VAC SIP 44.50*24.00*15.00
LD20-23B03R2 14.85 85-305 100-430 3.3 4500mA 1 4200VAC DIP 52.40*27.20*24.00
LD15-23B05R2 15 85-305 100-430 5 3000mA 1 4200VAC DIP 47.60*26.80*23.50
LD15-23B09R2 15 85-305 100-430 9 1670mA 1 4200VAC DIP 47.60*26.80*23.50
LD15-23B12R2 15 85-305 100-430 12 1250mA 1 4200VAC DIP 47.60*26.80*23.50
LD15-23B15R2 15 85-305 100-430 15 1000mA 1 4200VAC DIP 47.60*26.80*23.50
LD15-23B24R2 15 85-305 100-430 24 625mA 1 4200VAC DIP 47.60*26.80*23.50
LM15-23B05 15 85-305 100-430 5 3.0A 1 4000VAC - -
LM15-23B15 15 85-305 100-430 15 1.0A 1 4000VAC - -
LM15-23B24 15 85-305 100-430 24 0.625A 1 4000VAC - -
LO15-23B05E 15 85-305 88-430 5 3000mA 1 4000VAC Open frame 87.50*50.00*22.00
LO15-23B15E 15 85-305 88-430 15 1000mA 1 4000VAC Open frame 87.50*50.00*22.00
LO15-23D0524-02E 15 85-305 100-430 5,24 2000mA,200mA 1 4000VAC Open frame 76.00*45.00*26.00
LS15-13B09SS 15 85-305 100-430 9 1670mA 1 3000VAC SIP 44.50*24.00*15.00
LS15-13B09SS-F 15 85-305 100-430 9 1670mA 1 3000VAC SIP 44.50*24.00*15.00
LS15-13B12SS 15 85-305 100-430 12 1250mA 1 3000VAC SIP 44.50*24.00*15.00
LS15-13B12SS-F 15 85-305 100-430 12 1250mA 1 3000VAC SIP 44.50*24.00*15.00
LS15-13B15SS 15 85-305 100-430 15 1000mA 1 3000VAC SIP 44.50*24.00*15.00
LS15-13B15SS-F 15 85-305 100-430 15 1000mA 1 3000VAC SIP 44.50*24.00*15.00
LS15-13B24SS 15 85-305 100-430 24 625mA 1 3000VAC SIP 44.50*24.00*15.00
LS15-13B24SS-F 15 85-305 100-430 24 625mA 1 3000VAC SIP 44.50*24.00*15.00
LM15-23B48 15.36 85-305 100-430 48 0.32A 1 4000VAC - -
LM15-23B12 15.6 85-305 100-430 12 1.3A 1 4000VAC - -
LO15-23B12E 15.6 85-305 88-430 12 1300mA 1 4000VAC Open frame 87.50*50.00*22.00
LO15-23B24E 15.8 85-305 88-430 24 700mA 1 4000VAC Open frame 87.50*50.00*22.00
LD30-23B03R2 19.8 85-305 100-430 3.3 6000mA 1 4200VAC DIP 69.50*39.00*24.00
LM25-23B03 19.8 85-305 100-430 3.3 6A 1 4000VAC - -
LO30-23B03E 19.8 85-305 88-430 3.3 6000mA 1 4000VAC Open frame 105.00*50.00*30.00
LD20-23B05R2 20 85-305 100-430 5 4000mA 1 4200VAC DIP 52.40*27.20*24.00
LD20-23B09R2 20 85-305 100-430 9 2200mA 1 4200VAC DIP 52.40*27.20*24.00
LD20-23B12R2 20 85-305 100-430 12 1670mA 1 4200VAC DIP 52.40*27.20*24.00
LD20-23B15R2 20 85-305 100-430 15 1330mA 1 4200VAC DIP 52.40*27.20*24.00
LD20-23B24R2 20 85-305 100-430 24 830mA 1 4200VAC DIP 52.40*27.20*24.00
LM25-23B05 25 85-305 100-430 5 5A 1 4000VAC - -
LM25-23B12 25.2 85-305 100-430 12 2.1A 1 4000VAC - -
LM25-23B15 25.5 85-305 100-430 15 1.7A 1 4000VAC - -
LM25-23B24 26.4 85-305 100-430 24 1.1A 1 4000VAC - -
LM25-23B48 27.36 85-305 100-430 48 0.57A 1 4000VAC - -
LD30-23B05R2 30 85-305 100-430 5 6000mA 1 4200VAC DIP 69.50*39.00*24.00
LD30-23B12R2 30 85-305 100-430 12 2500mA 1 4200VAC DIP 69.50*39.00*24.00
LD30-23B15R2 30 85-305 100-430 15 2000mA 1 4200VAC DIP 69.50*39.00*24.00
LO30-23B05E 30 85-305 88-430 5 6000mA 1 4000VAC Open frame 105.00*50.00*30.00
LO30-23B12E 30 85-305 88-430 12 2500mA 1 4000VAC Open frame 105.00*50.00*30.00
LO30-23B15E 30 85-305 88-430 15 2000mA 1 4000VAC Open frame 105.00*50.00*30.00
LD30-23B48R2 30.2 85-305 100-430 48 630mA 1 4200VAC DIP 69.50*39.00*24.00
LD30-23B09R2 30.6 85-305 100-430 9 3400mA 1 4200VAC DIP 69.50*39.00*24.00
LD30-23B24R2 31.2 85-305 100-430 24 1300mA 1 4200VAC DIP 69.50*39.00*24.00
LO30-23B24E 31.2 85-305 88-430 24 1300mA 1 4000VAC Open frame 105.00*50.00*30.00
LO50-23B03E 33 85-305 88-430 3.3 10A 1 4000VAC Open frame 132.00*50.00*27.10
LM35-23B05 35 85-305 120-430 5 7A 1 4000VAC - -
LM35-23B12 36 85-305 120-430 12 3A 1 4000VAC - -
LM35-23B15 36 85-305 120-430 15 2.4A 1 4000VAC - -
LM35-23B24 36 85-305 120-430 24 1.5A 1 4000VAC - -
LM50-23B05 50 85-305 120-430 5 10A 1 4000VAC - -
LO50-23B05E 50 85-305 88-430 5 10A 1 4000VAC Open frame 132.00*50.00*27.10
LM50-23B12 50.4 85-305 120-430 12 4.2A 1 4000VAC - -
LO50-23B09E 50.4 85-305 88-430 9 5.6A 1 4000VAC Open frame 132.00*50.00*27.10
LO50-23B12E 50.4 85-305 88-430 12 4.2A 1 4000VAC Open frame 132.00*50.00*27.10
LO50-23B24E 50.4 85-305 88-430 24 2.1A 1 4000VAC Open frame 132.00*50.00*27.10
LM50-23B15 51 85-305 120-430 15 3.4A 1 4000VAC - -
LO50-23B15E 51 85-305 88-430 15 3.4A 1 4000VAC Open frame 132.00*50.00*27.10
LO50-23B27E 51.3 85-305 88-430 27 1.9A 1 4000VAC Open frame 132.00*50.00*27.10
LM50-23B36 52.2 85-305 120-430 36 1.45A 1 4000VAC - -
LM50-23B24 52.8 85-305 120-430 24 2.2A 1 4000VAC - -
LM50-23B48 52.8 85-305 120-430 48 1.1A 1 4000VAC - -
LO50-23B48E 52.8 85-305 88-430 48 1.1A 1 4000VAC Open frame 132.00*50.00*27.10
LM75-23B05 70 85-305 120-430 5 14A 1 4000VAC - -
LMF75-23B05 70 85-305 120-430 5 14A 1 4000VAC - -
LM75-23B12 72 85-305 120-430 12 6A 1 4000VAC - -
LMF75-23B12 72 85-305 120-430 12 6A 1 4000VAC - -
LM75-23B15 75 85-305 120-430 15 5A 1 4000VAC - -
LM75-23B55 75 85-305 120-430 55 1.36A 1 4000VAC - -
LMF75-23B15 75 85-305 120-430 15 5A 1 4000VAC - -
LM75-23B36 75.6 85-305 120-430 36 2.1A 1 4000VAC - -
LM75-23B24 76.8 85-305 120-430 24 3.2A 1 4000VAC - -
LM75-23B48 76.8 85-305 120-430 48 1.6A 1 4000VAC - -
LMF75-23B24 76.8 85-305 120-430 24 3.2A 1 4000VAC - -
LMF75-23B48 76.8 85-305 120-430 48 1.6A 1 4000VAC - -
LM100-23B05 90 85-305 120-430 5 18A 1 4000VAC - -
LMF100-23B15 100.5 85-305 120-430 15 6.7A 1 4000VAC - -
LM100-23B36 100.8 85-305 120-430 36 2.8A 1 4000VAC - -
LMF100-23B24 100.8 85-305 120-430 24 4.2A 1 4000VAC - -
LMF100-23B48 100.8 85-305 120-430 48 2.1A 1 4000VAC - -
LM100-23B12 102 85-305 120-430 12 8.5A 1 4000VAC - -
LMF100-23B12 102 85-305 120-430 12 8.5A 1 4000VAC - -
LM100-23B15 105 85-305 120-430 15 7.0A 1 4000VAC - -
LM100-23B24 108 85-305 120-430 24 4.5A 1 4000VAC - -
LM100-23B48 110.4 85-305 120-430 48 2.3A 1 4000VAC - -
LM150-23B12 150 85-305 120-430 12 12.5A 1 4000VAC - -
LM150-23B15 150 85-305 120-430 15 10A 1 4000VAC - -
LMF150-23B12 150 85-305 120-430 12 12.5A 1 4000VAC - -
LMF150-23B15 150 85-305 120-430 15 10A 1 4000VAC - -
LM150-23B55 150.15 85-305 120-431 55 2.73A 1 4000VAC - -
LMF150-23B24 151.2 85-305 120-430 24 6.3A 1 4000VAC - -
LMF150-23B48 153.6 85-305 120-430 48 3.2A 1 4000VAC - -
LM150-23B36 154.8 85-305 120-430 36 4.3A 1 4000VAC - -
LM150-23B24 156 85-305 120-430 24 6.5A 1 4000VAC - -
LM150-23B48 158.4 85-305 120-430 48 3.3A 1 4000VAC - -
LMF200-23B12 200.4 85-305 120-430 12 16.7A 1 4000VAC - -
LMF200-23B15 201 85-305 120-430 15 13.4A 1 4000VAC - -
LMF200-23B24 201.6 85-305 120-430 24 8.4A 1 4000VAC - -
LMF200-23B36 201.6 85-305 120-430 36 5.6A 1 4000VAC - -
LMF200-23B48 201.6 85-305 120-430 48 4.2A 1 4000VAC - -
LMF320-23B04 240 85-305 120-430 4 60A 1 4000VAC - -
-
LMF320-23B05 300 85-305 120-430 5 60A 1 4000VAC - -
LMF320-23B12 320.4 85-305 120-430 12 26.7A 1 4000VAC - -
LMF320-23B36 320.4 85-305 120-430 36 8.9A - 4000VAC - -
-
LMF320-23B15 321 85-305 120-430 15 21.4A 1 4000VAC - -
LMF320-23B27 321.3 85-305 120-430 27 11.9A 1 4000VAC - -
-
LMF320-23B24 321.6 85-305 120-430 24 13.4A 1 4000VAC - -
LMF320-23B48 321.6 85-305 120-430 48 6.7A 1 4000VAC - -
Series
LS01-K3B05SS
LS03-13B03R3
LD03-23B03R2P
LD03-23B03R2
LD03-23B03WR2
LD03-23B05R2
LD03-23B05R2P
LD03-23B05WR2
LD03-23B06R2P
LD03-23B09R2
LD03-23B09R2P
LD03-23B09WR2
LD03-23B12R2
LD03-23B12R2P
LD03-23B12WR2
LD03-23B15R2
LD03-23B15R2P
LD03-23B15WR2
LD03-23B24R2
LD03-23B24R2P
LD03-23B24WR2
LS03-13B05R3
LS03-13B09R3
LS03-13B12R3
LS03-13B15R3
LS03-13B24R3
LS05-13B03R3
LS05-13B03R3-F
LD05-23B03R2
LD05-23B05R2
LD05-23B09R2
LD05-23B12R2
LD05-23B15R2
LD05-23B24R2
LS05-13B05R3
LS05-13B05R3-F
LS05-13B09R3
LS05-13B09R3-F
LS05-13B12R3
LS05-13B12R3-F
LS05-13B15R3
LS05-13B15R3-F
LS05-13B24R3
LS05-13B24R3-F
LO10-13B03
LS10-13B03R3
LD10-23B03R2
LO10-23D0524-02E
LM15-23B03
LO15-23B03E
LS15-13B03SS
LS15-13B03SS-F
LD10-23B05R2
LD10-23B09R2
LD10-23B12R2
LD10-23B15R2
LD10-23B24R2
LO10-13B05
LO10-13B09
LO10-13B12
LO10-13B15
LO10-13B24
LS10-13B05R3
LS10-13B09R3
LS10-13B12R3
LS10-13B15R3
LS10-13B24R3
LD15-23B03R2
LS15-13B05SS
LS15-13B05SS-F
LD20-23B03R2
LD15-23B05R2
LD15-23B09R2
LD15-23B12R2
LD15-23B15R2
LD15-23B24R2
LM15-23B05
LM15-23B15
LM15-23B24
LO15-23B05E
LO15-23B15E
LO15-23D0524-02E
LS15-13B09SS
LS15-13B09SS-F
LS15-13B12SS
LS15-13B12SS-F
LS15-13B15SS
LS15-13B15SS-F
LS15-13B24SS
LS15-13B24SS-F
LM15-23B48
LM15-23B12
LO15-23B12E
LO15-23B24E
LD30-23B03R2
LM25-23B03
LO30-23B03E
LD20-23B05R2
LD20-23B09R2
LD20-23B12R2
LD20-23B15R2
LD20-23B24R2
LM25-23B05
LM25-23B12
LM25-23B15
LM25-23B24
LM25-23B48
LD30-23B05R2
LD30-23B12R2
LD30-23B15R2
LO30-23B05E
LO30-23B12E
LO30-23B15E
LD30-23B48R2
LD30-23B09R2
LD30-23B24R2
LO30-23B24E
LO50-23B03E
LM35-23B05
LM35-23B12
LM35-23B15
LM35-23B24
LM50-23B05
LO50-23B05E
LM50-23B12
LO50-23B09E
LO50-23B12E
LO50-23B24E
LM50-23B15
LO50-23B15E
LO50-23B27E
LM50-23B36
LM50-23B24
LM50-23B48
LO50-23B48E
LM75-23B05
LMF75-23B05
LM75-23B12
LMF75-23B12
LM75-23B15
LM75-23B55
LMF75-23B15
LM75-23B36
LM75-23B24
LM75-23B48
LMF75-23B24
LMF75-23B48
LM100-23B05
LMF100-23B15
LM100-23B36
LMF100-23B24
LMF100-23B48
LM100-23B12
LMF100-23B12
LM100-23B15
LM100-23B24
LM100-23B48
LM150-23B12
LM150-23B15
LMF150-23B12
LMF150-23B15
LM150-23B55
LMF150-23B24
LMF150-23B48
LM150-23B36
LM150-23B24
LM150-23B48
LMF200-23B12
LMF200-23B15
LMF200-23B24
LMF200-23B36
LMF200-23B48
LMF320-23B04
LMF320-23B05
LMF320-23B12
LMF320-23B36
LMF320-23B15
LMF320-23B27
LMF320-23B24
LMF320-23B48

Buy Online

Buy Online

0

Sample

Request

Return
Prompt
Please fill out correctly!
Submit successfully!

Successful

This website uses cookies able to make your time on our site a lot less crummy and a much richer experience. For more information, please visit our Privacy Policy.

close
Privacy Policy

Contact

close
MORNSUN distributors for part ""
Distributor Stock Qty
NAC Group, Inc. 0 Buy online
Edge Electronics 0 Buy online
DigiKey Electronics - Buy online

Find the right contact in your region

Local distributorsContact us
close
  • File Name
