Open Frame CAN Transceivers TDx21DCANx Series & TDx22DCAN Series in Compact Size

          MORNSUN recently announced cost-effective, compact size CAN transceiver TDx21DCANx series and TDx22DCAN series, to assist fast signal response in industries of power grid, industrial control and instrumentation, etc. TDx21DCANx series and TDx22DCAN series are designed with excellent performance, manufacturing process and reliability, as follows:


(1) Excellent performance:

a) All series provide excellent EMC performance.
b) All series provide electrical isolation of 3000VDC.
c) Designed with advanced technology similar to MORNSUN fixed R3 DC/DC Converters and highly integrated internal device, the series greatly improve in manufacturing process and reliability.

(2) Reliable manufacturing process:

a) TDx21DCANx series apply SMT to enhance product automation and reliability.
b) Simply achieve plug-to-SMD process: Single output TDx21DCANx series are in open frame using pin terminals to match corresponding female header, so that customers easily achieve automated processing, maintenance and replacement at the same time.

(3) Patent protection.

(4) Dual channel isolation: TDx22DCAN series provide dual channel isolation and dual signal outputs which mutually isolate from each other.



Open Frame CAN Transceivers TDx21DCANx Series & TDx22DCAN Series in Compact Size                    Open Frame CAN Transceivers TDx21DCANx Series & TDx22DCAN Series in Compact Size

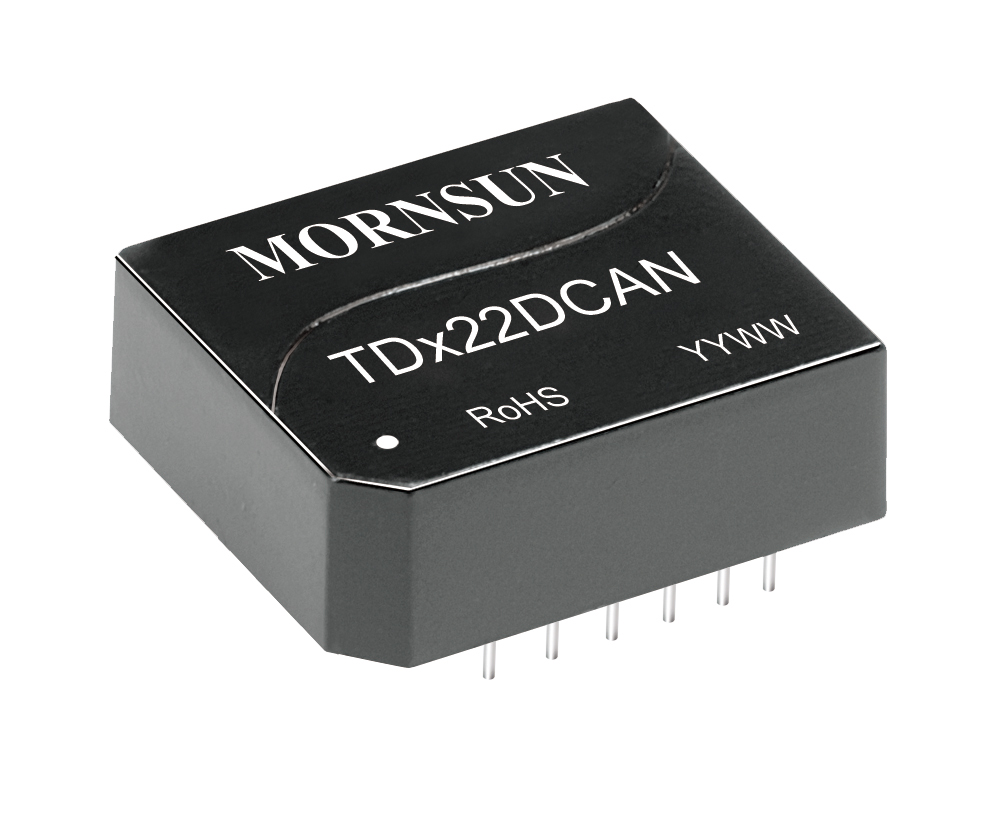

       TDx21DCANx                                                        TDx22DCAN


Features:

a) Integrated power supply, bus isolation and ESD protection in one module
b) Isolation: TDx21DCANx:Two- port isolation (3.0kVDC) (input and output are mutually isolated)
TDx22DCAN: Two- port isolation (2.5kVDC) /Channel isolation (1.5kVDC) (input-output and output-output are mutually isolated)
c) Baud rate up to 1Mbps
d) Connect up to 110 nodes on one bus
e) Operating temperature range:-40℃ to +105℃
f) Compact size, DIP8 package

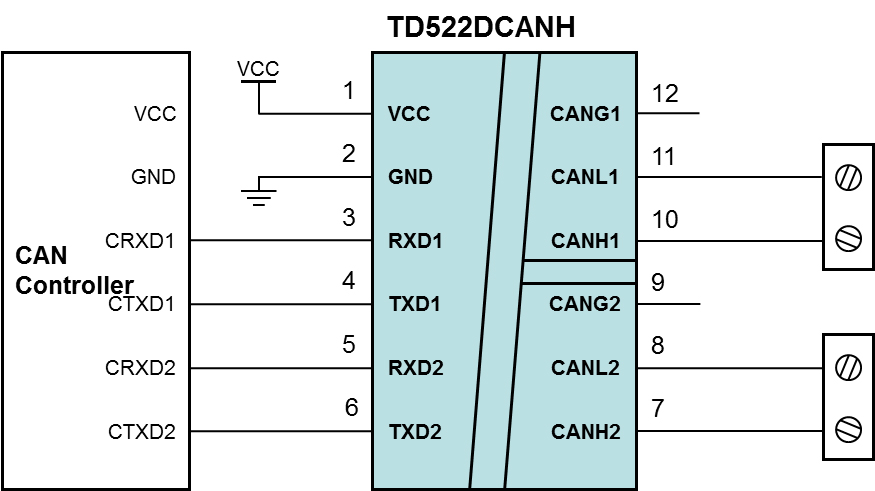

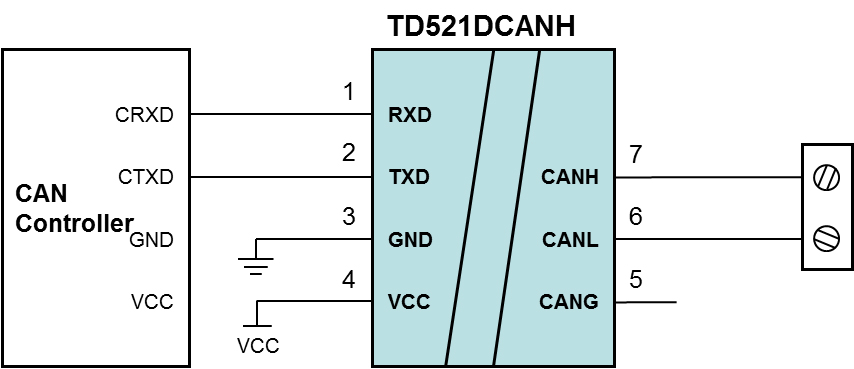

Application:


 Open Frame CAN Transceivers TDx21DCANx Series & TDx22DCAN Series in Compact Size


Open Frame CAN Transceivers TDx21DCANx Series & TDx22DCAN Series in Compact Size


Please refer to the technical manual for specific product parameters:

Series Integrated Power Transmission Rate(bps) Vin(VDC) Nodes Number Isolation Package Features Footprint & 3D Certification Datasheet Sample Buy
TD321DCAN 5K~1M 3.3 110 3000VDC DIP8 Open-frame
TD321DCANH 40K~1M 3.3 110 3000VDC DIP8 High rate
TD322DCAN 40K~1M 3.3 110 2500VDC DIP Duplex isolation
TD521DCAN 5K~1M 5 110 3000VDC DIP8 Open-frame
TD521DCANH 40K~1M 5 110 3000VDC DIP8 High rate
TD522DCAN 40K~1M 5 110 2500VDC DIP Duplex isolation
