High-voltage Output DC/DC Converter - HO Series

High-voltage Output DC/DC Converter - HO Series.jpg

Introduction

MORNSUN launched the HO series DC/DC converter to meet the rising demand for ultrasonic technology devices.



This product series is specifically designed for applications requiring high voltages and output voltage stability, e.g. industrial control, medical chemical, scientific experiments, etc. The output voltage of these series is up to 6000+VDC and positive or negative voltage outputs are available. If needed, you could contact us for a customization service.


Applications

HO series products are widely used in high voltages fields such as ultrasonic flaw detector, x-ray machine, spectral analyzer, electrophoretic, mass spectrum, light spectra, electron beam, ion beam, non-destructive testing, high voltage bias, photo-multiplier tubes, and avalanche diodes.

HO series products are widely used in high voltages fields.jpg


Features

  • Ultra-low power consumption

  • Output voltage with high stability, low time coefficient and temperature coefficient

  • Wide operating temperature range: -45℃ to 105℃

  • Continuous output voltage with linear adjustable function

  • Input reverse polarity protection, control voltage over-voltage protection

  • Output short-circuit protection, over-current protection


PS: For more product details and applications please contact our FAE team: fae801@mornsun.cn


Selection guide

MORNSUN HO1 series high-voltage output power supply has been maturely used in various applications including photomultiplier tube, avalanche diode, high-voltage capacitor charging, high-voltage electric field, high-voltage pulse, etc.

The products can be divided into two categories of ≤2W and 3-100W.

The products can be divided into two categories of ≤2W and 3-100W.jpg


Feature product

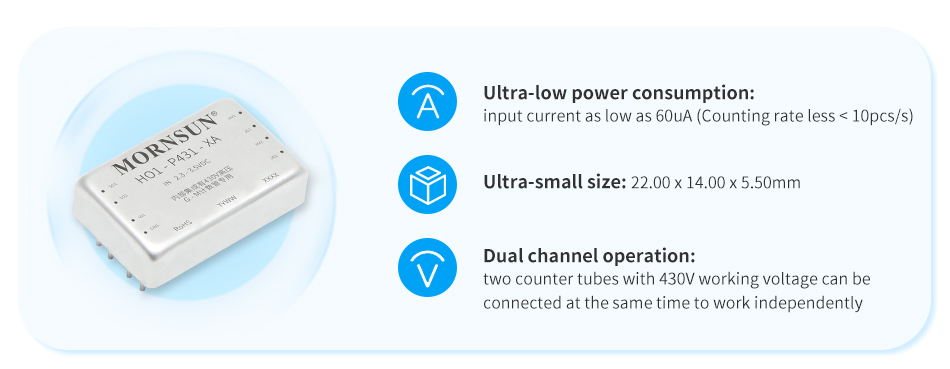

HO1-P431-XA is a counter front module specialized for G-M counter and can be used in the related equipment of nuclear radiation detection and measurement. It integrates a 430V DC/DC high-voltage power supply module and a two-way counter pulse amplification filter shaping circuit, which can be connected with two counter tubes at the same time. It is very suitable for a wide range of application scenarios that need high dose rate and low dose rate counter tubes, and can also be applied to a single counter tube.

Feature product HO1-P431-XA.jpg


* For detailed information please refer to the related datasheet, product news is for reference only.

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
HO1-P421H-1C 0.42 12 420 1 DIP 45.50*23.00*12.50
-
HO1-N102V-3F 0.625-3 24 -1000 1 DIP 45.50*23.00*12.50
-
HO1-N1251V-0.5C 0.625-3 12 -1250 1 DIP 45.50*23.00*12.50
-
HO1-N1251V-0.5F 0.625-3 24 -1250 1 DIP 45.50*23.00*12.50
-
HO1-N1501V-1.2F 0.625-3 24 -1500 1 DIP 45.50*23.00*12.50
-
HO1-N1801V-1F 0.625-3 24 -1800 1 DIP 45.50*23.00*12.50
-
HO1-N202V-0.5B 0.625-3 5 -2000 1 DIP 45.50*23.00*12.50
-
HO1-N202V-1C 0.625-3 12 -2000 1 DIP 45.50*23.00*12.50
-
HO1-N601V-3C 0.625-3 12 -600 1 DIP 45.50*23.00*12.50
-
HO1-P1251V-0.5C 0.625-3 12 1250 1 DIP 45.50*23.00*12.50
-
HO1-P1251V-0.5F 0.625-3 24 1250 1 DIP 45.50*23.00*12.50
-
HO1-P202V-0.5B 0.625-3 5 2000 1 DIP 45.50*23.00*12.50
-
HO1-P202V-1C 0.625-3 12 2000 1 DIP 45.50*23.00*12.50
-
HO1-P601V-3C 0.625-3 12 600 1 DIP 45.50*23.00*12.50
-
HO1-N201-5B 1 5 -200 1 DIP 31.60*20.30*10.20
-
HO1-P201-5C 1 12 200 1 DIP 31.60*20.30*10.20
-
HO1-N602-0.25C 1.5 12 -6000~0 1 DIP 38.10*38.10*16.00
-
HO1-P602-0.25C 1.5 12 0~6000 1 DIP 38.10*38.10*16.00
-
HO1-PN302V-0.3C 1.8 12 ±3000 2 DIP 46.00*25.70*15.50
-
HO1-PN202-0.5C 2 12 ±2000 2 DIP 45.00*35.00*12.50
-
HO1-P401V-10C 4 12 400 1 DIP 45.50*23.00*12.50 - -
HO1-P102-10F 10 24 1000 1 DIP 62.00*45.00*22.50
-
HO1-P102-4F 10 24 1000 1 DIP 62.00*45.00*22.50
-
HO1-P102-8F 10 24 1010 1 DIP 62.00*45.00*22.50
-
HO1-P501LD-50C 25 12 500 1 DIP 74.60*38.10*26.00
-
