Current transducer TLA300S features No insertion loss and 7kV withstand voltage

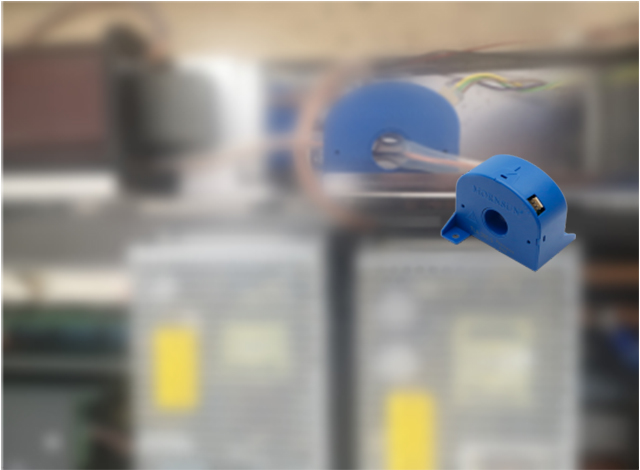

Current transducer TLA300S features No insertion loss and 7kV withstand voltage.jpg


Introduction of Current transducer TLA300S

In the power supply system, large working current occurs in abnormal condition will affect the power supply and even damage the whole system in serious cases. Therefore, in order to ensure the safe and stable operation of the system, a current transducer is often used to monitor the status of working current, isolate and transmit the current signal to the main control system. When the power supply is working normally, it can monitor the status of the power supply in real time. When the power supply current is abnormal, it can feed back current signal to the main control system timely. The main control system recognizes the anomaly, sends a signal to turn off the power supply and sends out an alarm signal to ensure the safe and reliable operation of the system timely.


Based on the application of electroplating power supply, MORNSUN has developed the Hall-type current transducer TLA300-S with high accuracy, fast response and high reliability using Hall sampling, closed-loop compensation, zero residual magnetism and structural optimization. TLA300-S can accurately measure DC flux, AC flux and excitation flux within the full bandwidth and effectively collect the measured current signal to facilitate the monitoring, acquisition and protection of the user system. TLA300-S features a bandwidth up to 100KHz, ensures measurement accuracy and zero insertion loss.


Application of Current transducer TLA300S

TLA300-S adopts disk structure, which is convenient to fix with bolts, and can be widely used in welding power supply, UPS power supply, battery power supply, switching power supply, motion control, AC frequency conversion and other fields.


Current transducer TLA300S | No insertion loss | 7kV withstand voltage.jpg

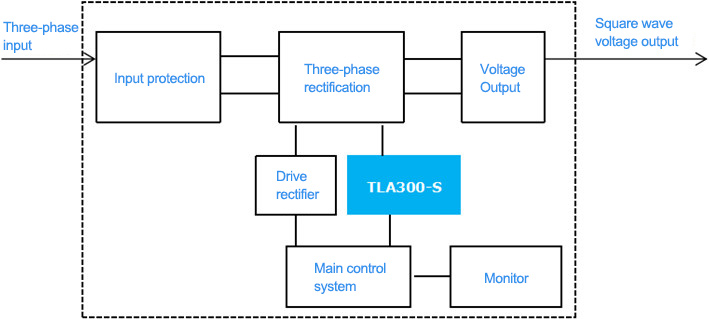

Typical application 1: Welding power supply

Current transducer TLA300S | No insertion loss | 7kV withstand voltage.jpg

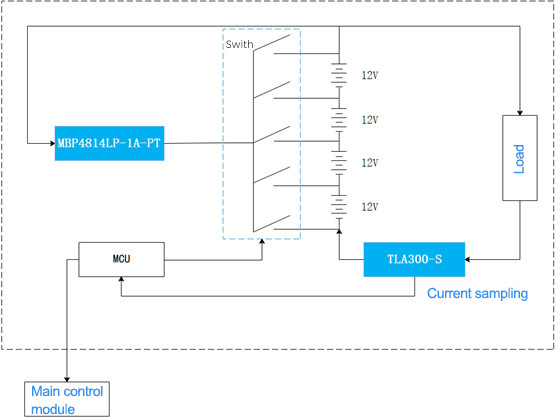

Typical application 2: Battery equalization system


Current transducer TLA300S | No insertion loss | 7kV withstand voltage.jpg


Features of Current transducer TLA300S

●  Linearity up to 0.1%

●  Accuracy up to 0.8%

●  Bandwidth up to 100kHz

●  Response time of 1μs

●  Measuring range of 0~±300A,max measuring overload of 600A

●  No insertion loss

●  Power frequency withstand voltage up to 7kV

●  Hall effect closed-loop compensation

●  High immunity to the voltage symmetry of the power supply




* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Supply Voltage(VDC) Measurement Package Turns ratio Primary nominal rated RMS current Turns ratio Footprint & 3D Markings Datasheet Sample Buy
TLA100-S ± 12/±15 Direct current Disc type (bolt fixed) 1:2000 100A 1:2000
TLA1000-S ± 12/±15 Direct current Disc type (bolt fixed) - - -
-
TLA200-S ± 12/±15 Direct current Disc type (bolt fixed) 1:2000 200A 1:2000
TLA300-S ± 12/±15 Direct current Disc type (bolt fixed) 1:2000 300A 1:2000
TLA50-S ± 12/±15 Direct current Disc type (bolt fixed) 1:2000 50A 1:2000
TLA500-S ± 12/±15 Direct current Disc type (bolt fixed) 1:2000 500A 1:2000
TLA800-S ± 12/±15 Direct current Disc type (bolt fixed) - - -
-
