350W High Power Density DC/DC Power Converter, the Upgraded String-powered Solution for Solar Tracker - PV350-29Bxx (TR) series

MORNSUN 350W high power density DC/DC power converter, the upgraded String-powered solution for Solar Tracker - PV350-29Bxx (TR) series.jpg

With the technology breakthrough, MORNSUN launched the upgraded PV350-29Bxx (TR) series with a higher power, better performance, and higher efficiency based on the hot-selling series PV200-29Bxx. This series has the features of ultra-high voltage input, wide operating temperature, high efficiency, and small size, etc. The safety design complies with CSA/CE/UL requirements, which is satisfying the high-reliability requirements of customers, and these new TR series are with a 5-year warranty.



Advantages

1. The upgraded PV String-powered power solution

The wide input voltage of 300-1500VDC (up to 1700VDC  for the duration of 10s), which is taking power from high-voltage Strings BUS directly, greatly simplifies the power system design:

① No need for additional PV panels, getting more effective power generation space and improving the economic benefits;

② No need for additional power lines, easy to install and maintain, saving cost of the whole system.


2. Greatly reduction of the costs of the whole solar tracking system

The 350W high power density PV350 module allows a single Tracker to drive more PV panels, reducing the number of Trackers required per megawatt and reducing overall costs by an estimated 30%.


3. High insulation and high reliability

① Isolation withstands voltage 4000VAC: Reinforced insulation between the primary and secondary sides, the withstand voltages of primary-ground and secondary-ground are 4000VAC.

② multiple protections: Input under-voltage protection, reverse input voltage protection, over-temperature protection, and output short circuit, output over-current, as well as output over-voltage protection.

③ The product meets UL1741/EN62109 standards and can be operating up to 5000m altitudes, safe and reliable.


4. Wide operating temperature range, ultra-low power consumption, high efficiency

① Operating temperature range: -40℃ to +85℃.

② Efficiency up to 92%.


5. Multiple patented technology

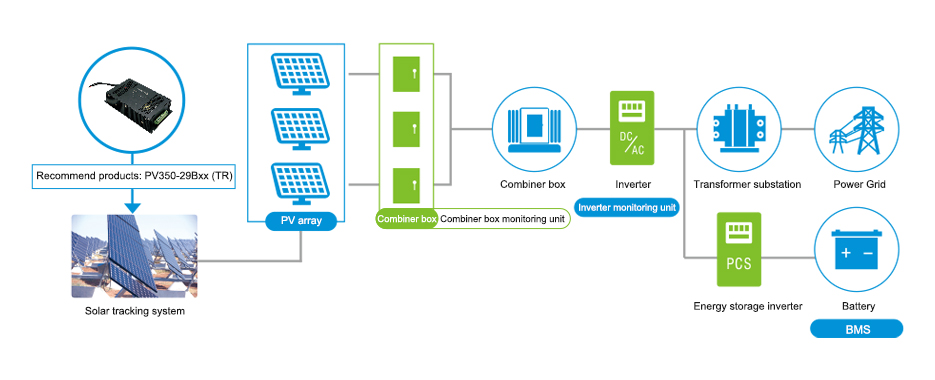

Applications

It can be widely used in the PV industry such as combiner box, Solar tracking system, central inverter, string inverter, PV energy storage, PV water pumping system, etc.


MORNSUN PV350-29Bxx (TR) Application.jpg

Features

  • Ultra-wide input voltage range of 300 - 1500VDC,

  • Input voltage up to 1700VDC (Transient, duration: 10s)

  • High isolation test voltage of 4000VAC

  • High efficiency, low ripple & noise

  • Input under-voltage protection, reverse input voltage protection, over-temperature protection, output short circuit, over-current, over-voltage protection

  • The safety design complies with CSA/CE/UL requirements

  • Industrial grade operating temperature -40℃ to +85℃

  • Constant current, the output voltage can be adjusted finely via ADJ

  • High reliability, long lifespan

  • Meet 5000m altitude application


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
PV350-29B24 350.4 300-1500 24 1 Chassis 215.00*125.00*50.00
PV350-29B24-TR 350.4 300-1500 24 1 Chassis 215.00*125.00*50.00
-
PV350-29B28 350 300-1500 28 1 Chassis 215.00*125.00*50.00
PV350-29B28-TR 350 300-1500 28 1 Chassis 215.00*125.00*50.00
-
PV350-29B32 350.4 300-1500 32 1 Chassis 215.00*125.00*50.00
-
PV350-29B32-TR 350.4 300-1500 32 1 Chassis 215.00*125.00*50.00
-
