15-45W open-frame multi-output AC-DC power supply-- LOxx-10A/C/D series

MORNSUN 15-45W open-frame multi-outputs AC-DC power supply LOxx-10ACD.jpg


Introdution:

Since the launch of the high power density, economical open-frame single-output AC/DC converter LOxx-10Bxx series in 2019, MORNSUN continues to extend its multiple-output products. The new 15W LO15-10A/Dxx series was released this July, and the power of this series covers 15W, 30W, 45W.


Based on technical and technological innovation, the LO15 products have better performance and smaller size, saving layout space and cost for the users.

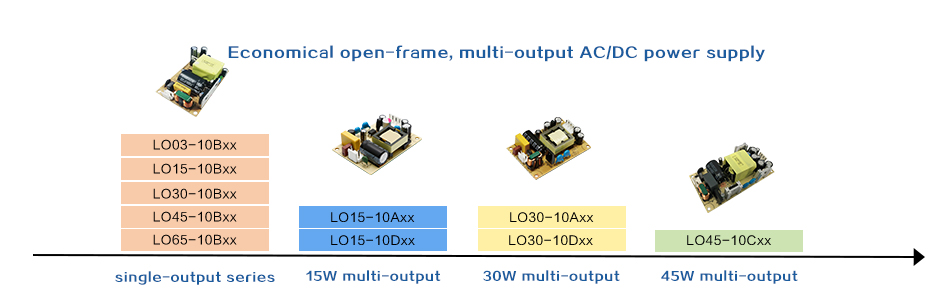

LO open-frame multi-output series:

LO15-10Axx series provides non-isolated dual-output of +/12V, +/-15V

LO15-10Dxx series provides isolated dual-output of +5/+5V, +5/+12V

LO30xx-10A series provides non-isolated dual-output of outputs of +/12V, +/-15V

LO30xx-10D series provides isolated dual-output of +5/+5V, +5/+12V, +5/+24V

LO45xx-10C series provides triple-output of +5/+12V/-5V, +5/+12V/-12V, +5/+15V/-15V


MORNSUN 15W 30W 45W open-frame LOxx-10A/C/D.jpg



1)Compact size

Multi-output products can effectively save layout space and improve the flexible design

LO15-10A/D series:63.5*45.7*21 mm

LO30-10A/D series:76.2*50.8*28 mm

LO45-10C series:102*51*27.5 mm


2)Operating temperature range:

-25℃ to +70℃

No derating at full load: -10℃ to 50℃


3)High reliability

Comply with CE/CB/UL62368, with output short circuit, over-current, over-voltage protections


4)EMC performance

EMI meets CISPR32 / EN55032 CLASS B

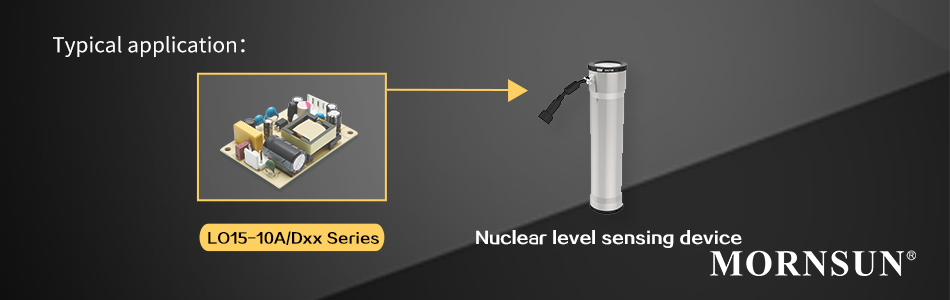

Application:

It can be widely used in communication, industrial, commercial, and civil applications.


MORNSUN 15W 35W 45W LO15-10A/Dxx series.jpg


Features

●  Universal input voltage: 85-264 VAC and 100 - 370VDC

  Operating temperature range: -25℃ to +70℃

  Output short circuit, over-current, over-voltage protections

  High reliability, regulated output, low output ripple & noise

  EMI performance meets CISPR32 / EN55032 CLASS B

  Designed to meet UL/EN/IEC62368, IEC/EN60335 standards


Products

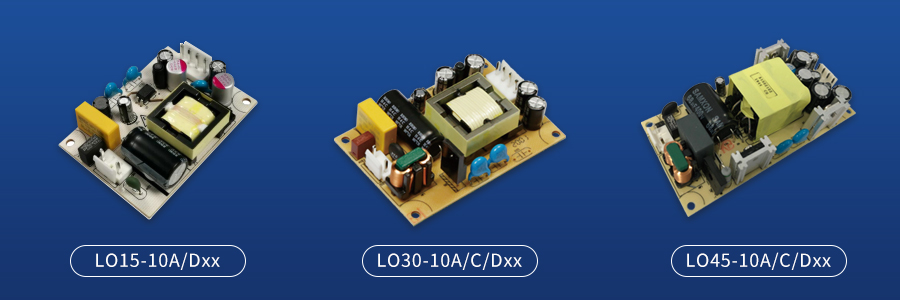

MORNSUN LO15-10A/Dxx LO30-10A/C/Dxx LO45-10A/C/Dxx.jpg





* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LO15-10A12 15 85-264 100-370 12,-12 625mA 2 3000VAC Open frame 63.50*45.70*21.00
LO15-10A15 15 85-264 100-370 15,-15 500mA 2 3000VAC Open frame 63.50*45.70*21.00
LO15-10D0505-15 15 85-264 100-370 5,5 1500mA 2 3000VAC Open frame 63.50*45.70*21.00
LO15-10D0512-07 15 85-264 100-370 5,12 1260mA,720mA 2 3000VAC Open frame 63.50*45.70*21.00
LO15-10D0524-05 15 85-264 100-370 5,24 720mA,480mA 2 3000VAC Open frame 63.50*45.70*21.00
