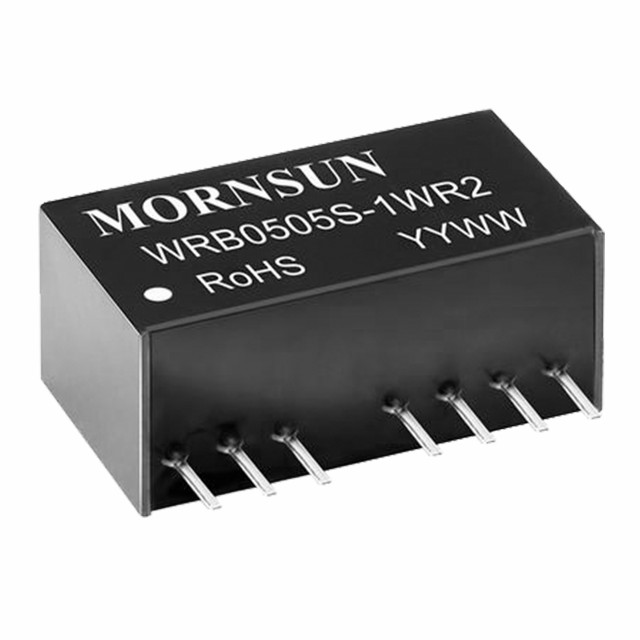

WRB_S-1WR2

Features

WRB_S-1WR2 series are isolated 1W DC-DC products with 2:1 input voltage and conventional voltage output. The product has a relatively compact SIP-8 plastic package, and features high efficiency, operating temperature of -40℃ to +85℃, remote control, and continuous short-circuit protection. The smaller size and fine cost design make the converter an ideal solution in communication, instruments, and industrial electronics applications.

WRB_S-1WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
WRB0503S-1WR2 1 4.5~9 3.3 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB0503S-1WR2 - sample request buy on line
WRB0505S-1WR2 1 4.5~9 5 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB0505S-1WR2 - sample request buy on line
WRB0512S-1WR2 1 4.5~9 12 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB0512S-1WR2 - sample request buy on line
WRB0515S-1WR2 1 4.5~9 15 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB0515S-1WR2 - sample request buy on line
WRB0524S-1WR2 1 4.5~9 24 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB0524S-1WR2 - sample request buy on line
WRB1203S-1WR2 1 9~18 3.3 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB1203S-1WR2 - sample request buy on line
WRB1205S-1WR2 1 9~18 5 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB1205S-1WR2 - sample request buy on line
WRB1209S-1WR2 1 9~18 9 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB1209S-1WR2 - sample request buy on line
WRB1212S-1WR2 1 9~18 12 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB1212S-1WR2 - sample request buy on line
WRB1215S-1WR2 1 9~18 15 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB1215S-1WR2 - sample request buy on line
WRB1224S-1WR2 1 9~18 24 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB1224S-1WR2 - sample request buy on line
WRB2403S-1WR2 1 18~36 3.3 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB2403S-1WR2 - sample request buy on line
WRB2405S-1WR2 1 18~36 5 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB2405S-1WR2 - sample request buy on line
WRB2412S-1WR2 1 18~36 12 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB2412S-1WR2 - sample request buy on line
WRB2415S-1WR2 1 18~36 15 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB2415S-1WR2 - sample request buy on line
WRB2424S-1WR2 1 18~36 24 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB2424S-1WR2 - sample request buy on line
WRB4803S-1WR2 1 36~75 3.3 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB4803S-1WR2 - sample request buy on line
WRB4805S-1WR2 1 36~75 5 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB4805S-1WR2 - sample request buy on line
WRB4812S-1WR2 1 36~75 12 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB4812S-1WR2 - sample request buy on line
WRB4815S-1WR2 1 36~75 15 1 1500 SIP 22.0*9.5*12.0 3D MODEL CE - WRB4815S-1WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
WRB0503S-1WR2
WRB0505S-1WR2
WRB0512S-1WR2
WRB0515S-1WR2
WRB0524S-1WR2
WRB1203S-1WR2
WRB1205S-1WR2
WRB1209S-1WR2
WRB1212S-1WR2
WRB1215S-1WR2
WRB1224S-1WR2
WRB2403S-1WR2
WRB2405S-1WR2
WRB2412S-1WR2
WRB2415S-1WR2
WRB2424S-1WR2
WRB4803S-1WR2
WRB4805S-1WR2
WRB4812S-1WR2
WRB4815S-1WR2
