3-400W DC/DC converter VCB/VCF Series support the development of 5G industry

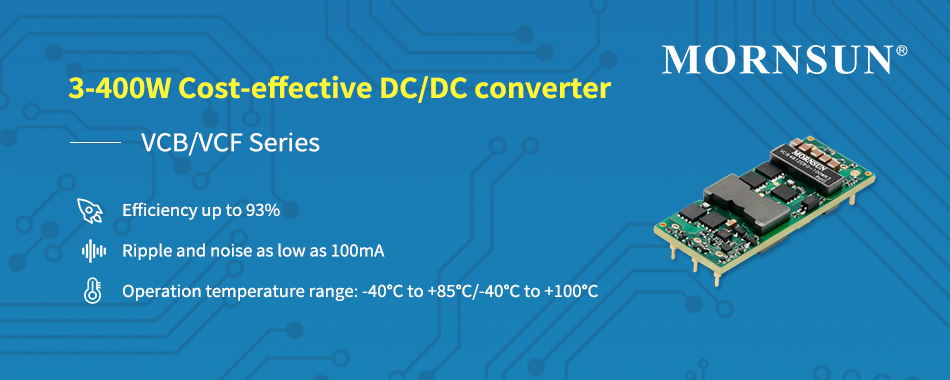

MORNSUN 3-400W DC/DC converter VCB/VCF.jpg


The newly cost-effective DC/DC converter VCB/VCF Series features superior performance, small size, and high power density to support the development of the 5G industry.


Superior performance and high reliability

These series meet IEC/UL/EN62368 and DOSA standards, with a wide operating temperature range of -40℃ to +100℃, excellent performance, isolation voltage of 1500VDC, ripple and noise as low as 100mV, efficiency up to 93%. Its light-load (10%) efficiency is as high as 85%, and the no-load loss is as low as 0.96W, which can greatly reduce the standby power consumption of the whole system.


Adaptable to different application environments with complete protections

In addition, these modules are painted with conformal coating to protect the circuit board from the erosion of bad conditions. And its multiple protections of input under-voltage, over-current, short-circuit, etc. can effectively prevent unnecessary losses caused by abnormal operation of customer systems or equipment.

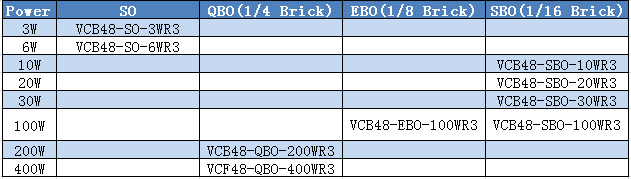

MORNSUN DC/DC converter VCB/VCF table.png


Application

The modules can be widely used in industrial control, electric power, instrumentation, telecommunication, and others.

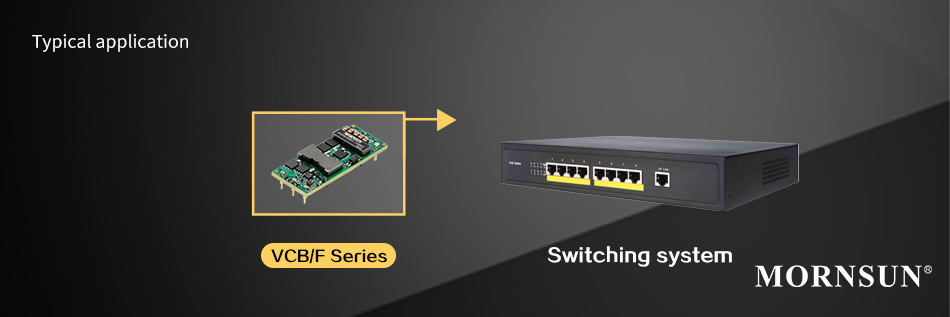

Typical application: optical module switching system, server, base station, relay system, etc.


MORNSUN DC/DC converter VCB/VCF.jpg


Features

● Operating temperature range: -40℃ to +85℃/-40℃ to +100℃.

● Efficiency up to 93%

● Ripple and noise as low as 100mV

● EMI performance meets CISPR32/EN55032 ClassA.

● Meets IEC/UL/EN62368 and DOSA standards

Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
VCB4803SBO-20WR3 20 48(36-75) 3.3 1 1500 DIP 33.02*22.86*12.60
VCB4805EBO-100WFR3 100 48(36-75) 5 1 1500 DIP(With heatsink) 58.42*22.86*12.7 - -
VCB4805EBO-100WR3 100 48(36-75) 5 1 1500 DIP 58.42*22.86*9.69
VCB4805QBO-200WR3 200 48(36-75) 5 1 1500 DIP 57.9*36.80*10.05
-
VCB4805SBO-10WR3 10 48(36-75) 5 1 1500 DIP(without housing) 33.02*22.86*10.27
VCB4805SBO-20WR3 20 48(36-75) 5 1 1500 DIP 33.02*22.86*12.60
VCB4805SBO-30WR3 30 48(36-75) 5 1 1500 DIP(without housing) 33.02*22.86*9.18
VCB4805SO-3WR3 3 48(36-75) 5 1 1500 SIP 22.00*8.20*12.80
VCB4805SO-6WR3 6 48(36-75) 5 1 1500 SIP 22.00*12.80*8.20
VCB4812EBO-100WFR3 100 48(36-75) 12 1 1500 DIP(With heatsink) 58.42*22.86*12.7 - -
VCB4812EBO-100WR3 100 48(36-75) 12 1 1500 DIP 58.42*22.86*9.69
VCB4812QBO-200WR3 200 48(36-75) 12 1 1500 DIP 57.9*36.80*10.05
-
VCB4812SBO-10WR3 10 48(36-75) 12 1 1500 DIP(without housing) 33.02*22.86*10.27
VCB4812SBO-20WR3 20 48(36-75) 12 1 1500 DIP 33.02*22.86*12.60
VCB4812SBO-30WR3 30 48(36-75) 12 1 1500 DIP(without housing) 33.02*22.86*9.18
VCB4812SO-3WR3 3 48(36-75) 12 1 1500 SIP 22.00*8.20*12.80
VCB4812SO-6WR3 6 48(36-75) 12 1 1500 SIP 22.00*12.80*8.20
VCB4815EBO-100WFR3 100 48(36-75) 15 1 1500 DIP(With heatsink) 58.42*22.86*12.7 - -
VCB4815EBO-100WR3 100 48(36-75) 15 1 1500 DIP 58.42*22.86*9.69
VCB4815QBO-200WR3 200 48(36-75) 15 1 1500 DIP 57.9*36.80*10.05
-
VCB4815SBO-10WR3 10 48(36-75) 15 1 1500 DIP(without housing) 33.02*22.86*10.27
VCB4815SBO-20WR3 20 48(36-75) 15 1 1500 DIP 33.02*22.86*12.60
VCB4815SBO-30WR3 30 48(36-75) 15 1 1500 DIP(without housing) 33.02*22.86*9.18
VCB4815SO-3WR3 3 48(36-75) 15 1 1500 SIP 22.00*8.20*12.80
VCB4815SO-6WR3 6 48(36-75) 15 1 1500 SIP 22.00*12.80*8.20
VCB4824EBO-100WFR3 100 48(36-75) 24 1 1500 DIP(With heatsink) 58.42*22.86*12.7 - -
VCB4824EBO-100WR3 100 48(36-75) 24 1 1500 DIP 58.42*22.86*9.69
VCB4824QBO-200WR3 200 48(36-75) 24 1 1500 DIP 57.9*36.80*10.05
-
VCB4824SBO-10WR3 10 48(36-75) 24 1 1500 DIP(without housing) 33.02*22.86*10.27
VCB4824SBO-20WR3 20 48(36-75) 24 1 1500 DIP 33.02*22.86*12.60
VCB4824SBO-30WR3 30 48(36-75) 24 1 1500 DIP(without housing) 33.02*22.86*9.18
VCB4824SO-3WR3 3 48(36-75) 24 1 1500 SIP 22.00*8.20*12.80
VCB4824SO-6WR3 6 48(36-75) 24 1 1500 SIP 22.00*12.80*8.20
VCB4828EBO-100WFR3 100 48(36-75) 28 1 1500 DIP(With heatsink) 58.42*22.86*12.7 - -
VCB4828EBO-100WR3 100 48(36-75) 28 1 1500 DIP 58.42*22.86*9.69
VCB4828SBO-20WR3 20 48(36-75) 28 1 1500 DIP 33.02*22.86*12.60
VCB4828SBO-30WR3 30 48(36-75) 28 1 1500 DIP(without housing) 33.02*22.86*9.18
-
