1000W AC/DC Enclosed Switching Power Supply - LM1000-20Bxx Series

1000W AC/DC Enclosed Switching Power Supply - LM1000-20Bxx Series.jpg

MORNSUN has released a new addition to its AC/DC enclosed power supplies product LM family, which covers the power of 15-1000W - LM1000-20Bxx. This cost-effective AC/DC SMPS can be used in various applications.



Advantages

1.    Compact size & High efficiency

Dimension as small as: 187.5*127*40.5mm

High efficiency up to 92%@24V


2.    High reliability

Wide input voltage range: 90-264VAC/130-390VDC

Operating temperature range: -30℃ to 70℃, start-up @-40℃

Low harmonic current

Operating altitude up to 5000m

EMI performance meets CISPR32/EN55032 CLASS A

High isolation voltage up to 4000VAC

Output short circuit, over-current, over-voltage, and over-temperature protections


3.    Digital design, easy to use

Remote ON/OFF

DC OK function

LED indicates the power on



Applications

These products can be widely used in industrial control, lighting, electric power, security, communication, smart home, and other fields.

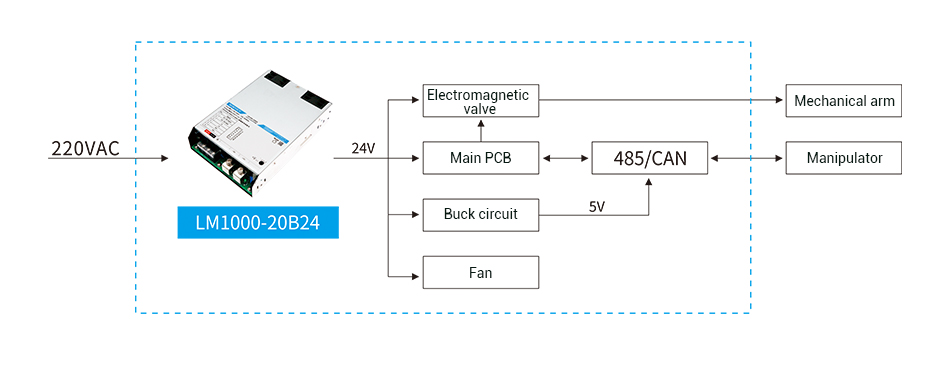

Typical application is industrial control.jpg


Features

  • Universal wide input voltage: 90 - 264VAC or 130 - 390VDC

  • Compact size: 187.5*127*40.5mm

  • Operating temperature range: -30℃ to +70℃

  • High isolation voltage of 4000VAC

  • Output short circuit, over-current, over-voltage, and over-temperature protections

  • Operating altitude up to 5000m

  • Safety according to UL/EN/BS EN62368 standards


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout Efficiency(%) Isolation Footprint & 3D Markings Datasheet Sample
LM1000-20B36 997.2 90-264 130-390 36 27.7A 92 4000VAC
LM1000-20B48 998.4 90-264 130-390 48 20.8A 92 4000VAC
LM1000-20B54 999 90-264 130-390 54 18.5A 92 4000VAC
LM1000-20B12 999.6 90-264 130-390 12 83.3A 92 4000VAC
LM1000-20B42 999.6 90-264 130-390 42 23.8A 92 4000VAC
LM1000-20B15 1000.5 90-264 130-390 15 66.7A 92 4000VAC
LM1000-20B24 1000.8 90-264 130-390 24 41.7A 92 4000VAC
