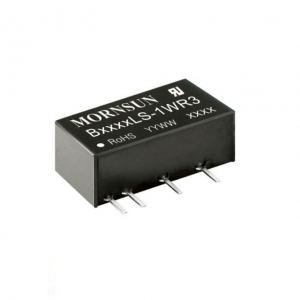

B_LS-1WR3
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
B_LS-1WR3 series are specially designed for applications where an(two) isolated voltage is required in a distributed power supply system. They are suitable for: pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| B0503LS-1WR3 | 1 | 5 | 3.3 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B0505LS-1WR3 | 1 | 5 | 5 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B0509LS-1WR3 | 1 | 5 | 9 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B0512LS-1WR3 | 1 | 5 | 12 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B0515LS-1WR3 | 1 | 5 | 15 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B0524LS-1WR3 | 1 | 5 | 24 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B1203LS-1WR3 | 1 | 12 | 3.3 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B1205LS-1WR3 | 1 | 12 | 5 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B1209LS-1WR3 | 1 | 12 | 9 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B1212LS-1WR3 | 1 | 12 | 12 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B1215LS-1WR3 | 1 | 12 | 15 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B1224LS-1WR3 | 1 | 12 | 24 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B1505LS-1WR3 | 1 | 15 | 5 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B1509LS-1WR3 | 1 | 15 | 9 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B1512LS-1WR3 | 1 | 15 | 12 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B1515LS-1WR3 | 1 | 15 | 15 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B2403LS-1WR3 | 1 | 24 | 3.3 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B2405LS-1WR3 | 1 | 24 | 5 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B2409LS-1WR3 | 1 | 24 | 9 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B2412LS-1WR3 | 1 | 24 | 12 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B2415LS-1WR3 | 1 | 24 | 15 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 | ||||
| B2424LS-1WR3 | 1 | 24 | 24 | 1 | 1500VDC | SIP | 19.65*6.00*10.16 |
* For reference only. The detailed info please refer to the datasheet.
