Ultra-thin DFN package DC/DC converter - KAP05_T-1A Series

Ultra-thin DFN package DC/DC converter - KAP05_T-1A Series.jpgThe electronics industry has been experiencing a growing need for high integration, miniaturization, and ultra-thinness of components. In response to this trend, MORNSUN has recently unveiled the KAP05_T-1A chip-level DC/DC switching regulator, which combines ultra-compact size with high efficiency, perfectly catering to the stringent volume requirements of industries such as portable devices and handheld equipment.



Advantages

Ultra-compact size for flexible design

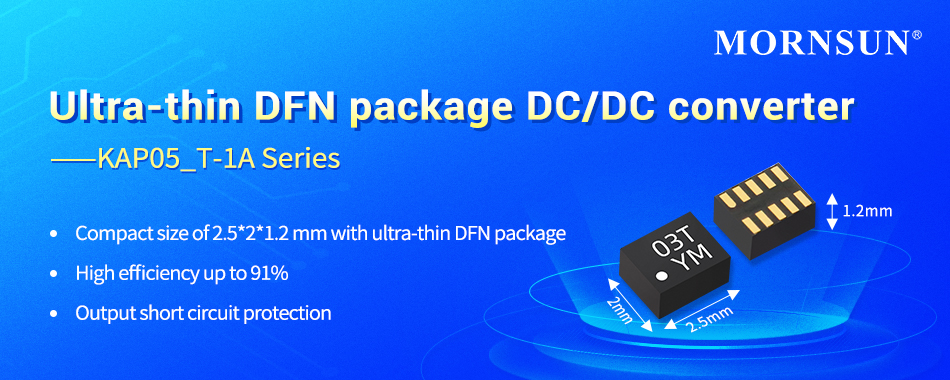

The KAP05_T-1A series of non-isolated PSiP DC/DC switching regulators from MORNSUN utilize advanced DFN packaging technology, with a very small volume of only 2.5*2*1.2mm (smaller than a 1206 capacitor). With the use of minimal components, only requiring filtering capacitors to build peripheral circuits, it effectively reduces the board area, improves space utilization, and simplifies the design process.

Ultra-compact size for flexible design.jpg


High efficiency and reliability

Traditional linear regulator solutions have low efficiency, serious heat generation, and numerous reliability risks. In contrast, the MORNSUN KAP05_T-1A series of non-isolated switching regulators can achieve a maximum full load efficiency of 91% and can operate at full load even under 70°C conditions, effectively ensuring reliable performance. Additionally, the no-load input current is as low as 0.3mA, catering to the demands of low-power standby applications.



Applications

The ultra-compact KAP05_T-1A series can be widely used in wearable devices, smartphones, palmtop computers, handheld game consoles, portable navigation devices, etc., especially in small and portable instruments that require high efficiency and strict requirements on the area for installing components.

The ultra-compact KAP05_T-1A series can be widely used in wearable devices.jpg



Features

  • Input voltage range: 2.5-5.5VDC

  • Regulated output voltage: 1.2, 1.8, 3.3VDC

  • High efficiency up to 91%

  • No-load input current as low as 0.3 mA

  • Operating temperature range: -40℃ to +85 ℃

  • Ultra-small, ultra-thin DFN package (2.5*2*1.2 mm)


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) Iout No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
KAP05A1T-1A 1.2 5(2.5-5.5) 1.2 1000mA 1 DFN 2.5*2.0*1.2
-
KAP05X2T-1A 1.8 5(2.5-5.5) 1.8 1000mA 1 DFN 2.5*2.0*1.2
-
KAP0503T-1A 3.3 5(4.2-5.5) 3.3 1000mA 1 DFN 2.5*2.0*1.2
-
