240W Cost-efficient 3-phase AC/DC DIN rail Power Supply - LIT240-26Bxx Series

240W Cost-efficient 3-phase AC/DC DIN rail Power Supply - LIT240-26Bxx Series.jpg

MORNSUN launched the 240W 3-phase AC/DC power supply LIT240-26Bxx series. As a cost-effective, energy-efficient green power supply solution with standard DIN rail package, it can be widely applied in electric power, new energy, industrial control, railway, and other applications in harsh environments.


This series features wide input voltage, wide operating temperature, 130% peak load for 3 seconds, built-in DC OK function, OVC III (EN62477, 2000m), and complied with UL61010 standard. And its slim-type layout is 17% smaller than the mainstream products in the market.


Advantages

1. High performance

① Wide input voltage range: 3x320-600VAC, two or three phase are available, DC 450-850VDC

② Efficiency up to 92%

③ Operating temperature range: -30℃ to +70℃ (full load@60℃)

④ 130% peak load for 3 seconds, built-in DC OK function, OVC III (EN62477, 2000m)


2. High reliability

① High I/O isolation voltage up to 4000VAC

② 3-year warranty, 5000m altitude

③ Output short circuit, over-current, over-voltage, over-temperature protections

④ Outstanding EMC performance:

Harmonic current: IEC/EN61000-3-2 CLASS A;

ESD: IEC/EN61000-4-2 Contact ±8KV/Air ±15KV;

Surge: IEC/EN61000-4-5 Line to line ±2KV/line to ground ±4KV


3. Structure upgraded

① One-piece screw terminal & U-type shell for a secure installation

② QR code to easily acquire datasheet and manual

③ LED indicating the work status clearly

④ Metal buckles at the back to support forward/reverse mounting

⑤ Slim-type layout: 54mm width, easy to install in a small cabinet


Applications

LIT240-26Bxx can be widely used in applications with 3-phase electric power or with strict requirements in reliability, such as electric power, railway, new energy, etc., providing a stable, high EMC & electrical performance power supply.



The products should be used in natural air cooling environment, if used in a closed environment, please contact our FAE team.

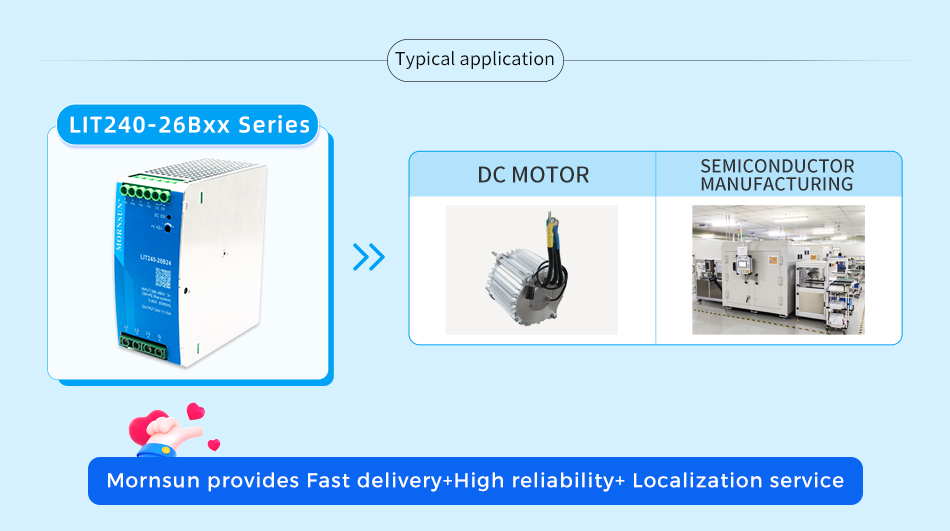

LIT240-26Bxx's Typical application is DC motor & Semiconductor manufacturing.jpg


Features

  • Universal 320-600VAC or 450-850VDC input voltage, three-phase input (two or three phases are available)

  • Efficiency up to 92%

  • Operating temperature range: -30℃ to +70℃ (full load @60℃ )

  • DC OK function

  • High isolation voltage up to 4000VAC

  • OVC III (designed to meet EN62477/2000m)

  • Low ripple & noise, 5000m altitude

  • 3-year warranty

  • 130% peak load for 3 seconds

  • Output short circuit, over-current, over-voltage, over-temperature protections

  • Safety according to UL/EN/IEC/BS EN62368, UL61010, EN62477, EN61558

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) Footprint & 3D Markings Datasheet Sample Buy
LIT240-26B24 240 24V/10A -30℃ to +70℃(full load @60℃) 1 92 4000VAC
-
LIT240-26B48 240 48V/5A -30℃ to +70℃(full load @60℃) 1 92 4000VAC
-
