4"×2" 200W Open-frame Medical AC/DC Converter - LOF225-23BxxR2 Series

4'×2' 200W Open-frame Medical AC/DC Converter - LOF225-23BxxR2 Series.jpg

To meet the demand for power supply with the requirement of miniaturization and without an external fan, MORNSUN launched the LOF225-23BxxR2 series. These modules are optimized on the circuit layout and component heat dissipation design, feature a size of 4"×2" and an efficiency of 96%, suitable for applications requiring high power in a natural air-cooling environment.

LOF225-23BxxR2 series are suitable for BF-type medical applications (Medical system equipment accessible to patients). They feature active PFC function, 4000VAC high isolation voltage, meet medical standards (IEC/EN/ES60601), industrial standards (IEC/EN/UL62368, IEC/EN61558), and home appliance standards (IEC/EN60335), making them safer and more reliable in applications.

Performance enhancements for more options

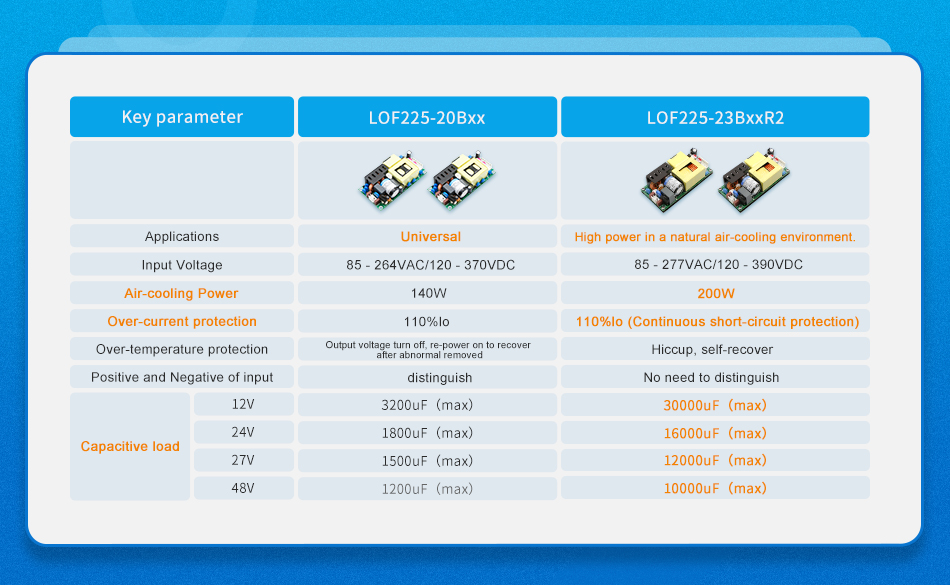

Comparison of LOF225-20Bxx and LOF225-23BxxR2

Comparison of LOF225-20Bxx and LOF225-23BxxR2.jpg

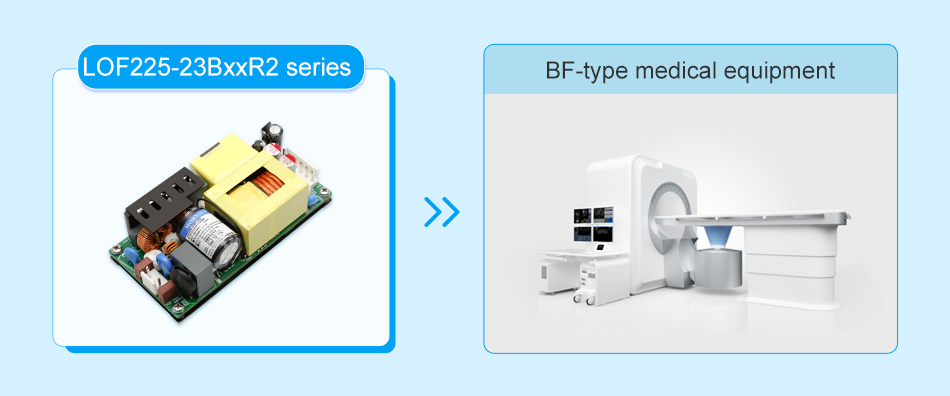

LOF225-23BxxR2 are suitable for applications requiring high power in a natural air-cooling environment, such as BF-type medical equipment, and also can be used in industrial, LED, street light control, electricity, security, telecommunications, smart home, and medical, etc.

typical Application of LOF225-23BxxR2 is BF-type medical equipment.jpg


  • Input voltage range: 85 - 277VAC/120 - 390VDC

  • Compact size: 4” × 2” × 1.12”

  • Operating ambient temperature range: -40℃to+70℃

  • Active PFC

  • High I/O isolation test voltage up to 4000VAC

  • Low leakage current <0.5 mA

  • Stand-by power consumption: 0.75W Typ.

  • Operating altitude up to 5000m

  • Output short circuit, over-current, over-voltage, over-temperature protections

  • Output power: Air cooling 200W, CFM 225W

  • Design to meet medical approvals and be suitable for BF-type applications

  • The base plate with conformal coating

  • Safety according to IEC/EN/UL/BS EN62368, GB4943, IEC/EN60335, IEC/EN61558, IEC/EN/ES60601, IEC60950 standards

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout Efficiency(%) Isolation Footprint & 3D Markings Datasheet Sample Buy
LOF225-23B12R2 225 85-277 120-390 12 16.67A 94 4000VAC
LOF225-23B15R2 225 85-277 120-390 15 13.33A 94 4000VAC
LOF225-23B18R2 225 85-277 120-390 18 11.11A 94 4000VAC
LOF225-23B19R2 225 85-277 120-390 19 10.53A 94 4000VAC
LOF225-23B24R2 225 85-277 120-390 24 8.33A 95 4000VAC
LOF225-23B27R2 225 85-277 120-390 27 7.41A 95 4000VAC
LOF225-23B36R2 225 85-277 120-390 36 5.55A 95 4000VAC
LOF225-23B48R2 225 85-277 120-390 48 4.16A 96 4000VAC
LOF225-23B54R2 225 85-277 120-390 54 3.70A 96 4000VAC
