80-1000VDC Wide input DC/DC Converter for Renewable energy - PV75-2YBxxR3

80-1000VDC Wide input DC/DC Converter for Renewable energy - PV75-2YBxxR3.jpg

MORNSUN launched a series of semi-potting metal case DC/DC converters for renewable energy industry with an ultra-wide and ultra-high DC input of 80-1000VDC. They design based on CSA/CE/UL standards and feature 160% peak load, wide operating temperature, low power consumption, outstanding EMC performance, and multiple protection. These efficient and reliable power modules can be used in a wide range of applications in the renewable energy industries such as photovoltaic inverter, energy storage system, charging pile, industrial control.



Advantages

1. High performance

① Ultra-wide input voltage range of 80-1000VDC, 150VDC @full load

② 75W in steady state and 120W in transient state for 3s

③ Wide operating temperature range: -40℃ to +85℃, can stable operate in the environment of various regions and climate

Low standby power consumption

  • 500VDC input/ standby power consumption<0.5W

  • 1000VDC input/ standby power consumption<1W


2. High reliability

High isolation voltage: Input-output voltage up to 4000VAC

② Multiple protections: Input under-voltage protection, input reverse polarity protection, over-temperature protection, output short circuit, over-current, over-voltage protection

③ Package: Semi-potting metal case for fast heat dissipation

④ Screw terminal or lead type optional

⑤ Certifications: Comply with CSA-C22.2No.107.1-16, UL1741, EN/IEC62109-1 standards

Good EMC performance showing strong interference immunity.

  • EMI CE/RE meets CLASS B,

  • surge meets IEC/EN61000-4-5 Line to line ±1KV/line to PE ±2KV,

  • EFT meets IEC/EN61000-4-4 ±4KV



Applications

PV75-2YBxxR3 can be widely applied in the equipment of photovoltaic power, energy storage system, charging pile, PV inverter, and industrial control, etc.


The products should be used in natural air cooling environment, if used in a closed environment, please contact our FAE team.

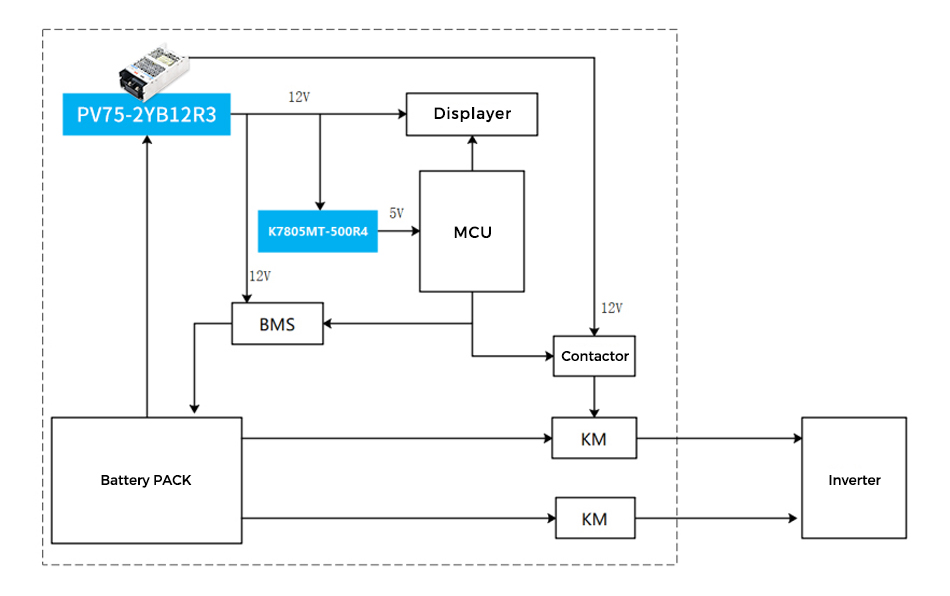

Energy storage: PACK high voltage system

PV75-2YBxxR3 can be widely applied in the equipment of photovoltaic power, energy storage system, charging pile, PV inverter, and industrial control.jpg


Features

  • Ultra-wide input voltage range of 80 - 1000VDC, 150VDC @full load

  • Output voltage of 12/24V

  • 75W in steady state and 120W in transient state for 3s

  • Industrial grade operating temperature range: -40℃ to +85℃

  • Low power consumption<1W @1000VDC input

  • 3-year warranty, high isolation voltage up to 4000VAC, 5000m altitude

  • High efficiency, low ripple & noise, high reliability, long lifespan

  • Screw terminal or lead type optional, semi-potting metal case, outstanding EMC performance

  • Input under-voltage protection, input reverse polarity protection, over-temperature protection, output short circuit, over-current, over-voltage protection

  • Safety according to CSA-C22.2No.107.1-16,UL1741,EN/IEC62109-1 standards


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
PV75-2YB12R3 75 80-1000 12 1 Chassis 140.00*70.00*42.00
PV75-2YB15R3 75 80-1000 15 1 Chassis 140.00*70.00*42.00
PV75-2YB24R3 75 80-1000 24 1 Chassis 140.00*70.00*42.00
