High Performance, 5W AC/DC Converter LH05-23BxxR2 Series

High Performance, 5W AC/DC Converter LH05-23BxxR2 Series.jpg

MORNSUN has introduced its new 5W AC/DC converters LH05-23BxxR series.

It accepts a wide 85-305VAC input and provides the tightly regulated single output of 3.3V, 5V, 9V, 12V, 15V, and 24V.


The high-performance LH-R2 series in the 305RAC family has output power ratings of 5W, 10W, 15W, and 25W.

High efficiency, reliability, and compact-size design make it the cost-efficient power solution for size-sensitive or low-profile applications.


Advantages

1. Compact size: 48.5*36*20.5mm

  • Pin-to-pin compatible with LHE series


2. Wide input voltage range: 85 - 305VAC/100 - 430VDC

  • AC-DC dual-use, meet the universal voltage range


3. Wide operating temperature range: -40℃ to +85℃

  • -25℃ to +50℃ without derating, 70℃ with 50% load

  • Operating altitude up to 5000m


4. High-reliability

  • High isolation voltage up to 4000VAC

  • OVC Ⅲ (meet IEC62477-1, 2000m altitude)

  • Meets Emissions CLASS B and surge ±2KV/±4KV without additional circuits


Applications

The LH-R2 series can be widely used in industrial control system, smart home, intelligent building, smart agriculture, household appliances, etc., especially space-constrained and EMI-sensitive applications.

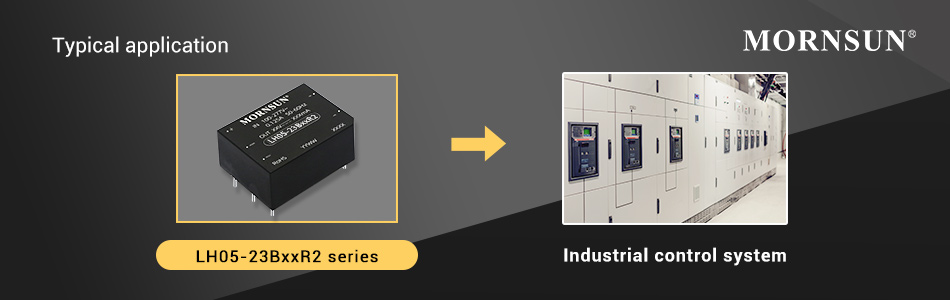

The LH-R2 series can be widely used in industrial control system.jpg


Features

  • Wide Input voltage range: 85 - 305VAC or 100 - 430VDC, satisfy with different requirements of 110VAC, 220VAC, 240VAC, 277VAC

  • Accepts AC or DC input (dual-use of same terminal)

  • Operating temperature range: -40℃ to +85℃

  • Low power consumption: 0.3W

  • Meets Emissions CLASS B and surge ±2KV/±4KV without additional circuits

  • Output short circuit, over-current, over-voltage protections

  • According to IEC/EN/UL62368, IEC62477


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LH05-23B03R2 4.12 85-305 100-430 3.3 1250mA 1 4000VAC DIP 48.5*36.0*20.5
LH05-23B05R2 5 85-305 100-430 5 1000mA 1 4000VAC DIP 48.5*36.0*20.5
LH05-23B09R2 4.95 85-305 100-430 9 550mA 1 4000VAC DIP 48.5*36.0*20.5
LH05-23B12R2 5.04 85-305 100-430 12 420mA 1 4000VAC DIP 48.5*36.0*20.5
LH05-23B15R2 4.95 85-305 100-430 15 330mA 1 4000VAC DIP 48.5*36.0*20.5
LH05-23B24R2 5.52 85-305 100-430 24 230mA 1 4000VAC DIP 48.5*36.0*20.5
