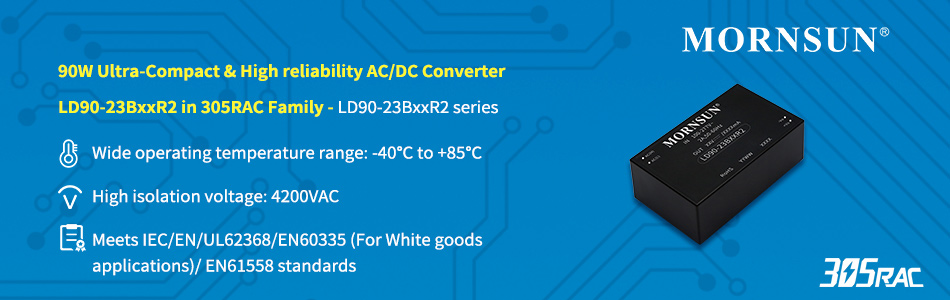

90W Ultra-Compact & High reliability AC/DC Converter LD90-23BxxR2 in 305RAC Family

90W Ultra-Compact & High reliability AC/DC Converter LD90-23BxxR2 in 305RAC Family.jpg

MORNSUN launched a new compact-size and high-reliability AC/DC converter LD90-23BxxR2 to expand the power range of the “305RAC” Family. It complies with the“305RAC” family's features of an ultra-slim size, high performance, high efficiency, and wide input voltage of 80-305VAC.


Advantages

Compact size: 87.00*52.00*29.50mm

a. Compatible with the mainstream pin-out on the market

b. The long-narrow AC/DC converter design is suitable for the space-limited requirement.

Ultra-wide input voltage: 80-305VAC / 110-430VDC

Wide operating temperature range: -40℃ to +85℃, full load at 55℃ without derating, meets the altitude requirements of 4000m.

High reliability

a. High isolation voltage: 4200VAC

b. Meets IEC/EN/UL62368/EN60335 (For White goods applications) /EN61558 standards, meets OVC III (EN61558-1)

Good EMC performances such as Surge meeting ±2KV(Line to Line)/±4KV(Line to ground).


Applications

It can be widely used in industrial control systems, electric power, smart home, household appliance, instrument, communication, civil power, etc.

MORNSUN AC/DC CONVERTER can be used in industrial control system, electric power, smart home, household appliance, instrument, communication, civil power.jpg


Features

  • Compact size, compatible with the mainstream pin-out on the market,

  • Wide input voltage range: 80-305VAC

  • Operating temperature range: -40℃ to +85℃

  • No-load power consumption < 0.21W

  • Efficiency up to 93%

  • Meets Emissions CLASS B and surge ±2KV without additional circuits

  • 4000m altitude application

  • Meets IEC/EN/UL62368/EN60335 (For White goods applications) / EN61558 standards

  • Output short circuit, over-current, over-voltage protection

  • High isolation voltage up to 4200VAC

  • OVCⅢ (meet EN62368-1, EN61558-1, 2000m altitude)

Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LD90-23B12R2 80.4 80-305 110-430 12 6700mA 1 4200VAC DIP 87.00*52.00*29.50
LD90-23B15R2 85.05 80-305 110-430 15 5670mA 1 4200VAC DIP 87.00*52.00*29.50
LD90-23B24R2 90 80-305 110-430 24 3750mA 1 4200VAC DIP 87.00*52.00*29.50
LD90-23B48R2 90 80-305 110-430 48 1875mA 1 4200VAC DIP 87.00*52.00*29.50
