AC/DC Converter for Automotive Charging Equipment——CLS03_15A12SR2S

Introduction of AC/DC Converter CLS03_15A12SR2S

Introduction of AC/DC Converter CLS03_15A12SR2S

CLS03_15A12SR2S is one of Mornsun’s high efficient green power AC-DC Converter series. It features ultra-compact size (35.0*13.0*21.0mm), ultra-wide input range accepting either AC or DC voltage, high reliability, low power consumption, and reinforced isolation. The production process in accordance with the automotive standard IATF16949 system.

Application of  AC/DC Converter CLS03_15A12SR2S

AC/DC Converter CLS03_15A12SR2S is suitable for automotive charging related equipment, such as a portable on-board charger for the electric vehicle, charging box, charging pile, and so on.

Application of  AC/DC Converter CLS03_15A12SR2S

Features of AC/DC Converter CLS03_15A12SR2S

● The production process in accordance with IATF16949 system control applied to the automotive industry

  Universal input voltage: 85 - 264VAC/100 - 370VDC

  Operating ambient temperature range:-40℃ to +85℃

  Output short circuit, over-current protection

  Low power consumption, green power

  Industrial-grade design

  Open frame, compact size

  The flexible design of the peripheral circuit reduces layout problems

  CLS03-15A12SR2S-反CLS03-15A12SR2S-正Design to meet IEC62368/EN62368/UL62368 standards

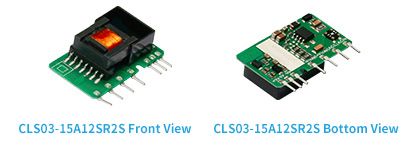

Pictures of AC/DC Converter CLS03_15A12SR2S

Pictures of AC/DC Converter CLS03_15A12SR2S

Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
CLS03-15A12SR2S 2.4 85-264 100-370 -12,12 2 3000 SIP 35.00*21.00*13.00
