60-150W AC/DC Dual-output Enclosed Switching Power Supply for Laser Galvo--LMxx-12Axx Series

MORNSUN 150W AC/DC Dual-output SMPS LMxx-12Axx.jpg


To address the power design challenges such as size, reliability, cost, etc. in laser applications, MORNSUN is working closely with customers to design the LMxx-12Axx series products for the precise requirements. The LMxx-12Axx series products have a compact size of about 40% smaller than the same kind of products on the market, meet the needs of 220Vac utility use and provide dual outputs of ±15Vdc. They are designed to meet the EMC and safety regulations of IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards, and CE approval. The LMxx-12Axx covers power of 60W, 90W and 150W, besides for laser galvanometer applications, it can also be used to current sensors, motors and other applications.


Advantages


1) Compact size of about 40% smaller than the same kind of products on the market



2)  Automatic production and effective process control ensures product consistency


3) Operating temperature range: -30℃ to +70℃


4) High reliability

a. CE approval, safety according to IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards

b. Output short circuit, over-current, over-voltage protections

c. Operating altitude up to 5000m

d. High I/O isolation test voltage up to 3000VAC



Application

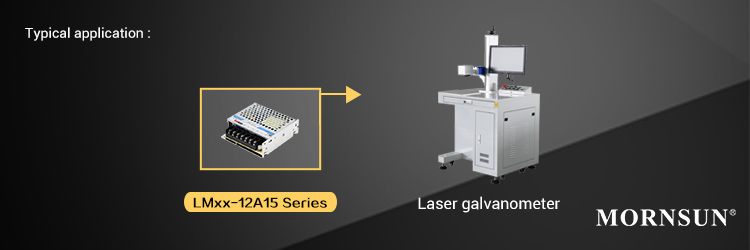

LMxx-12Axx is not only specific for laser galvanometer applications, but also for current sensors, motors and other applications.

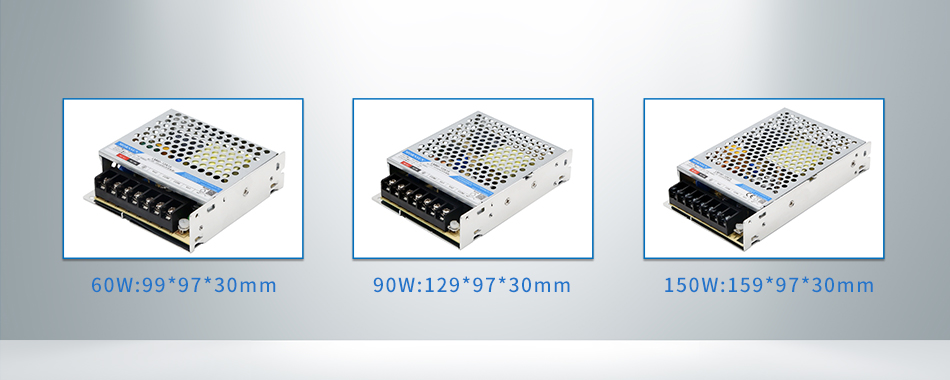

MORNSUN 60W AC/DC Dual-output Enclosed SMPS LMxx-12Axx.jpg


Features


Universal Input voltage: 165 - 264VAC or 180 - 370VDC

Operating temperature: -30℃ to +70℃

High efficiency, high reliability and long life

Output short circuit, over-current, over-voltage protections

High I/O isolation test voltage up to 3000VAC

Operating altitude up to 5000m

Compact size of about 40% smaller than the same kind of products on the market

CE approval


Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) Footprint & 3D Certification Datasheet Sample Buy
LM150-12A15 150 165-264VAC/180-370VDC 15V/5A,-15V/5A -30℃ to +70℃ 2 85 3000
LM60-12A15 60 165-264VAC/180-370VDC 15V/2A,-15V/2A -30℃ to +70℃ 2 82 3000
LM90-12A15 90 165-264VAC/180-370VDC 15V/3A,-15V/3A -30℃ to +70℃ 2 82 3000
