450-550W High Power Density Medical AC DC Converter LOF Series

MORNSUN 450-550W High Power Density Medical AC DC Converter LOF Series.jpg


Catering to the requirement for higher power AC/DC converter in Medical applications, MORNSUN launched the newly 450W and 550W LOF series products to provide customers more options this April.


MORNSUN medical AC DC SMPSLOF450-550.jpg


Maintaining the high power density advantage of LOF series, LOF450 series has the dimension of 127mm × 76.2mm × 38.5mm (1.2W/cm³), and LOF550 series is 127mm × 76.2mm × 40.5mm (1.4W/cm³). These medical power supplies meet the reinforced insulation 2xMOPP, have active PFC function, and are designed to comply with medical electrical equipment standards (IEC/EN/ES60601-1 latest version), information equipment standards (IEC/EN/UL62368) and home appliance standards (IEC/EN60335, IEC/EN61558), making the products safe and reliable in applications.


Application

It is suitable for BF medical devices and non-patient contact medical devices as its low leakage current, and also for industrial applications.


MORNSUN 550W Medical AC DC Converter LOF550.jpg


Features

● Input voltage range:90-264VAC/127-370VDC

● Operating temperature range:-40℃ to +70℃

● High Power Density, compact size:

      LOF450:5×3×1.51 inch(19.87W / in³)

      LOF550:5×3×1.59 inch(23.06W / in³)

● Isolation voltage: 4000VAC

● Active PFC(PF>0.95,full load @230VAC)

● Medical safety certification (2 x MOPP)

● Standby power consumption <0.5W

● Multiple protections of Output short-circuit, over-current, over-voltage and over-temperature

● Installing in the system of Safety Class I/II is available

● Efficiency up to 94%

● Operating altitude up to 5000m

● EMI meets CISPR32/EN55032 CLASS B

● Safety according to IEC/EN/ES60601-1(latest version), IEC/EN/UL62368, IEC/EN60335, IEC/EN61558

● Plated with conformal coating

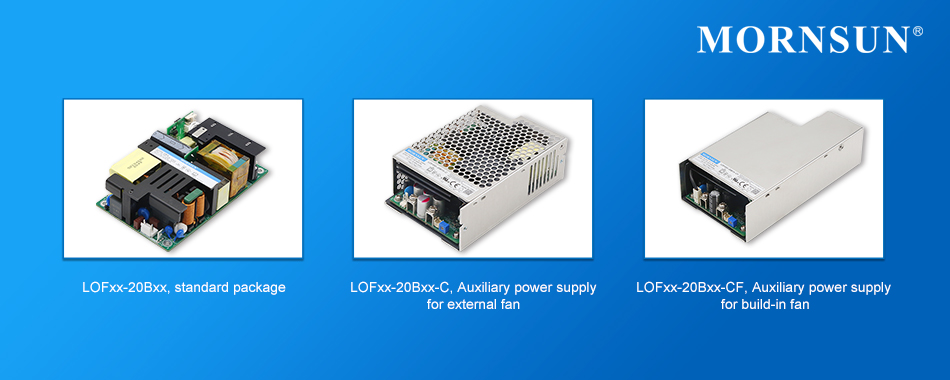

● Auxiliary power supply for external fan or build-in fan available

● Remote ON/OFF via PS-ON


Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Nominal Vout and Io(V/A) Efficiency(%) Isolation(VAC) Footprint & 3D Certification Datasheet Sample Buy
LOF450-20B12 400 90-264 127-370 12V/33.3 91 4000
LOF450-20B12-C 400 90-264 127-370 12V/33.3A 91 4000
-
LOF450-20B12-CF 400 90-264 127-370 12V/33.3A 91 4000
-
LOF450-20B15 400 90-264 127-370 15V/26.7 92 4000
LOF450-20B15-C 400 90-264 127-370 15V/26.7A 92 4000
-
LOF450-20B15-CF 400 90-264 127-370 15V/26.7A 92 4000
-
LOF450-20B24 450 90-264 127-370 24V/18.75 93 4000
LOF450-20B24-C 450 90-264 127-370 24V/18.75A 93 4000
-
LOF450-20B24-CF 450 90-264 127-370 24V/18.75A 93 4000
-
LOF450-20B27 450 90-264 127-370 27V/16.7 93.5 4000
LOF450-20B27-C 450 90-264 127-370 27V/16.7A 93.5 4000
-
LOF450-20B27-CF 450 90-264 127-370 27V/16.7A 93.5 4000
-
LOF450-20B36 450 90-264 127-370 36V/12.5 93 4000
LOF450-20B36-C 450 90-264 127-370 36V/12.5A 93 4000
-
LOF450-20B36-CF 450 90-264 127-370 36V/12.5A 93 4000
-
LOF450-20B48 450 90-264 127-370 48V/9.4 94 4000
LOF450-20B48-C 450 90-264 127-370 48V/9.4A 94 4000
-
LOF450-20B48-CF 450 90-264 127-370 48V/9.4A 94 4000
-
LOF550-20B12 499.2 90-264 127-370 12V/41.6 91 4000
LOF550-20B12-C 499.2 90-264 127-370 12V/41.6A 91 4000
-
LOF550-20B12-CF 499.2 90-264 127-370 12V/41.6A 94 4000
-
LOF550-20B15 499.5 90-264 127-370 15V/33.3 92 4000
LOF550-20B15-C 499.5 90-264 127-370 15V/33.3A 92 4000
-
LOF550-20B15-CF 499.5 90-264 127-370 15V/33.3A 94 4000
-
LOF550-20B24 549.6 90-264 127-370 24V/22.9 93 4000
LOF550-20B24-C 549.6 90-264 127-370 24V/22.9A 93 4000
-
LOF550-20B24-CF 549.6 90-264 127-370 24V/22.9A 94 4000
-
LOF550-20B27 550.8 90-264 - 27V/20.4 93.5 4000
LOF550-20B27-C 550.8 90-264 127-370 27V/20.4A 93.5 4000
-
LOF550-20B27-CF 550.8 90-264 127-370 27V/20.4A 94 4000
-
LOF550-20B36 550.8 90-264 127-370 36V/15.3 93 4000
LOF550-20B36-C 550.8 90-264 127-370 36V/15.3A 94 4000
-
LOF550-20B36-CF 550.8 90-264 127-370 36V/15.3A 94 4000
-
LOF550-20B48 550 90-264 127-370 48V/11.46 94 4000
LOF550-20B48-C 550 90-264 127-370 48V/11.46A 94 4000
-
LOF550-20B48-CF 550 90-264 127-370 48V/11.46A 94 4000
-
