New Series High-Voltage DC/DC Converter from Mornsun Will Beyond Your Expectations - PV40-27BxxR2 Series

high voltage dc dc converter & dc to dc converters for solar pv & PV40-27BxxR2 Series

Based on the original PV series products, PV40-27BxxR2 Series features high efficiency, multiple protections, and ultra-wide input voltage. It improves the surge and EFT in EMC performance and has passed the reliability test of 1000 hours of high temperature & high humidity (temperature of 85℃, humidity of 85%) and 100,000 times of on-off switching test. What’s more, the 40W High-efficiency high voltage input dc dc converter product complying with the EN62109 and UL1741 standards makes it safe and reliable, which can be widely used in photovoltaic, high voltage inverter, UPS, wind power applications, etc.

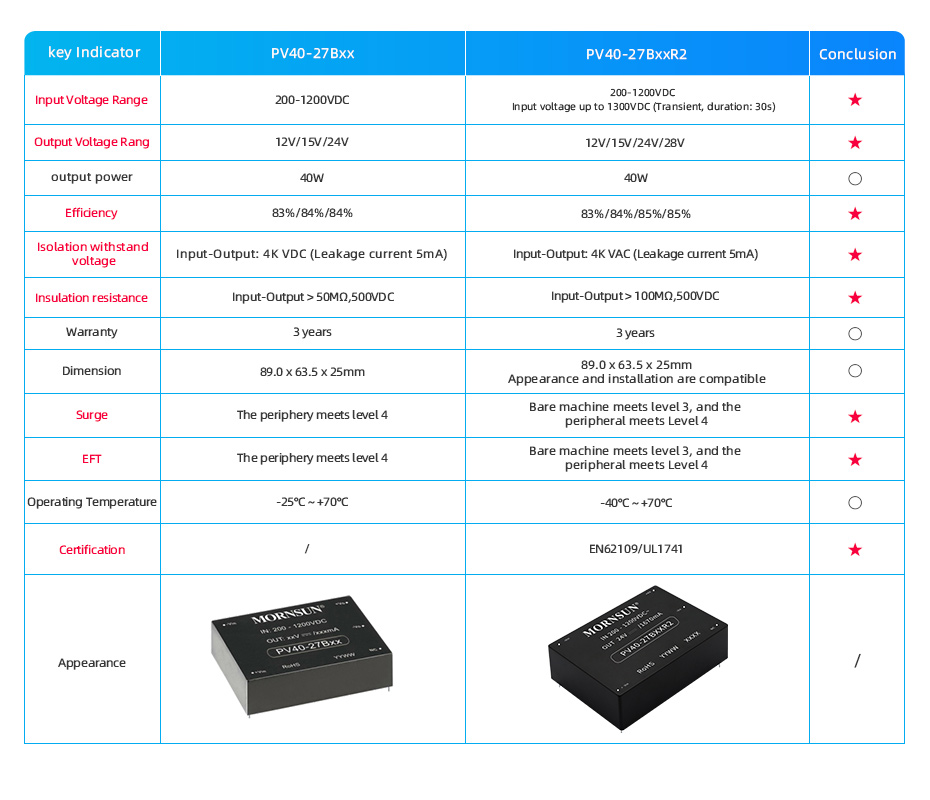

Advantages of high voltage input dc dc converter

MORNSUN PV40-27BxxR2 Series Advantages.jpg

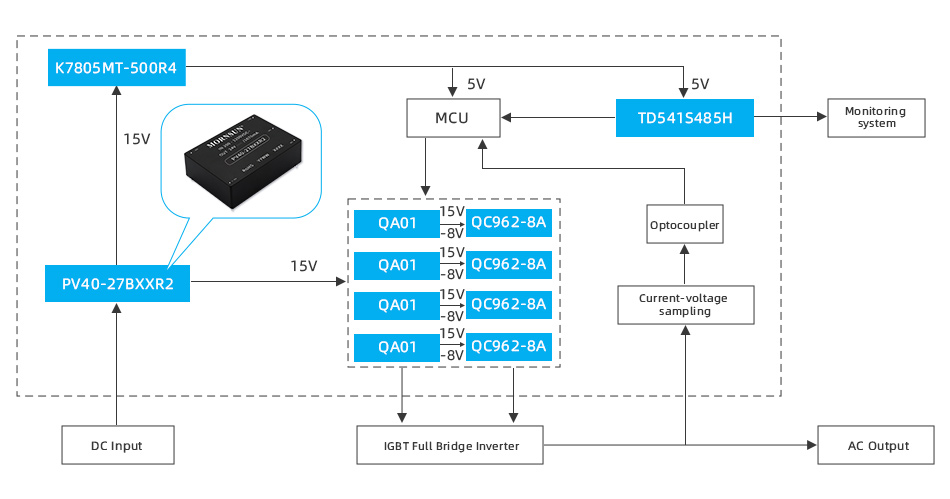

Applications of Mornsun high voltage high power dc dc converter

It is widely used in the photovoltaic industry, such as combiner box, PV tracking system, centralized inverter, group series inverter, PV energy storage, photovoltaic water pump system, and other equipment, as well as a high-voltage inverter, UPS, wind power application system, etc. If you want to know more info about PV40-27BxxR2 Series, you may download dc to dc converter pdf.

MORNSUN PV40-27BxxR2 Series Applications.jpg

Features of high voltage input dc dc converter

● Ultra-wide input voltage range: 200 - 1200V, Input voltage up to 1300VDC (Transient, duration: 30s)

● Operating Temperature: -40℃ to +70℃

● High isolation voltage of 4000VAC

● High efficiency, low ripple & noise

● High reliability, long lifespan

● Input under-voltage protection, reverse input voltage protection, output short circuit, over-current, over-voltage protection

● Meet 5000m altitude application

● Comply with EN62109, UL1741 standards


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
PV40-27B12R2 40 200 - 1200 12 1 DIP 89.00*63.50*25.00
PV40-27B15R2 40 200 - 1200 15 1 DIP 89.00*63.50*25.00
PV40-27B24R2 40 200 - 1200 24 1 DIP 89.00*63.50*25.00
PV40-27B28R2 40 200 - 1200 28 1 DIP 89.00*63.50*25.00
PV40-27B32R2 40 200 - 1200 32 1 DIP 89.00*63.50*25.00
-
