30W High Power Density DC/DC Converter Series URB_YMD-30WR3

DC/DC Converter Series URB_YMD-30WR3

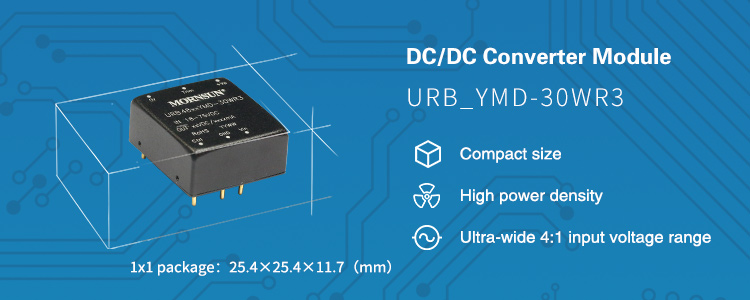

MORNSUN URB_YMD-30WR3 series is designed to meet the requirements of the wide input voltage with high power density. This new series URB_YMD-30WR3 comes in a 1x1 inch standard package and its power density increased by 50.4% compared to 2x1 inch package products with the same output power. Besides, this URB_YMD-30WR3 series features an 18-75V ultra-wide input voltage range and operating temperature range of -40℃ to +85℃. Protections include input under-voltage, output short circuit, over-current, and over-voltage.


Applications of DC/DC Converter Series URB_YMD-30WR3


DC/DC Converter Series URB_YMD-30WR3 is widely used in applications of industrial control, power grid, instrumentation, communication, etc.




Features of DC/DC Converter Series URB_YMD-30WR3


Ultra-wide 4:1 input voltage range
High efficiency up to 88%
Operating temperature range: -40℃to +85℃
Input under-voltage, output short circuit, over-voltage, over-current protections
Meets EN62368, UL62368, IEC62368 standards(CE pending)



Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
URB4805YMD-30WR3 30 18~75 5 1 1500 DIP 25.40*25.40*11.70 3D MODEL PCB Symbol Footprint CE URB4805YMD-30WR3
URB4812YMD-30WR3 30 18~75 12 1 1500 DIP 25.40*25.40*11.70 3D MODEL PCB Symbol Footprint CE URB4812YMD-30WR3
URB4815YMD-30WR3 30 18~75 15 1 1500 DIP 25.40*25.40*11.70 3D MODEL PCB Symbol Footprint CE URB4815YMD-30WR3
URB4824YMD-30WR3 30 18~75 24 1 1500 DIP 25.40*25.40*11.70 3D MODEL PCB Symbol Footprint CE URB4824YMD-30WR3
Series
URB4805YMD-30WR3
URB4812YMD-30WR3
URB4815YMD-30WR3
URB4824YMD-30WR3
