MORNSUN Automotive Compact Size High Isolation Transformer -TSHT5.8-01

MORNSUN launched a totally new product - automotive compact size high isolation transformer TSHT5.8-01. This new TSHT5.8-01 transformer not only has a high isolation voltage 3000VDC, features compact size and cost effective, but also meets AEC-Q200 standard.

This new transformer can be used with MORNSUN fixed input push-pull controller IC SCM1201 to achieve a 5 VDC input, 5VDC output, 1W rated power isolated DC/DC converter which is usually used to power and isolate the data interface such as RS232, RS485, CAN bus.

Application:
Widely used in pure digital circuit, analog acquisition circuit, data exchange circuit.

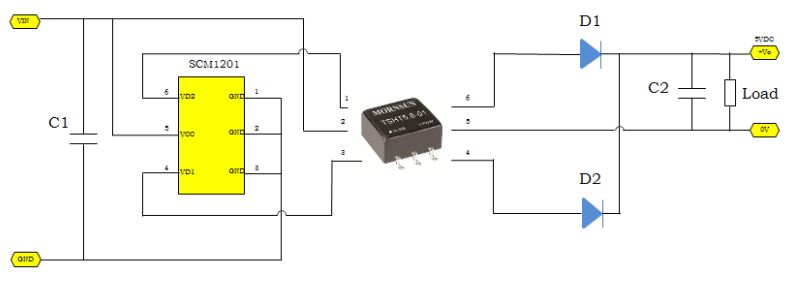

Typical circuit block diagram as below,

MORNSUN Automotive Compact Size High Isolation Transformer -TSHT5.8-01


Features:
> Meets AEC-Q200 standard that required by passive components automotive quality certification
> Compact SMD package
> Isolation voltage: 3000VDC
> Operating temperature range: -40℃ to +125℃

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Skeleton structure Topology Design Reference Footprint & 3D Markings Datasheet Sample Buy
TSHT5.8-01 ≤1 5 5 1 3000 SMD - Push-Pull -
-
