150W 250-1500VDC Input Voltage DC/DC Converter with smaller size PV150-29BxxL Series

MORNSUN 150W 250-1500VDC Input Voltage DC/DC Converter with smaller size PV150-29BxxL Series.jpg


According to the development of the PV industry, demands of more compact power supply in applications are increasing. MORNSUN newest 150W PV150-29BxxL products can not only be used in PV system, but also suitable for energy storage and charging station, etc.


The products feature ultra-wide input voltage range of 250-1500VDC, wide operating temperature of -40℃ to +70℃, and a compact size of 201x 70x 42mm. Designed to meet CSA-C22.2 No.107.1, EN62109, UL1741 certification standards, which makes them meet the high reliability requirements in applications.


Advantages

1) Ultra-wide input voltage range:

200-1500VDC (Transient 1700VDC, duration: 10s)


2) Smaller size with optimized design

The dimension is only 201*70*42mm(25.6% reduction) , which greatly improves the space utilization for customers.


3) High reliability

a.      Isolated voltage of 4000 VAC

b.      Multiple protections of output short-circuit, over-current, and over-voltage

c.      Meet UL1741, EN62109 certified standards; Operating up to 5000m altitude; Safe and reliable

d.      MTBF: MIL-HDBK-217F@25℃≥300,000h


4) Wide operating temperature range, low power consumption, high efficiency

a.      Operating temperature range: -40°C to +70°C

b.      Efficiency up to 89%


5) Excellent EMC performance

a.      EMI: CISPR32/EN55032 CLASS A

b.      EMS: CISPR32/EN55032 CLASS A


Applications

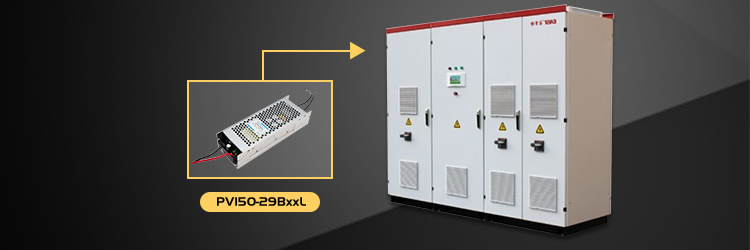

It can be widely used in PV industry in combiner box, solar-tracking system, centralized inverter, string inverter, energy storage system, water pumping system, etc.




Features

●  Ultra-wide input voltage range: 200-1500VDC (Transient 1700VDC, duration : 10s)

●  Operating temperature: -40℃ to +70℃

●  High isolated voltage of 4000 VAC

●  High efficiency, low ripple & noise

●  High reliability, long lifespan

●  Multiple protections of Input under-voltage, reverse polarity protection, output short-circuit, over-current, and over-voltage

●  Operating up to 5000m altitude

●  Designed to meet CSA-C22.2 No.107.1, EN62109, UL1741 standards


Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
PV150-29B24L 150 250-1500 24 1 4000VAC Chassis 201.00*70.00*42.00 - -
PV150-29B28L 150 250-1500 28 1 4000VAC Chassis 201.00*70.00*42.00 - -
PV150-29B32L 150 250-1500 32 1 4000VAC Chassis 201.00*70.00*42.00 - -
