4.5-36VDC of 8:1 Input Voltage Range DC/DC Converter ——UWE/F_S-1/3WR3 Series

UWE/F_S-1/3WR3 Series


Introduction of DC/DC Converter ——UWE/F_S-1/3WR3 Series

In the harsher input voltage application, customers need a switching power supply with an ultra wide input voltage range. In this situation, the power supply exists a contradiction that the start-up ability is insufficient at low input voltage, but the starting circuit loss is large at high input voltage.

In order to solve the above-mentioned contradictions and broaden the product input voltage range, MORNSUN develops the UWE/F_S-1/3WR3 series with 8:1 ultra wide input voltage range of 4.5~36VDC, which are compatible with various typical input voltages such as 5V/12V/15V/24V.

UWE/F_S-1/3WR3 series features isolated voltage up to 3000VDC, working temperature range of -40 to +105, and no-load power consumption as low as 0.12W. In addition, it also has input under-voltage protection, output short circuit protection, over-current protection.


Application of DC/DC Converter ——UWE/F_S-1/3WR3 Series

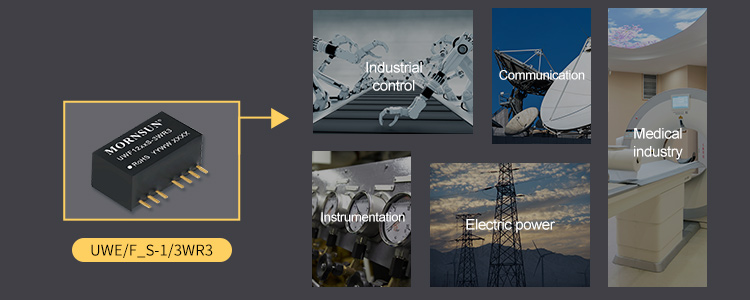

UWE/F_S-1/3WR3 Series can be widely used in industrial control, electric power, instrumentation, communication, medical industry, and other fields.


MORNSUN 4.5-36VDC of 8:1 Input Voltage Range DC/DC Converter ——UWE/F_S-1/3WR3 Series.jpg


Features of DC/DC Converter ——UWE/F_S-1/3WR3 Series

 ● Ultra-wide 8:1 input voltage range :4.5-36VDC

 ● No-load power consumption as low as 0.12W

  Operating ambient temperature range: -40 to +105

  Input under-voltage protection, output short circuit protection, over-current protection

 ● Industry standard pin-out

  Meets EN62368


Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
UWE1205S-1WR3 1 4.5~36 ±5 2 3000 SIP 22.00*9.50*12.00 - CE UWE1205S-1WR3
UWE1205S-3WR3 3 4.5~36 ±5 2 3000 SIP 22.00*9.50*12.00 - CE UWE1205S-3WR3
UWE1212S-1WR3 1 4.5~36 ±12 2 3000 SIP 22.00*9.50*12.00 - CE UWE1212S-1WR3
UWE1212S-3WR3 3 4.5~36 ±12 2 3000 SIP 22.00*9.50*12.00 - CE UWE1212S-3WR3
UWE1215S-1WR3 1 4.5~36 ±15 2 3000 SIP 22.00*9.50*12.00 - CE UWE1215S-1WR3
UWE1215S-3WR3 3 4.5~36 ±15 2 3000 SIP 22.00*9.50*12.00 - CE UWE1215S-3WR3
UWF1205S-1WR3 1 4.5~36 5 1 3000 SIP 22.00*9.50*12.00 - CE UWF1205S-1WR3
UWF1205S-3WR3 3 4.5~36 5 1 3000 SIP 22.00*9.50*12.00 - CE UWF1205S-3WR3
UWF1212S-1WR3 1 4.5~36 12 1 3000 SIP 22.00*9.50*12.00 - CE UWF1212S-1WR3
UWF1212S-3WR3 3 4.5~36 12 1 3000 SIP 22.00*9.50*12.00 - CE UWF1212S-3WR3
UWF1215S-1WR3 1 4.5~36 15 1 3000 SIP 22.00*9.50*12.00 - CE UWF1215S-1WR3
UWF1215S-3WR3 3 4.5~36 15 1 3000 SIP 22.00*9.50*12.00 - CE UWF1215S-3WR3
Series
UWE1205S-1WR3
UWE1205S-3WR3
UWE1212S-1WR3
UWE1212S-3WR3
UWE1215S-1WR3
UWE1215S-3WR3
UWF1205S-1WR3
UWF1205S-3WR3
UWF1212S-1WR3
UWF1212S-3WR3
UWF1215S-1WR3
UWF1215S-3WR3
