MORNSUN New 6-16A Non-isolated POL DC/DC Converter K12T Series

MORNSUN released a non-isolated POL DC/DC converters K12T series. The K12T series features a compact SMD package and provides an output current of 6A, 10A, 16A, and their output voltage can be accurately adjustable from 0.75V to 5.0V.

The 6-16A non-isolated POL DC/DC converters can supply a large high-speed transient response current for high-speed chips such as FPGA, DSP, ASIC to simply its system design, which is suitable for a wide range of industrial applications including communication, computer network industry and dynamic distributed architecture, workstations, servers, LANs/WANs.

Advantages of 6-16A Non-isolated POL DC/DC Converter K12T Series
1.Excellent temperature derating
Wide operating ambient temperature range for K12T series: -40℃ to+85℃; Temperature derating: 60℃(K12T-6A), 70℃(K12T-1A), 40℃(K12T-16A).

2. High-speed transient response
20us typical transient recovery time and large capacitive load can ensure the high-speed transient response and fast start-up that required by industries such as communication.

3. High conversion efficiency
Standby power consumption as low as 0.18W, efficiency at full load is up to 96%, efficiency at light load is up to 89%.

4. Complete protection

Input under-voltage, output short-circuit, over-current protection.


Application of 6-16A Non-isolated POL DC/DC Converter K12T Series

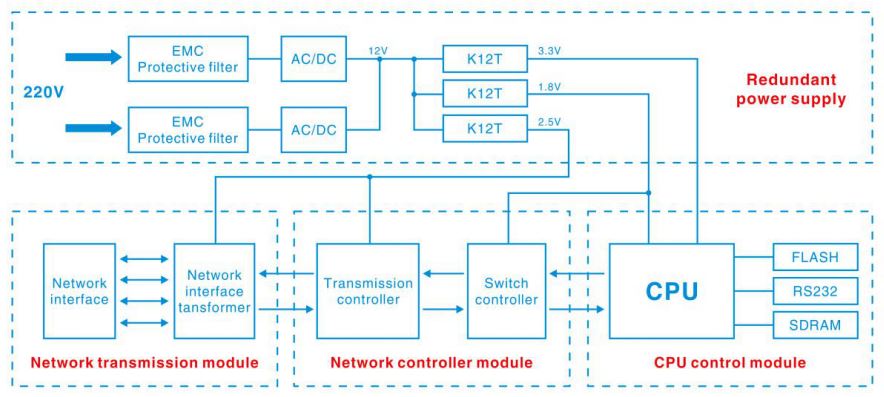

Industrial Switch Industry Power Supply Application



Features of 6-16A Non-isolated POL DC/DC Converter K12T Series

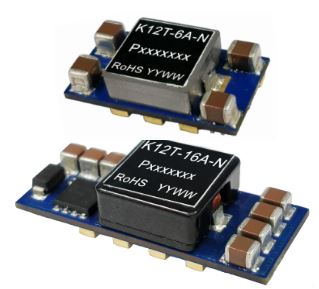

> Compact open-frame SMD package
> High efficiency of up to 96%
> CISPR32/EN55032 CLASS B EMI compliant with external components
> High-speed transient response


Please refer to the technical manual for specific product parameters:

Series Vin(VDC) Vout(VDC) Iout(mA) No. of Outputs Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
K12T-10A-N 8.3~14 0.75~5 10000 1 SMD 33.00*13.50*8.30 3D MODEL CE K12T-10A-N
K12T-10A-P 8.3~14 0.75~5 10000 1 SMD 33.00*13.50*8.30 3D MODEL CE K12T-10A-P
K12T-16A-N 8.3~14 0.75~5 16000 1 SMD 33.00*13.50*8.30 3D MODEL CE K12T-16A-N
K12T-16A-P 8.3~14 0.75~5 16000 1 SMD 33.00*13.50*8.30 3D MODEL CE K12T-16A-P
K12T-6A-N 8.3~14 0.75~5 6000 1 SMD 20.30*11.40*6.60 - CE K12T-6A-N
K12T-6A-P 8.3~14 0.75~5 6000 1 SMD 20.30*11.40*6.60 - CE K12T-6A-P
Series
K12T-10A-N
K12T-10A-P
K12T-16A-N
K12T-16A-P
K12T-6A-N
K12T-6A-P
