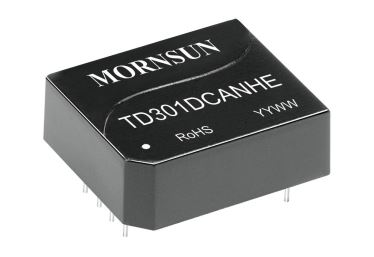

±4kV High Surge Protection Isolated CAN Transceiver Module TD5(3)01DCANHE Series

    MORNSUN recently launched the new isolated CAN transceiver TD5(3)01DCANHE with excellent EMC performance. The new series has two optional voltages of 3.3V and 5V, and are designed to withstand high voltage transients of up to 15 kV IEC ESD (air discharge), 8 kV IEC ESD (contact discharge), and 4 kV surge. Due to its outstanding EMC performance, the new series not only has low electromagnetic radiation and high resistance to electromagnetic interference, but also can run stably in a strong interference environment.

    The TD5(3)01DCANHE series adopts IC integrated technology which greatly improve EMC performance and keep DIP8 package. Besides, with integrated power supply, CAN bus isolation and ESD protection in one module, they can assist fast signal response in the applications of power grid, industrial control, transportation (rail, automotive) and instrumentation, etc.

    For more details, please refer to the datasheet or consult our sales.

Applications:

Widely used in the applications of power grid, industrial control, transportation (rail, automotive) and instrumentation, etc.


FEATURES:
▶ Isolation: Two- port isolation 2500 VDC (input and output are mutually isolated)
▶ Baud rate up to 1Mbps                                                     ±4kV High Surge Protection Isolated CAN Transceiver Module TD5(3)01DCANHE Series
▶ Operating temperature range:-40℃ to +85℃
▶ Connect up to 110 nodes on one bus
▶ ESD protection: Contact ±8kV/Air±15kV
▶ Surge protection: ±4kV

▶ Meets EN62368 standards(Pending)


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Integrated Power No of Channel Transmission Rate(bps) Vin(VDC) Nodes Number Isolation Package Features Footprint & 3D Markings Datasheet Sample Buy
TD301DCANHE 1 20k~1M 3.3 110 2500VDC DIP Surge protected
TD501DCANHE 1 20k~1M 5 110 2500VDC DIP Surge protected
