Ultra-compact Size Isolated Regulated 1-3W DC/DC Converter

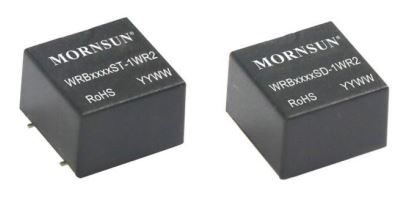

MORNSUN launched a ultra-compact size DC/DC converter series WRB, which features 2:1 wide input range, operating temperature range of -40℃ ~+85℃, and 1500VDC isolation voltage. What’s more, the size is 40% smaller than general products. Packages are available in SMD and DIP. In addition, its continuous short circuit protection can ensure the safety performance of back-end circuits.


Applications:
Widely used in communication, instruments, industrial control applications.



Features:

● DIP/SMD package with compact size

● 2:1 input voltage range: 9-18VDC/18-36VDC

● Operating temperature range: -40℃ ~+85℃

● I/O isolation test voltage: 1.5k VDC

● Industry standard pin-out

● Continuous short circuit protection

● Meets EN62368, UL62368 standards



Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) 3D Impression Drawing (.stp) Certification Datasheet Sample
WRB1203SD-1WR2 1 9~18 3.3 1 1500 DIP 14.00*14.00*9.00 - CE WRB1203SD-1WR2
WRB1203SD-3WR2 3 9~18 3.3 1 1500 DIP 14.00*14.00*9.00 WRB_SD-3WR2.stp - WRB1203SD-3WR2
WRB1203ST-1WR2 1 9~18 3.3 1 1500 SMD 15.00*14.00*9.10 - CE WRB1203ST-1WR2
WRB1203ST-3WR2 3 9~18 3.3 1 1500 SMD 15.00*14.00*9.10 WRB_ST-3WR2.stp - WRB1203ST-3WR2
WRB1205SD-1WR2 1 9~18 5 1 1500 DIP 14.00*14.00*9.00 - CE WRB1205SD-1WR2
WRB1205SD-3WR2 3 9~18 5 1 1500 DIP 14.00*14.00*9.00 WRB_SD-3WR2.stp - WRB1205SD-3WR2
WRB1205ST-1WR2 1 9~18 5 1 1500 SMD 15.00*14.00*9.10 - CE WRB1205ST-1WR2
WRB1205ST-3WR2 3 9~18 5 1 1500 SMD 15.00*14.00*9.10 WRB_ST-3WR2.stp - WRB1205ST-3WR2
WRB1212SD-1WR2 1 9~18 12 1 1500 DIP 14.00*14.00*9.00 - CE WRB1212SD-1WR2
WRB1212SD-3WR2 3 9~18 12 1 1500 DIP 14.00*14.00*9.00 WRB_SD-3WR2.stp - WRB1212SD-3WR2
WRB1212ST-1WR2 1 9~18 12 1 1500 SMD 15.00*14.00*9.10 - CE WRB1212ST-1WR2
WRB1212ST-3WR2 3 9~18 12 1 1500 SMD 15.00*14.00*9.10 WRB_ST-3WR2.stp - WRB1212ST-3WR2
WRB1215SD-1WR2 1 9~18 15 1 1500 DIP 14.00*14.00*9.00 - CE WRB1215SD-1WR2
WRB1215SD-3WR2 3 9~18 15 1 1500 DIP 14.00*14.00*9.00 WRB_SD-3WR2.stp - WRB1215SD-3WR2
WRB1215ST-1WR2 1 9~18 15 1 1500 SMD 15.00*14.00*9.10 - CE WRB1215ST-1WR2
WRB1215ST-3WR2 3 9~18 15 1 1500 SMD 15.00*14.00*9.10 WRB_ST-3WR2.stp - WRB1215ST-3WR2
WRB1224SD-1WR2 1 9~18 24 1 1500 DIP 14.00*14.00*9.00 - CE WRB1224SD-1WR2
WRB1224SD-3WR2 3 9~18 24 1 1500 DIP 14.00*14.00*9.00 WRB_SD-3WR2.stp - WRB1224SD-3WR2
WRB1224ST-1WR2 1 9~18 24 1 1500 SMD 15.00*14.00*9.10 - CE WRB1224ST-1WR2
WRB1224ST-3WR2 3 9~18 24 1 1500 SMD 15.00*14.00*9.10 WRB_ST-3WR2.stp - WRB1224ST-3WR2
WRB2403SD-1WR2 1 18~36 3.3 1 1500 DIP 14.00*14.00*9.00 - CE WRB2403SD-1WR2
WRB2403SD-3WR2 3 18~36 3.3 1 1500 DIP 14.00*14.00*9.00 WRB_SD-3WR2.stp - WRB2403SD-3WR2
WRB2403ST-1WR2 1 18~36 3.3 1 1500 SMD 15.00*14.00*9.10 - CE WRB2403ST-1WR2
WRB2403ST-3WR2 3 18~36 3.3 1 1500 SMD 15.00*14.00*9.10 WRB_ST-3WR2.stp - WRB2403ST-3WR2
WRB2405SD-1WR2 1 18~36 5 1 1500 DIP 14.00*14.00*9.00 - CE WRB2405SD-1WR2
WRB2405SD-3WR2 3 18~36 5 1 1500 DIP 14.00*14.00*9.00 WRB_SD-3WR2.stp - WRB2405SD-3WR2
WRB2405ST-1WR2 1 18~36 5 1 1500 SMD 15.00*14.00*9.10 - CE WRB2405ST-1WR2
WRB2405ST-3WR2 3 18~36 5 1 1500 SMD 15.00*14.00*9.10 WRB_ST-3WR2.stp - WRB2405ST-3WR2
WRB2412SD-1WR2 1 18~36 12 1 1500 DIP 14.00*14.00*9.00 - CE WRB2412SD-1WR2
WRB2412SD-3WR2 3 18~36 12 1 1500 DIP 14.00*14.00*9.00 WRB_SD-3WR2.stp - WRB2412SD-3WR2
WRB2412ST-1WR2 1 18~36 12 1 1500 SMD 15.00*14.00*9.10 - CE WRB2412ST-1WR2
WRB2412ST-3WR2 3 18~36 12 1 1500 SMD 15.00*14.00*9.10 WRB_ST-3WR2.stp - WRB2412ST-3WR2
WRB2415SD-1WR2 1 18~36 15 1 1500 DIP 14.00*14.00*9.00 - CE WRB2415SD-1WR2
WRB2415SD-3WR2 3 18~36 15 1 1500 DIP 14.00*14.00*9.00 WRB_SD-3WR2.stp - WRB2415SD-3WR2
WRB2415ST-1WR2 1 18~36 15 1 1500 SMD 15.00*14.00*9.10 - CE WRB2415ST-1WR2
WRB2415ST-3WR2 3 18~36 15 1 1500 SMD 15.00*14.00*9.10 WRB_ST-3WR2.stp - WRB2415ST-3WR2
WRB2424SD-1WR2 1 18~36 24 1 1500 DIP 14.00*14.00*9.00 - CE WRB2424SD-1WR2
WRB2424SD-3WR2 3 18~36 24 1 1500 DIP 14.00*14.00*9.00 WRB_SD-3WR2.stp - WRB2424SD-3WR2
WRB2424ST-1WR2 1 18~36 24 1 1500 SMD 15.00*14.00*9.10 - CE WRB2424ST-1WR2
WRB2424ST-3WR2 3 18~36 24 1 1500 SMD 15.00*14.00*9.10 WRB_ST-3WR2.stp - WRB2424ST-3WR2
