High Efficiency Non-isolated DC-DC Converter——K78xx-2000R3 Series

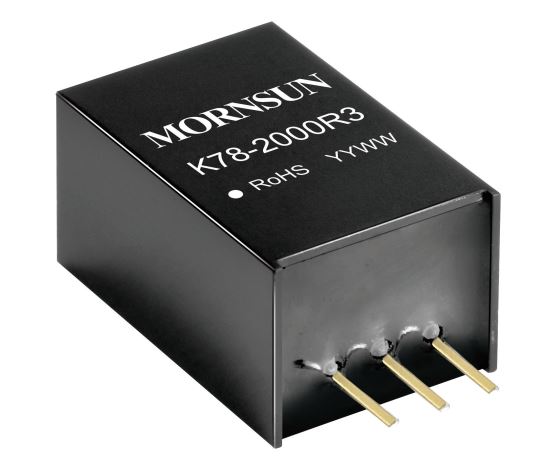

    MORNSUN adds a new switching regulator series K78xx-2000R3 rated at 2A to its non-isolated DC-DC converter family, which is designed to be a drop-in alternative to traditional 78xx series three-terminal linear regulators.
    The series features an ultra-wide input voltage range of 6-36V, 0.1mA ultra-low no load input current, continuous short-circuit protection, low ripple noise (typ.: 30mV), etc.. The new 2A series can also accommodate operating temperature from -40°C to +85°C.
    Besides, this series delivers efficiencies up to 95%, eliminates the need for a heat sink, cuts additional design space and installation cost, making it suitable for use in industrial control, medical, mining, railway and other related industries.

Features:
High efficiency up to 95%
▶ No-load input current as low as 0.1mA
▶ Operating temperature range: -40℃ to +85℃
▶ Output short circuit protection
▶ Pin-out compatible with LM78XX linear regulators

▶ Meets EN62368 standards(Pending)


Please refer to the technical manual for specific product parameters:

Series Vin(VDC) Vout(VDC) Iout(mA) No. of Outputs Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
K7802-2000R3 4.5~36 2.5 2000 1 SIP 11.50*9.00*17.50 Footprint PCB Symbol CE K7802-2000R3
K7803-2000R3 6~36 3.3 2000 1 SIP 11.50*9.00*17.50 Footprint PCB Symbol CE K7803-2000R3
K7803-2000R3L 6~36 3.3 2000 1 SIP(Bent foot) 11.50*9.00*17.50 3D MODEL CE K7803-2000R3L
K7805-2000R3 8~36 5 2000 1 SIP 11.50*9.00*17.50 Footprint PCB Symbol CE K7805-2000R3
K7805-2000R3L 8~36 5 2000 1 SIP(Bent foot) 11.50*9.00*17.50 3D MODEL CE K7805-2000R3L
K7809-2000R3 13~36 9 2000 1 SIP 11.50*9.00*17.50 Footprint PCB Symbol CE K7809-2000R3
K7812-2000R3 16~36 12 2000 1 SIP 11.50*9.00*17.50 Footprint PCB Symbol CE K7812-2000R3
K7812-2000R3L 16~36 12 2000 1 SIP(Bent foot) 11.50*9.00*17.50 3D MODEL CE K7812-2000R3L
K7815-2000R3 18~36 15 2000 1 SIP 11.50*9.00*17.50 Footprint PCB Symbol CE K7815-2000R3
