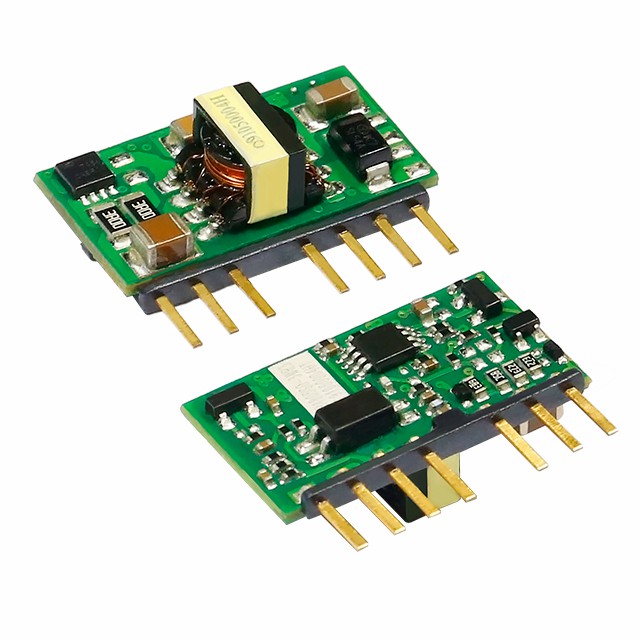

VCB48_SO-3WR3

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

MORNSUN_DC/DC - Wide Input Converter_VCB48_SO-3WR3
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
VCB4805SO-3WR3 3 48(36-75) 5 1 1500VDC SIP 22.00*8.20*12.80
VCB4812SO-3WR3 3 48(36-75) 12 1 1500VDC SIP 22.00*8.20*12.80
VCB4815SO-3WR3 3 48(36-75) 15 1 1500VDC SIP 22.00*8.20*12.80
VCB4824SO-3WR3 3 48(36-75) 24 1 1500VDC SIP 22.00*8.20*12.80

* For reference only. The detailed info please refer to the datasheet.
