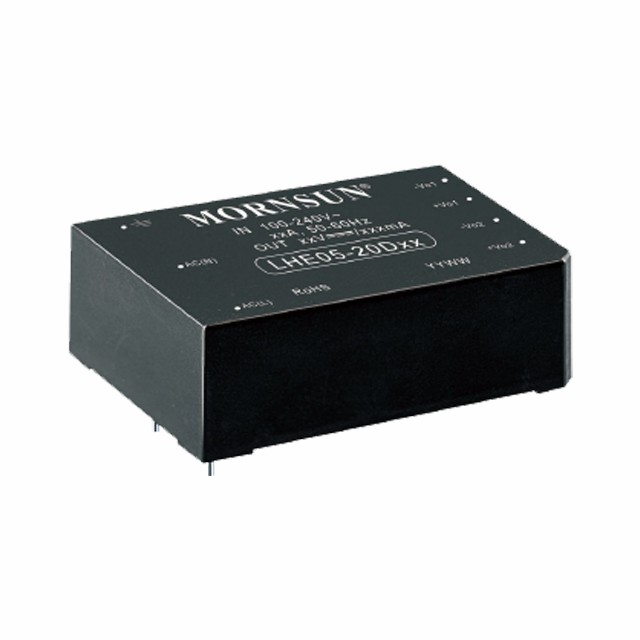

LHE05-20Dxx

Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.

Features

LHE05-20Dxx series is one of Mornsun’s compact size multiple output power converters. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability and reinforce insulation. It offers good EMC performance, and is widely used in industrial, office and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

MORNSUN_AC/DC - On-board Converter Module_LHE05-20Dxx
MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample
LHE05-20D0505-01 5 85-264 100-370 5,5 900mA,100mA 2 4000VAC DIP 48.50*36.00*20.50
-
LHE05-20D0512-01 5 85-264 100-370 5,12 750mA,100mA 2 4000VAC DIP 48.50*36.00*20.50
-
LHE05-20D0515-01 5 85-264 100-370 5,15 700mA,100mA 2 4000VAC DIP 48.50*36.00*20.50
-
LHE05-20D0524-01 5.4 85-264 100-370 5,24 600mA,100mA 2 4000VAC DIP 48.50*36.00*20.50
-

* For reference only. The detailed info please refer to the datasheet.
