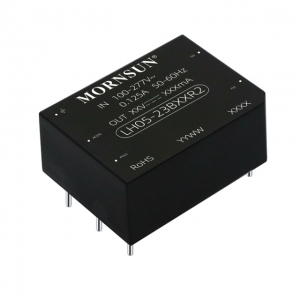

LH05-23BxxR2
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
LH05-23BxxR2seriesisoneofMornsun’scompactsizepowerconverter.ItfeaturesuniversalACinputandatthesametimeacceptsDCinput voltage,lowpowerconsumption,highefficiency,highreliability,reinforcedisolation.ItoffersgoodEMCperformancecompliantto IEC/EN61000-4andCISPR32/EN55032.Theconvertersarewidelyusedinindustrial,officeandcivilapplications.ForextremelyharshEMC environment,werecommendusingtheapplicationcircuitshowinDesignReferenceofthisdatasheet.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LH05-23B03R2 | 4.12 | 85-305 | 100-430 | 3.3 | 1250mA | 1 | 4000VAC | DIP | 48.5*36.0*20.5 | ||||
| LH05-23B09R2 | 4.95 | 85-305 | 100-430 | 9 | 550mA | 1 | 4000VAC | DIP | 48.5*36.0*20.5 | ||||
| LH05-23B15R2 | 4.95 | 85-305 | 100-430 | 15 | 330mA | 1 | 4000VAC | DIP | 48.5*36.0*20.5 | ||||
| LH05-23B05R2 | 5 | 85-305 | 100-430 | 5 | 1000mA | 1 | 4000VAC | DIP | 48.5*36.0*20.5 | ||||
| LH05-23B12R2 | 5.04 | 85-305 | 100-430 | 12 | 420mA | 1 | 4000VAC | DIP | 48.5*36.0*20.5 | ||||
| LH05-23B24R2 | 5.52 | 85-305 | 100-430 | 24 | 230mA | 1 | 4000VAC | DIP | 48.5*36.0*20.5 |
* For reference only. The detailed info please refer to the datasheet.
