480/960W High-reliability 3-Phase DIN rail Power Supplies – LITF Series
MORNSUN's High-reliability DIN rail power supply LITF series are launched to meet a rapid rise in market demand for high-end applications. These products cover the power of 480W and 960W, and they both provide an output voltage of 24, 36, and 48V.
LITF480-26Bxx and LITF960-26Bxx feature cost-effectiveness, high efficiency, high reliability, low standby power consumption, and high isolation voltage up to 4000VAC. They are widely used in EV charging station, nuclear power, wind power, petrochemical, metallurgical, and other high-end/ precision manufacturing fields.
Advantages
1. High performance
① Universal 3x320-600VAC or 450-800VDC Input voltage (two-phase or three-phase are available)
② High efficiency of up to 95.6%
③ Active PFC, PF＞0.95
④ Operating temperature range: -30℃ to +70℃, 60℃ @100% load without derating
⑤ 150% peak load capability, OVC Ⅲ (UL61010, 2000m)
⑥ Input inrush current as low as 6A
⑦ Intelligent functions: DC OK, RS485 communication, PS ON, Supporting parallel (2+1 current sharing) and series application
2. High reliability
① Comply with ANSI/ISA 71.04-2013 Level G3, can be used in the highly polluted environments
② High isolation voltage up to 4000VAC
③ 3-year warranty, operating altitude up to 5000m
④ Anti-backflow, built-in fuse, and conformal coating protection on each PCB side; Pass the continuous 16-hour grade salt-spray test; stable operated in extremely harsh environments, such as chilly seas or barren desert
⑤ Comply with IEC/EN/UL/BSEN62368, UL/EN61010, UL508 standards
3. Thoughtful designs
① One-piece screw terminal for a secure installation
② Hexagonal Hole Perforated design to expand the heat dissipation area
③ Attached datasheet in QR code for easy access
④ Highlight LED showing the work status clearly
⑤ Metal buckles at the back to support forward/reverse mounting
4. Systematized production management
① Unique QR code/SN for product tracking
② Quality indicators upgraded, such as defective rate control or standardized look control

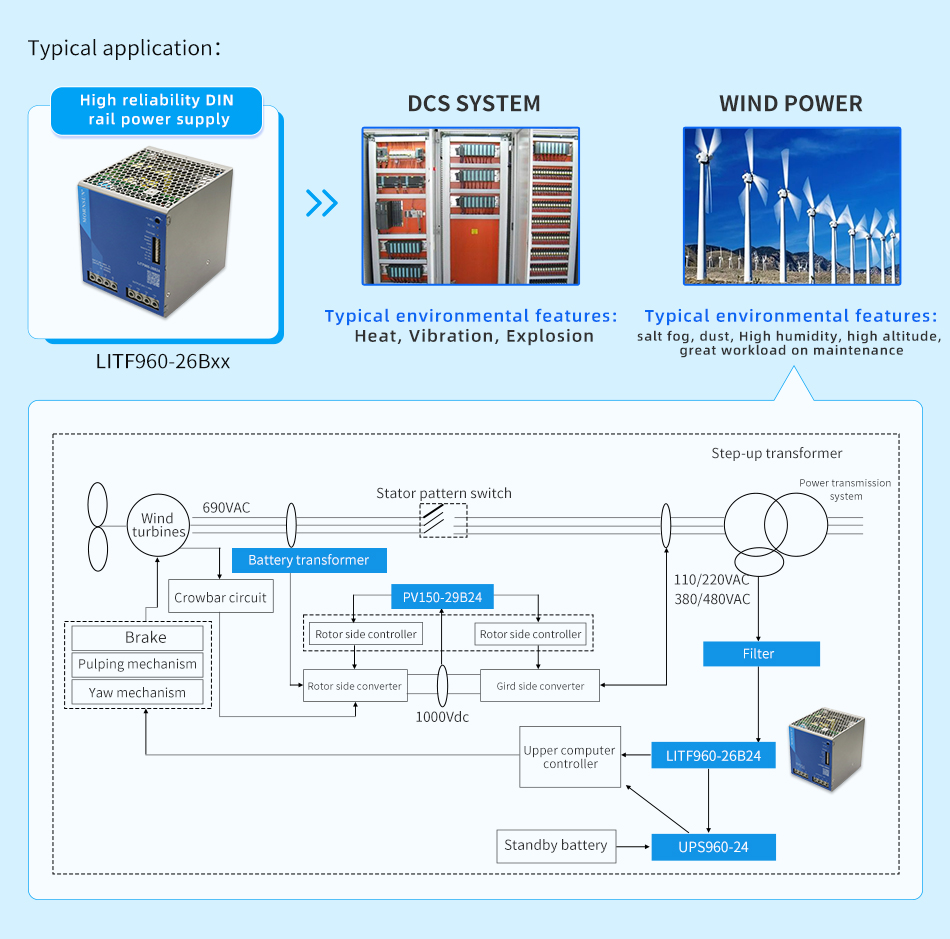

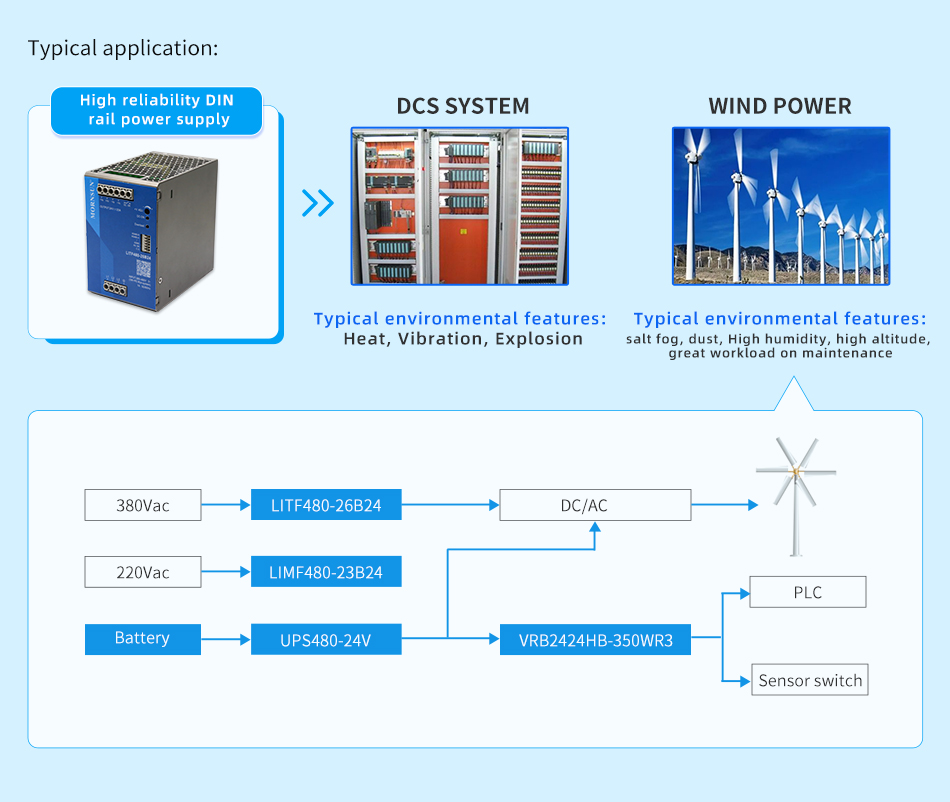

Applications
These series can be widely used in applications with strict requirements for reliability and better performance, such as EV Charging station, nuclear power, wind power, petrochemical, metallurgical, and other high-end/ precision manufacturing fields.
MORNSUN is committed to providing power supplies with high stability, high anti-interference, and high electrical performance to high-end applications.
The products should be used in natural air cooling environment, if used in a closed environment, please contact our FAE team.
Features
Wide input voltage range: 3x320-600VAC/450 - 800VDC
Efficiency up to 95.6%
Operating temperature range: -30℃ to +70℃, 60℃ @100% load without derating
Safety according to ANSI/ISA 71.04-2013 G3 anticorrosion test
150% peak load capability
DC OK Function
High isolation voltage up to 4000VAC, OVC III
3-year warranty, operating altitude up to 5000m
Output short circuit, over-current (Constant current mode), over-voltage, over-temperature protection
Active PFC, PF＞0.95
RS485 Communication, remote shutdown (PS ON), Supporting parallel (2+1 current sharing) and series applications
Salt-spray proof, anti-backflow, built-in fuse, and conformal coating protection
Comply with IEC/EN/UL/BSEN62368, UL/EN61010, and UL508 standards
