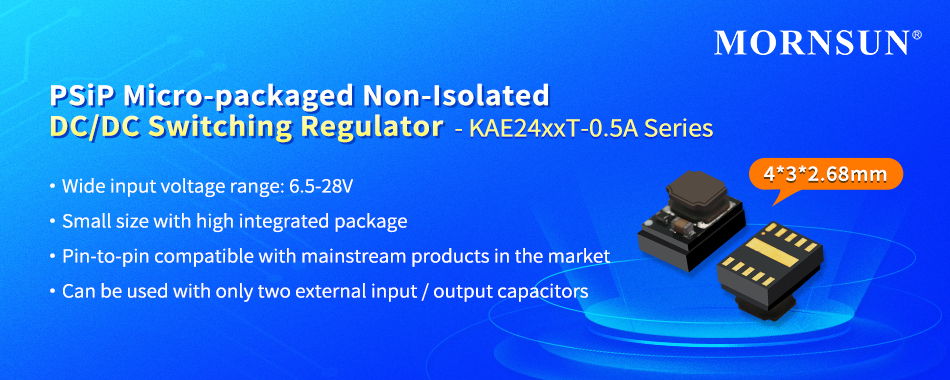

PSiP Micro-packaged Non-Isolated DC/DC Switching Regulator - KAE24xxT-0.5A Series

PSiP Micro-packaged Non-Isolated DC/DC Switching Regulator - KAE24xxT-0.5A Series.jpg

MORNSUN is pleased to introduce the NEW KAE24xxT-0.5A Series Power Supply in Package (PSiP). With a compact size of 4*3*2.68mm, KAE24xxT-0.5A is an optimal choice of non-isolated DC/DC switching regulator for space-limited applications requiring high efficiency.

With an input voltage range of 6.5V to 28V and a maximum output current of 500mA, the KAE24_T-0.5A series provides output voltages of 3.3V and 5V with only two external input/output capacitors.


1. Ultra-small Size

Ultra-small design of 4*3*2.68mm reduces the board area and improves space utilization. Ideal for space-limited applications, and offers a stable voltage output.

2. Pin-to-pin

KAE24xxT-0.5A series is compatible with mainstream products on the market.


KAE24xxT-0.5A Series is widely used in space-limited applications such as sensors, transmitters, and grid infrastructure.

KAE24xxT-0.5A Series is widely used in space-limited applications.jpg


  • 6.5V to 28V wide operating input voltage

  • 3.3V or 5V fixed output voltage

  • 0.5A Output current

  • Only input and output capacitors are needed for module

  • Miniature package 4 × 3 × 2.68mm

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) Iout No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
KAE2403T-0.5A 1.65 24(6.5-28) 3.3 500mA 1 DFN 4.00*3.00*2.68
KAE2405T-0.5A 2.5 24(6.5-28) 5 500mA 1 DFN 4.00*3.00*2.68
