305V input 75W AC/DC enclosed power supply LMF75-23Bxx with PFC

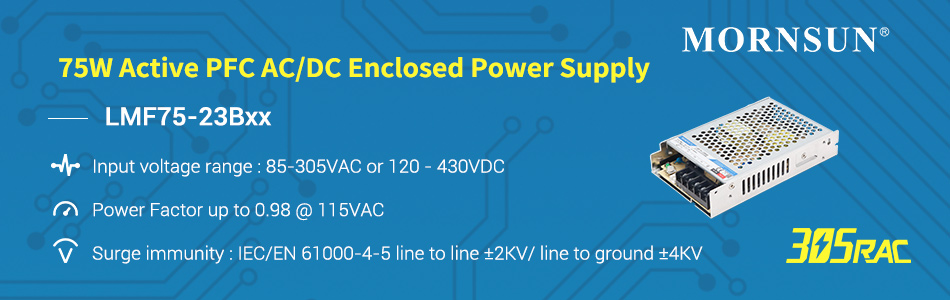

MORNSUN 305V 305RAC PFC 75W AC/DC enclosed switching mode power supply LMF75-23Bxx.jpg


To meet the market’s demand, MORNSUN released a new enclosed switching power supply series LMF75-23Bxx with active PFC in 305RAC family, which can be widely used in security, intelligent buildings, industrial control, communications and other industrial fields.The active PFC LMF75-23Bxx series has a PF up to 0.98, features a compact size, wide input voltage range of 85-305Vac, accepts AC or DC input. The series also meets IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, GB4943 standards. Protections of output short circuit, over-current, over-voltage, over-temperature are included.


Advantages

1)High reliability

a.  input range of 85-305Vac suitable for a wide range of applications

b. Surge immunity: IEC/EN 61000-4-5 line to line ±2KV/ line to ground ±4KV

c. Output short circuit, over-current, over-voltage, over-temperature protections


2)Superior performance

a. Operating temperature range -30℃ to +70℃

b. Harmonic Current meets IEC/EN61000-3-2 CLASS A

c. Remote ON-OFF control


Applications

It can be widely used in security, intelligent buildings, industrial control, communications and other industrial fields.

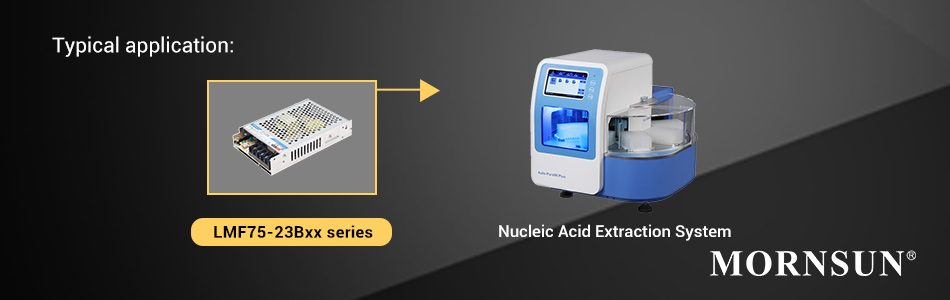

MORNSUN 305V 305RAC PFC 75W AC/DC enclosed switching mode power supply LMF75-23Bxx.jpg


Features

● Input voltage range: 85-305V AC or 120 - 430VDC

● Operating temperature range -30℃ to +70℃

● Dimensions of 159.00 x 97.00 x 30.00mm

● Efficiency up to 88%

● 3-year warranty

● Output short circuit, over-current, over-voltage, over-temperature protections

● Surge immunity: IEC/EN 61000-4-5 line to line ±2KV/ line to ground ±4KV

● Power Factor up to 0.98 @ 115Vac

● Harmonic Current meets IEC/EN61000-3-2 CLASS A

● Remote ON-OFF control


Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) Footprint & 3D Certification Datasheet Sample Buy
LMF75-23B05 75 85-305VAC/120-430VDC 5V/15A -30℃ to +70℃ 1 81 4000
LMF75-23B12 75.6 85-305VAC/120-430VDC 12V/6.3A -30℃ to +70℃ 1 84 4000
LMF75-23B15 75 85-305VAC/120-430VDC 15V/5A -30℃ to +70℃ 1 85 4000
LMF75-23B24 76.8 85-305VAC/120-430VDC 24V/3.2A -30℃ to +70℃ 1 86 4000
LMF75-23B48 76.8 85-305VAC/120-430VDC 48V/1.6A -30℃ to +70℃ 1 88 4000
