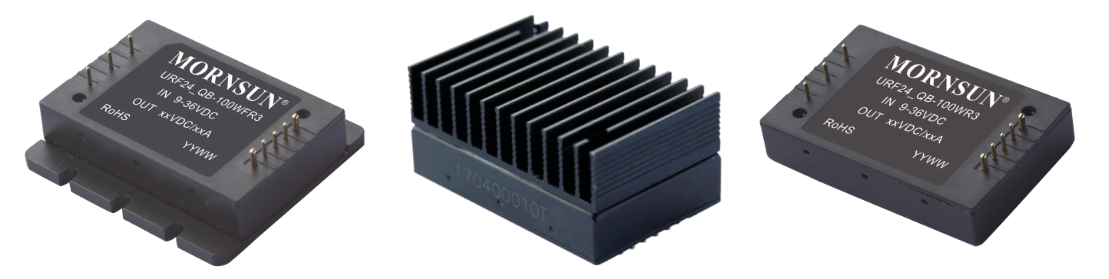

100W 9-36V Input DC/DC Converter URF24_QB-100WR3 Series


MORNSUN extended 24V input for 4:1 isolated regulated DC/DC converters URF_QB-100WR3 series.


New URF24_QB-100WR3 series provide an input range of 9-36VDC and an isolation of 2250VDC and input UVP, SCP, OCP, OVP and OTP.


International standard pin-out (1/4 brick) makes connecting piece connection and heat sink connection possible.


In addition to traditional industries, such as industrial, communications, power grid and rail transportation, they are applicable to emerging manufacturing industries, for instance intelligent manufacturing and intelligent robots, and new energy industries including wind energy controllers, electric vehicles, etc.


100W 9-36V Input DC/DC Converter URF24_QB-100WR3 Series




Features:

◆ Ultra wide input voltage range: 9-36VDC
◆ Isolation voltage: 2250VDC
◆ Operating temperature range: -40 to +85℃
◆ Input under-voltage protection, output short circuit, over-current, over–voltage, over-temperature protection
◆ International standard pin-out: 1/4 brick, connecting piece and heat sink package available
◆ Meet EN62368 & EN50155


* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
URF2405QB-100WFR3 100 24(9-36) 5 1 2250VDC DIP(With aluminum baseplate) 62.0*56.0*14.6
URF2405QB-100WHR3 100 24(9-36) 5 1 2250VDC DIP(With heatsink) 61.8*40.2*27.7
URF2405QB-100WHR3A5 100 24(9-36) 5 1 2250VDC Chassis(With heatsink) 135.00*70.00*36.20
URF2405QB-100WHR3A6 100 24(9-36) 5 1 2250VDC DIN-Rail(With heatsink) 137.00*70.00*37.20
URF2405QB-100WR3 100 24(9-36) 5 1 2250VDC DIP 61.8*40.2*12.7
URF2405QB-100WR3A5 100 24(9-36) 5 1 2250VDC Chassis 135.00*70.00*22.6 -
URF2405QB-100WR3A6 100 24(9-36) 5 1 2250VDC DIN-Rail 137.00*70.00*28.10 -
URF2412QB-100WFR3 100 24(9-36) 12 1 2250VDC DIP(With aluminum baseplate) 62.0*56.0*14.6
URF2412QB-100WHR3 100 24(9-36) 12 1 2250VDC DIP(With heatsink) 61.8*40.2*27.7
URF2412QB-100WHR3A5 100 24(9-36) 12 1 2250VDC Chassis(With heatsink) 135.00*70.00*36.20
URF2412QB-100WHR3A6 100 24(9-36) 12 1 2250VDC DIN-Rail(With heatsink) 137.00*70.00*37.20
URF2412QB-100WR3 100 24(9-36) 12 1 2250VDC DIP 61.8*40.2*12.7
URF2412QB-100WR3A5 100 24(9-36) 12 1 2250VDC Chassis 135.00*70.00*22.6 -
URF2412QB-100WR3A6 100 24(9-36) 12 1 2250VDC DIN-Rail 137.00*70.00*28.10 -
URF2415QB-100WFR3 100 24(9-36) 15 1 2250VDC DIP(With aluminum baseplate) 62.0*56.0*14.6
URF2415QB-100WHR3 100 24(9-36) 15 1 2250VDC DIP(With heatsink) 61.8*40.2*27.7
URF2415QB-100WHR3A5 100 24(9-36) 15 1 2250VDC Chassis(With heatsink) 135.00*70.00*36.20
URF2415QB-100WHR3A6 100 24(9-36) 15 1 2250VDC DIN-Rail(With heatsink) 137.00*70.00*37.20
URF2415QB-100WR3 100 24(9-36) 15 1 2250VDC DIP 61.8*40.2*12.7
URF2415QB-100WR3A5 100 24(9-36) 15 1 2250VDC Chassis 135.00*70.00*22.6 -
URF2415QB-100WR3A6 100 24(9-36) 15 1 2250VDC DIN-Rail 137.00*70.00*28.10 -
URF2424QB-100WFR3 100 24(9-36) 24 1 2250VDC DIP(With aluminum baseplate) 62.0*56.0*14.6
URF2424QB-100WHR3 100 24(9-36) 24 1 2250VDC DIP(With heatsink) 61.8*40.2*27.7
URF2424QB-100WHR3A5 100 24(9-36) 24 1 2250VDC Chassis(With heatsink) 135.00*70.00*36.20
URF2424QB-100WHR3A6 100 24(9-36) 24 1 2250VDC DIN-Rail(With heatsink) 137.00*70.00*37.20
URF2424QB-100WR3 100 24(9-36) 24 1 2250VDC DIP 61.8*40.2*12.7
URF2424QB-100WR3A5 100 24(9-36) 24 1 2250VDC Chassis 135.00*70.00*22.6 -
URF2424QB-100WR3A6 100 24(9-36) 24 1 2250VDC DIN-Rail 137.00*70.00*28.10 -
URF2428QB-100WFR3 100 24(9-36) 28 1 2250VDC DIP(With aluminum baseplate) 62.0*56.0*14.6
URF2428QB-100WHR3 100 24(9-36) 28 1 2250VDC DIP(With heatsink) 61.8*40.2*27.7
URF2428QB-100WHR3A5 100 24(9-36) 28 1 2250VDC Chassis(With heatsink) 135.00*70.00*36.20
URF2428QB-100WHR3A6 100 24(9-36) 28 1 2250VDC DIN-Rail(With heatsink) 137.00*70.00*37.20
URF2428QB-100WR3 100 24(9-36) 28 1 2250VDC DIP 61.8*40.2*12.7
URF2428QB-100WR3A5 100 24(9-36) 28 1 2250VDC Chassis 135.00*70.00*22.6 -
URF2428QB-100WR3A6 100 24(9-36) 28 1 2250VDC DIN-Rail 137.00*70.00*28.10 -
URF2448QB-100WFR3 100 24(9-36) 48 1 2250VDC DIP(With aluminum baseplate) 62.0*56.0*14.6
URF2448QB-100WHR3 100 24(9-36) 48 1 2250VDC DIP(With heatsink) 61.8*40.2*27.7
URF2448QB-100WHR3A5 100 24(9-36) 48 1 2250VDC Chassis(With heatsink) 135.00*70.00*36.20
URF2448QB-100WHR3A6 100 24(9-36) 48 1 2250VDC DIN-Rail(With heatsink) 137.00*70.00*37.20
URF2448QB-100WR3 100 24(9-36) 48 1 2250VDC DIP 61.8*40.2*12.7
URF2448QB-100WR3A5 100 24(9-36) 48 1 2250VDC Chassis 135.00*70.00*22.6 -
URF2448QB-100WR3A6 100 24(9-36) 48 1 2250VDC DIN-Rail 137.00*70.00*28.10 -
