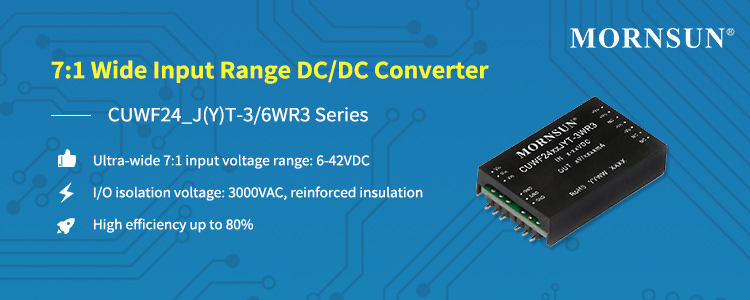

6-42VDC of 7:1 Wide Input Range DC/DC Converter ——CUWF24_J(Y)T-3/6WR3 Series

MORNSUN 6-42VDC of 7:1 Wide Input Range DC/DC Converter ——CUWF24_J(Y)T-3/6WR3 Series.jpg


Introduction of DC/DC Converter ——CUWF24_J(Y)T-3/6WR3 Series

To meet the automotive market's requirements for high withstand voltage, excellent EMI, and SMD packaging of power modules, MORNSUN develops the high-isolation DC/DC converter CUWF24_J(Y)T-3/6WR3 series for the automotive industry. It features an ultra-wide input voltage range of 6-42VDC, isolation voltage of 3000VAC, reinforced insulation, efficiency up to 80%, and operating temperature range of -40°C to +105°C (derating starts at 85°C).

The height of this series is as low as 8.5 mm, the creepage distance is 4.5 mm, and the electrical clearance is 4.2 mm. It is controlled in accordance with the IATF16949 system, and it meets AEC-Q100 automotive standard.


Application of DC/DC Converter ——CUWF24_J(Y)T-3/6WR3 Series


It can be widely used in the automotive industry, industrial control, electric power, instrumentation, communication, and other fields.

When it is used in a super capacitor car, as the main power supply,  CUWF2405J(Y)T-6WR3 powers monitoring board, which can monitor the heat change during the charging and discharging process of the super capacitor and the voltage deviation during the working process of the capacitor in real-time.


MORNSUN 6-42VDC of 7:1 Wide Input Range DC/DC Converter ——CUWF24_J(Y)T-3/6WR3 Series.jpg


Features of DC/DC Converter ——CUWF24_J(Y)T-3/6WR3 Series

  Ultra-wide 7:1 input voltage range:6-42VDC

  I/O isolation voltage: 3000VAC, reinforced insulation

  High efficiency up to 80%

  Input under-voltage protection, output short circuit, over-current, over–voltage protection

  Creepage distance is 4.5mm, clearance is 4.2mm

  Operating ambient temperature range: -40 to +105

  EMI meets automotive standards EN55025/CISPR25 standard level 4

  Meets AEC-Q100 standards(under testing)

Production process meets IATF16949 system







Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample
CUWF2405JT-3WR3 3 6~42 5 1 3000VAC SMD(without housing) 43.68*23.0*10 - - CUWF2405JT-3WR3
CUWF2405JT-6WR3 6 6~42 5 1 3000VAC SMD(without housing) 43.68*23.0*10 - - CUWF2405JT-6WR3
CUWF2405JYT-3WR3 3 6~42 5 1 3000VAC SMD(with housing) 43.68*25.0*10.64 - - CUWF2405JYT-3WR3
CUWF2405JYT-6WR3 6 6~42 5 1 3000VAC SMD(with housing) 43.68*25.0*10.64 - - CUWF2405JYT-6WR3
CUWF2412JT-3WR3 3 6~42 12 1 3000VAC SMD(without housing) 43.68*23.0*10 - - CUWF2412JT-3WR3
CUWF2412JT-6WR3 6 6~42 12 1 3000VAC SMD(without housing) 43.68*23.0*10 - - CUWF2412JT-6WR3
CUWF2412JYT-3WR3 3 6~42 12 1 3000VAC SMD(with housing) 43.68*25.0*10.64 - - CUWF2412JYT-3WR3
CUWF2412JYT-6WR3 6 6~42 12 1 3000VAC SMD(with housing) 43.68*25.0*10.64 - - CUWF2412JYT-6WR3
CUWF2415JT-3WR3 3 6~42 15 1 3000VAC SMD(without housing) 43.68*23.0*10 - - CUWF2415JT-3WR3
CUWF2415JT-6WR3 6 6~42 15 1 3000VAC SMD(without housing) 43.68*23.0*10 - - CUWF2415JT-6WR3
CUWF2415JYT-3WR3 3 6~42 15 1 3000VAC SMD(with housing) 43.68*25.0*10.64 - - CUWF2415JYT-3WR3
CUWF2415JYT-6WR3 6 6~42 15 1 3000VAC SMD(with housing) 43.68*25.0*10.64 - - CUWF2415JYT-6WR3
CUWF2424JT-3WR3 3 6~42 24 1 3000VAC SMD(without housing) 43.68*23.0*10 - - CUWF2424JT-3WR3
CUWF2424JT-6WR3 6 6~42 24 1 3000VAC SMD(without housing) 43.68*23.0*10 - - CUWF2424JT-6WR3
CUWF2424JYT-3WR3 3 6~42 24 1 3000VAC SMD(with housing) 43.68*25.0*10.64 - - CUWF2424JYT-3WR3
CUWF2424JYT-6WR3 6 6~42 24 1 3000VAC SMD(with housing) 43.68*25.0*10.64 - - CUWF2424JYT-6WR3
Series
CUWF2405JT-3WR3
CUWF2405JT-6WR3
CUWF2405JYT-3WR3
CUWF2405JYT-6WR3
CUWF2412JT-3WR3
CUWF2412JT-6WR3
CUWF2412JYT-3WR3
CUWF2412JYT-6WR3
CUWF2415JT-3WR3
CUWF2415JT-6WR3
CUWF2415JYT-3WR3
CUWF2415JYT-6WR3
CUWF2424JT-3WR3
CUWF2424JT-6WR3
CUWF2424JYT-3WR3
CUWF2424JYT-6WR3
