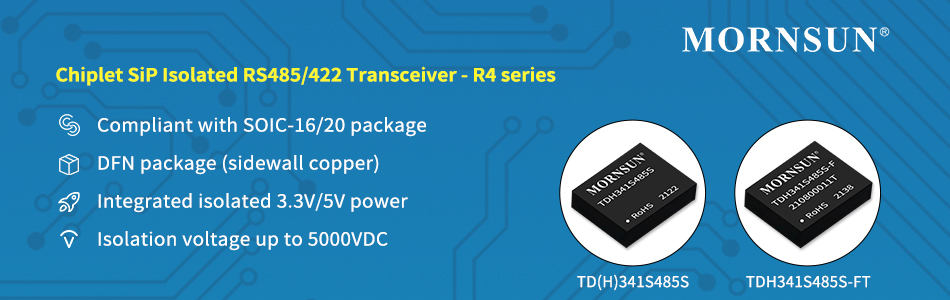

Integrated isolated 3.3V/5V power, the Chiplet RS485/422 Transceiver - R4 series

Integrated isolated 3.3V/5V power, the Chiplet RS485/422 Transceiver - R4 series.jpg

Mornsun Chiplet SiP package R4 series is designed for data bus networks, meeting the various market requirements, such as the highly integrated system. This time, Mornsun launched a series of products, including:

  • Half-duplex RS485: TD(H)341S485H(S), TD(H)541S485H-A series

  • Full-duplex RS422: TD(H)341S485S-F(F1/FT) series

  • High-rate digital isolator: TDx41S-4xxx series


Duplexer type

  • In the process of data transmission, it generally transmits in two directions.

  • Full-duplex allows the data transmitted in both directions. Similar to a phone call, the voices of both sides can be heard from each other.

  • While half-duplex is similar to speaking on a walkie-talkie, only one side of the voice is allowed to be transmitted to the other side at a time.

  • The outstanding advantage of a full-duplex over a half-duplex is that the transmission mode can be used for point-to-point connections without conflict.

Duplexer type introduction.jpg

Based on the on-sale half-duplex products, MORNSUN expands and develops new products that can meet the use of various bus networks so that customers can select flexibly for different working conditions.


Applications

It can be widely used in industrial automation, building automation, smart meters, photovoltaic inverters, motor drive, etc.

Applications of R4 series.jpg


Features

  • Ultra-small, ultra-thin, chip-scale (compatible with SOIC-16/20 package)

  • DFN package, sidewall copper

  • Integrated isolated 3.3V/5V power

  • Isolation voltage up to 5000VDC

  • Baud rate up to 150Mbps

  • (422/485: 1M/20Mbps, Digital isolator: 150Mbps)

  • CMTI >25kV/μs

  • 485/422 transceivers support 1/8 Unit Load: Up to 256 nodes on a bus

  • Industrial operating temperature range: -40℃ to +105℃


Selection Guide

A quick referance for R4 products.jpg

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power supply range(V) No of Channel Output Channel Number Transmission Rate(bps) Withstand Voltage(kV rms) Default Output Package Datasheet Sample Buy
TD341S232H - - - 120K - - DFN
TD341S485S - - - 20M - - DFN
TD341S485S-F - - - 20M - - DFN
TD341S485S-F1 - - - 20M - - DFN
TD341S485S-FT - - - 20M - - DFN
TD341SCAN - - - 1M - - DFN
TD541S-40H3 4.75-5.25 4 1 150M 3.75 high DFN
TD541S-40H5 4.75-5.25 4 1 150M 3.75 high DFN
TD541S-40L3 4.75-5.25 4 1 150M 3.75 low DFN
TD541S-40L5 4.75-5.25 4 1 150M 3.75 low DFN
TD541S-41H3 4.75-5.25 4 1 150M 3.75 high DFN
TD541S-41H5 4.75-5.25 4 1 150M 3.75 high DFN
TD541S-41L3 4.75-5.25 4 1 150M 3.75 low DFN
TD541S-41L5 4.75-5.25 4 1 150M 3.75 low DFN
TD541S-42H3 4.75-5.25 4 1 150M 3.75 high DFN
TD541S-42H5 4.75-5.25 4 1 150M 3.75 high DFN
TD541S-42L3 4.75-5.25 4 1 150M 3.75 low DFN
TD541S-42L5 4.75-5.25 4 1 150M 3.75 low DFN
TD541S-43H3 4.75-5.25 4 1 150M 3.75 high DFN
TD541S-43H5 4.75-5.25 4 1 150M 3.75 high DFN
TD541S-43L3 4.75-5.25 4 1 150M 3.75 low DFN
TD541S-43L5 4.75-5.25 4 1 150M 3.75 low DFN
TD541S-44H3 4.75-5.25 4 1 150M 3.75 high DFN
TD541S-44H5 4.75-5.25 4 1 150M 3.75 high DFN
TD541S-44L3 4.75-5.25 4 1 150M 3.75 low DFN
TD541S-44L5 4.75-5.25 4 1 150M 3.75 low DFN
TDH341S232H - - - 120K - - DFN
TDH341S485S - - - 20M - - DFN
TDH341S485S-F - - - 20M - - DFN
TDH341S485S-F1 - - - 20M - - DFN
TDH341S485S-FT - - - 20M - - DFN
TDH341SCAN - - - 1M - - DFN
