85 - 305VAC Input Open-frame Power Supply - LO10-13Bxx

85 - 305VAC Input Open-frame LO10-13Bxx.jpg

Introduction of LO10-13Bxx

MORNSUN 3W、5W、15W、30W、45W、65W power range of LOxx-10Bxx has received a solid reputation for its powerful performance and cost-effective since its launch. In order to meet the requirement for wide input in different applications, the newest LO10-13Bxx series of 85-305VAC wide input voltage is launched.


LO10-13Bxx features the input range of 85 - 305VAC/100 - 430VDC, operating temperature of -25℃ to 70℃, and compact size of 60*42*19mm. EMI meets CLASS B, and it is designed to meet CE/CB/UL62368、CE/UL60335 standard. In addition, it also has output short circuits, over-current, and over-voltage protection.


Application of LO10-13Bxx

It is widely used in communication industrial control, office and civil applications, and so on.

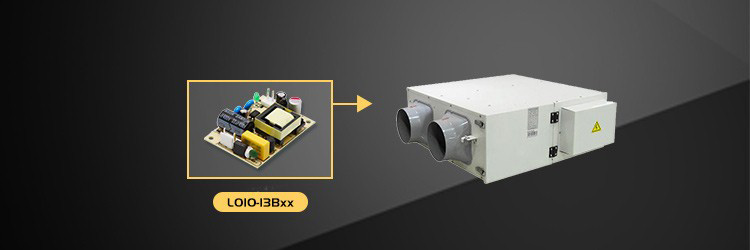

Typical application: Air Ventilation Recycle System


85 - 305VAC Input Open-frame LO10-13Bxx.jpg


Features of LO10-13Bxx

●  Universal input voltage range:85 - 305VAC/100 - 430VDC

●  Operating temperature range:-25℃ to 70℃

●  High power density:2.5*1.8 inch

●  EMI meets CLASS B

●  Designed to meet CE/CB/UL62368、CE/UL60335

●  Output short circuit, over-current & over-voltage protection




* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LO10-13B03 6.6 85-305 100-430 3.3 2000mA 1 3000VAC Open frame 60.00*42.00*16.30
LO10-13B05 10 85-305 100-430 5 2000mA 1 3000VAC Open frame 60.00*42.00*16.30
LO10-13B09 10 85-305 100-430 9 1100mA 1 3000VAC Open frame 60.00*42.00*16.30
LO10-13B12 10 85-305 100-430 12 900mA 1 3000VAC Open frame 60.00*42.00*16.30
LO10-13B15 10 85-305 100-430 15 700mA 1 3000VAC Open frame 60.00*42.00*16.30
LO10-13B24 10 85-305 100-430 24 450mA 1 3000VAC Open frame 60.00*42.00*16.30
