150 Watt Enclosed Switching Power Supply with Active PFC- LMF150-20Bxx Series

MORNSUN released a new enclosed switching power supply series LMF150-20Bxx with active PFC. The LMF150-20Bxx series features compact size, universal input voltage range of 85-264Vac, accepts AC or DC input and the PF is up to 0.99. The series also meets IEC/EN/UL62368, EN60335, GB4943 standards. Protections of output short circuit, over-current, over-voltage, over-temperature are included.


Applications of 150 Watt Enclosed Switching Power Supply with Active PFC- LMF150-20Bxx Series

Widely used in applications of industrial automation machinery, industrial control system, mechanical and electrical equipment, instrumentation, intelligent building, household appliance, etc.

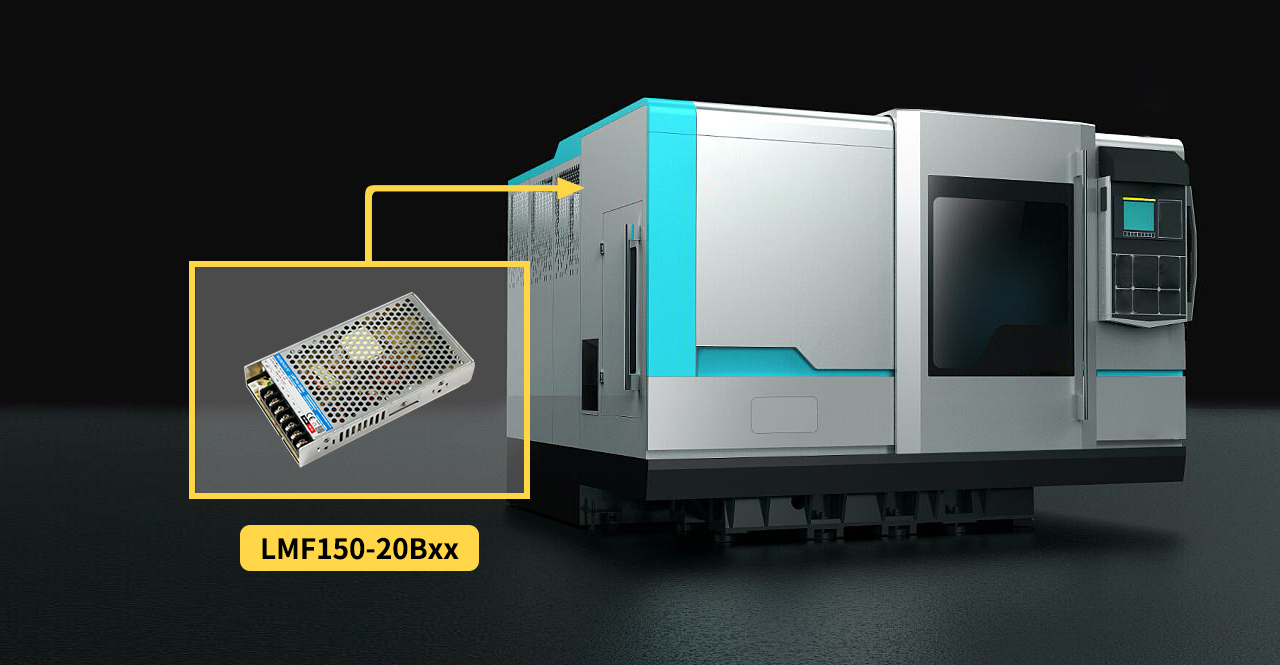

Typical application: Numerical control machine tools



Features of 150 Watt Enclosed Switching Power Supply with Active PFC- LMF150-20Bxx Series


- Universal 85 - 264V AC or 120 - 373VDC Input voltage
- Accepts AC or DC input (dual-use of same terminal)
- Compact size, 10% smaller than conventional products
- High reliability: MTBF>300K hrs
- Operating temperature range of -30℃ to +70℃
- Built-in active PFC function(up to 0.99PF)
- High I/O isolation test voltage up to 4000VAC
- Output short circuit, over-current, over-voltage, over-temperature protection(Built-in constant current limiting circuit)
- Remote ON-OFF control
- Safety according to IEC/EN/UL62368, EN60335, GB4943(CE/CCC pending)
- EMI: CISPR32/EN55032 CLASS B
- Over-voltage class Ⅲ(designed to meet EN61558)
- Withstand 300VAC surge input for 5s
- 3 years warranty
- 3-proof customization is available
- Terminals with or without cover are available




Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) Footprint & 3D Certification Datasheet Sample
LMF150-20B05 150 85~264VAC/120~373VDC 5V/30A -30℃ to +70℃ 1 87 4000 Footprint 3D MODEL CE 3C LMF150-20B05
LMF150-20B12 150 85~264VAC/120~373VDC 12V/12.5A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL CE 3C LMF150-20B12
LMF150-20B15 150 85~264VAC/120~373VDC 15V/10A -30℃ to +70℃ 1 88.5 4000 Footprint 3D MODEL CE 3C LMF150-20B15
LMF150-20B24 151.2 85~264VAC/120~373VDC 24V/6.3A -30℃ to +70℃ 1 89 4000 Footprint 3D MODEL CE 3C LMF150-20B24
LMF150-20B48 153.6 85~264VAC/120~373VDC 48V/3.2A -30℃ to +70℃ 1 90 4000 Footprint 3D MODEL CE 3C LMF150-20B48
Series
LMF150-20B05
LMF150-20B12
LMF150-20B15
LMF150-20B24
LMF150-20B48
