MORNSUN High Reliable AC/DC Converter series LD03-20BxxWG for Smart Home White Goods

MORNSUN recently launched a new AC/DC converter Series LD03-20BxxWG , which is targeted at smart home white goods. The new LD03-20BxxWG series feature compact size, high efficiency, high reliability, high cost effective, and multiple protections, which is suitable for industrial electronics devices, commercial official, smart house-white goods and consumer electronics applications.

Product advantages:

1.Meet the latest safety standards and white goods standards

 This LD03-20BxxWG series meets EN/UL62368, EN/UL60335 (white goods standards), EN/UL60950, GB4943 safety standards (CE pending)

2.Low cost, compact size and high reliability

  a.Compact size (the external EMC circuit and electrolytic capacity are not required)

  b.Meets 5000m altitude requirements
3.Superior EMC performance
  EMI performance meets CISPR30/EN55032 CLASS B
4.Green power
  Standby power consumption as low as 0.2W

Application:
Widely use in applications including industrial electronics devices, commercial official, smart home white goods and consumer electronics, such as electric rice cooker, electric oven, refrigerator, disinfection cabinet and so on.

Features:

  > Universal Input : 85 - 264VAC/120 - 373VDC

  > Operating temperature range: -25℃ to +70℃

  > Standby power consumption as low as 0.2W

  > High isolation voltage up to 4000VAC

  > Meets 5000m altitude requirements

  > Output short circuit, over current, over voltage protection

  > High efficiency and high reliability

  > Plastic case conforms with UL94V-0

  > EN/UL62368, EN/UL60335, EN/UL60950, GB4943 approval (CE pending)

  > EMI performance meets CISPR32/EN55032 CLASS B

  > 3 years warranty

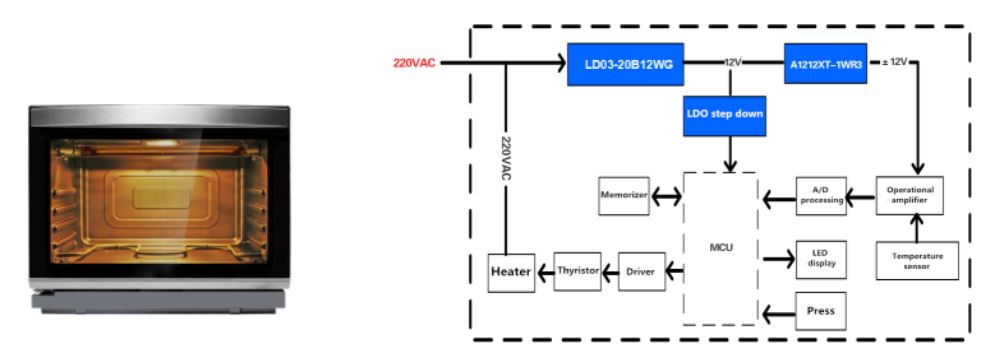

Application case:

MORNSUN High Reliable AC/DC Converter series LD03-20BxxWG for Smart Home White Goods



* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
LD03-20B05WG 3 85-264 120-373 5 0.6A 1 4000VAC DIP 32.3*27.3*21.8
LD03-20B12WG 3 85-264 120-373 12 0.25A 1 4000VAC DIP 32.3*27.3*21.8
LD03-20B24WG 3 85-264 120-373 24 0.125A 1 4000VAC DIP 32.3*27.3*21.8
