3A Output Non-Isolated Switching Regulator K78_3AR3 Series

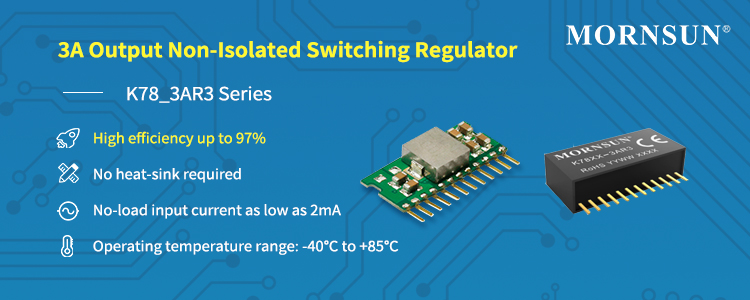

Introduction of 3A Output Non-Isolated Switching Regulator K78_3AR3 Series

3A Output Non-Isolated Switching Regulator K78_3AR3 Series

3A Output Non-Isolated Switching Regulator K78_3AR3 Series with 0.5A / 1A / 2A output received a warm response from the market since its launch because of excellent performance, high reliability, and attractive cost. To better fulfill the demand for higher current output, we are pleased to extend the K78_3AR3 with 3A output current.


K78-3AR3 features ultra-wide input voltage range of 8-36V, 2mA no-load input current, 97% efficiency and -40 to + 85 operating temperature range without heat sink. At the same time, the K78_3AR3 series has the characteristics of continuous short-circuit protection, low ripple noise (typical value 40mV) and so on. Different package of encapsulated SIP and open-frame SIP are available.


Application of 3A Output Non-Isolated Switching Regulator K78_3AR3 Series

3A Output Non-Isolated Switching Regulator K78_3AR3 Series can be used on non-isolated step-down circuit (it means that the input voltage is higher than the output voltage), universal product, and any industry.


Application of 3A Output Non-Isolated Switching Regulator K78_3AR3 Series


Features of 3A Output Non-Isolated Switching Regulator K78_3AR3 Series


 High efficiency up to 97%

●  No-load input current as low as 2mA

●  Operating temperature range: -40℃ to +85℃

●  Input voltage range: 8-36V

●  Output short-circuit protection

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) Iout No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
K7803-3AR3 9.9 8~36 3.3 3000mA 1 SIP 32.15*14.85*9.05
K78L03-3AR3 9.9 8~36 3.3 3000mA 1 SIP 30.60*12.50*5.80
K7805-3AR3 15 8~36 5 3000mA 1 SIP 32.15*14.85*9.05
K78L05-3AR3 15 8~36 5 3000mA 1 SIP 30.60*12.50*5.80
K78LX6-3AR3 19.5 10~36 6.5 3000mA 1 SIP 30.60*12.50*5.80
K78X6-3AR3 19.5 10~36 6.5 3000mA 1 SIP 32.15*14.85*9.05
K7809-3AR3 27 13~36 9 3000mA 1 SIP 32.15*14.85*9.05
K78L09-3AR3 27 13~36 9 3000mA 1 SIP 30.60*12.50*5.80
K7812-3AR3 36 16~36 12 3000mA 1 SIP 32.15*14.85*9.05
K78L12-3AR3 36 16~36 12 3000mA 1 SIP 30.60*12.50*5.80
K7815-3AR3 45 19~36 15 3000mA 1 SIP 32.15*14.85*9.05
K78L15-3AR3 45 19~36 15 3000mA 1 SIP 30.60*12.50*5.80
