4000VAC Isolated SMD Transformer for AC DC Converter lower than 5W ——TTLS05-15B12T

AC/DC Isolated SMD Transformer-TTLS05-15B12T


    MORNSUN recently launched the isolated SMD transformer for AC/DC converter lower than 5W - TTLS05-15B12T. The product is up to 4000VAC isolated voltage with EPC13 skeleton, and its operating temperature range is from -40 ° C to +110 ° C. It is a flyback transformer with a small dimension and cost-effective features.


The TTLS05-15B-T series can be used with the MORNSUN high-precision secondary feedback control IC, SCM1703A. The combination provides a wide-voltage input flyback AC DC converter module design with multiple protection and superior EMI performance.


Application of AC/DC Isolated SMD Transformer-TTLS05-15B12T

AC/DC Isolated SMD Transformer-TTLS05-15B12T widely is used in consumer electronic power supply, industrial equipment power supply, etc.

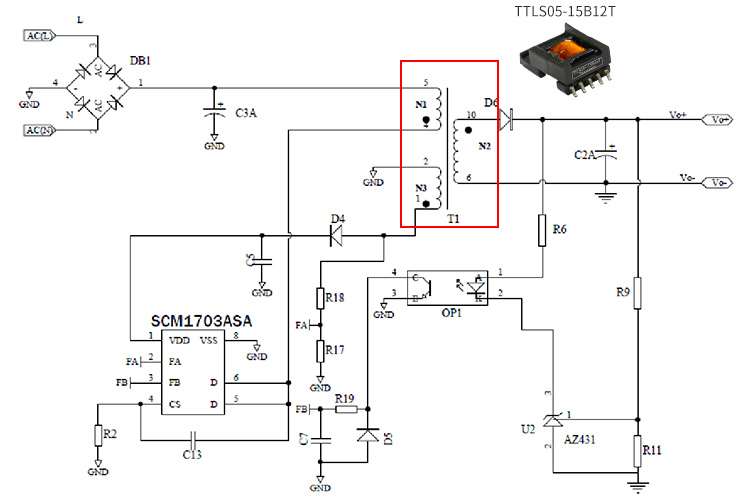

Application circuit:


Application of AC/DC Isolated SMD Transformer-TTLS05-15B12T


Features of AC/DC Isolated SMD Transformer-TTLS05-15B12T

 Input voltage:85~264VAC
 EPC13 SMD skeleton
 Meets UL/EN62368



* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Skeleton structure Topology Design Reference Footprint & 3D Markings Datasheet Sample Buy
