35-350W Enclosed Switching Power Supplies

MORNSUN launched a new line of enclosed switching power supplies - LM series, which offers power of 35W, 50W, 75W, 100W, 150W, 200W and 350W. It is ideal for a wide range of applications including industrial control, industrial automation machinery, intelligent security, smart grid, IoT, mechanical and electrical equipment, electronic instruments, intelligent building, and household appliances.


LM single output series carries output voltages of 5V, 12V, 15V, 24V, 36V and 48V, and LM multi-output series carries output voltages of 5V, ±12V, ±15V, 24V, 36V and 48V. Protections include short circuit, over current, over voltage. All models are complies with IEC62368, UL62368, EN62368 and GB4943 standards.


Product advantages:

1)Multiple outputs

> Single output: LM35/50/75/100/150/200/350-xxBxx (B for single output)

> Dual output: LM35/50/75/100-10Dxx(D for dual output)

> Triple output: LM35/50/75/100-10Cxx(C for triple output)

2)Reliable performance

> Suitable for high altitude environment

   Its operating altitude is high up to 5000 meters.

> Wide operating temperature range

   Its operating temperature range is from -30℃ to +70℃.

> Ideal for applications that required peak power

  The critical over current value can last 1 hour( e.g, the application of wireless transmission of instantaneous power).

> Complete EMC tests and protections

   Meets CISPR32/EN55032 CLASS B standards. Protections includes short circuit, over current, over voltage.

3) Convenient services

  Quick response with local service, FAE technical support, complete failure analysis platform, 3 years warranty.


LM single output series:


1) Universal input(85-264VAC)

    35-150W     LMxx-20Bxx series

    200W/350W  LMxx-10Bxx series

2) Special input(165-264VAC)
    35-150W     LMxx-22Bxx series

    200W/350W   LMxx-12Bxx series



LM multiple outputs series:


1) Universal input(85-264VAC)

    35-100W LMxx-10Dxx/LMxx-10Cxx series


Features:

> Regulated output, low ripple & noise
> Cooling by free air convection(LM350-xxBxx series: built-in fan on-off control , forced air cooling by built-in DC fan)
> Complete protections: short circuit, over current, over voltage
> Withstand 300VAC surge input for 5 second(no damage)
> Output critical over-current value can last 1 hour (normal temperature 25 ° C, rated input voltage, no damage on products)
> Withstand 5G vibration test
> Meets 5000m altitude requirements
> Meets CISPR32/EN55032 CLASS B
> Compliance to IEC62368, UL62368, EN62368, GB4943 standards
> 3-proof customization is available

3 years warranty

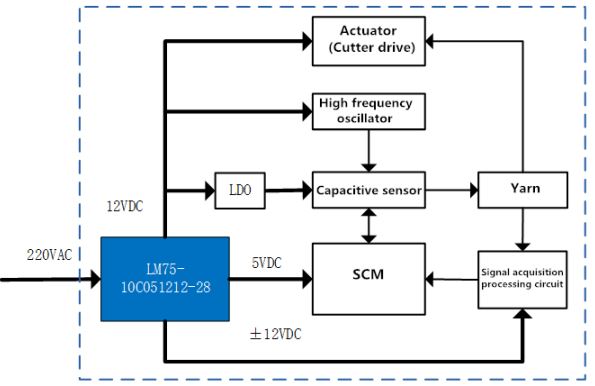

Typical application:

Industrial control - capacitive electronic yarn cleaner control system




Product Number:

Series
Power
(W)

Vin
(VAC/VDC)

Vout
(VDC)

NO. of

outputs

Isolation
(VAC)

Certification

Time to

market

LM35-20Bxx
3585-264/120-373
5,12,15,24

1

4000
pendingDec.2018
LM35-22Bxx
35165-264/180-373
5,12,15,24
1
4000
pendingDec.2018
LM50-20Bxx

50

85-264/120-373
5,12,15,24
14000
pendingDec.2018
LM50-22Bxx
50165-264/180-373
5,12,15,24
14000
pendingDec.2018
LM75-20Bxx
7585-264/120-373
5,12,15,24,48
14000
pendingDec.2018
LM75-22Bxx
75165-264/200-373
5,12,15,24,48
14000
pendingDec.2018
LM100-20Bxx
10085-264/120-373
5,12,15,24,36,48
14000
pendingQ1 2019
LM100-22Bxx
100165-264/200-373
5,12,15,24,36,48
14000
pendingQ1 2019
LM150-20Bxx
15085-264/120-373
12,15,24,36,48
14000
pendingDec.2018
LM150-22Bxx
150165-264/180-373
12,15,24,36,48
14000
pendingDec.2018
LM200-10Bxx
200Low Vin:90-132VAC
High Vin:180-264VAC/240-373VDC
5,12,15,24,36,48
13000
pendingQ1 2019
LM200-12Bxx
200180-264/240-373
5,12,15,24,36,48
13000
pendingQ1 2019
LM350-10Bxx
350Low Vin:90-132VAC
High Vin:180-264VAC/240-373VDC
5,12,15,24,36,48
13000
pendingQ1 2019
LM350-12Bxx
350180-264/240-373
5,12,15,24,36,48
13000
pendingQ1 2019
LM35-10Dxx
3585-264/100-373
5/12, 5/24
23000
pendingQ1 2019
LM35-10Cxx
3585-264/100-373
5/±12, 5/±15,5/24/12
33000
pendingQ1 2019
LM50-10Dxx
5085-264/100-373
5/12, 5/24
23000
pendingQ1 2019
LM50-10Cxx
5085-264/100-373
5/±12, 5/±15,5/24/12
33000
pendingQ1 2019
LM75-10Dxx
7590-264/100-373
5/12, 5/24
23000
pendingQ1 2019
LM75-10Cxx
7590-264/100-373
5/±12, 5/±15,5/24/12
33000
pendingQ1 2019
LM100-10Dxx
10090-264/100-373
5/24, 12/24
23000
pendingQ1 2019
LM100-10Cxx
10090-264/100-373
5/±12, 5/±15,5/24/12
33000
pendingQ1 2019
