IP67 Non-isolated DC/DC converter for industrial vehicle applications --- KUB72_CCS-5A

IP67 Non-isolated DC/DC converter for industrial vehicle applications --- KUB72_CCS-5A.jpg

To meet the special requirements, such as EN12895, EN61373 standards, of vehicle power supply for industrial vehicle applications, MORNSUN launched a non isolatede dc dc converter KUB72_CCS-5A series, which features a high input voltage up to 120VDC, Emissions meeting EN12895 standards without a peripheral circuit, encapsulated with wiring, chassis mounting with screw, and meeting IP67 rating.


Advantages of IP67 Non-isolated DC/DC converter

1. Ultra-wide input voltage range: 45-120VDC

Meet the voltage requirements of most industrial vehicles' power supply, especially the voltage requirements of electric forklift trucks under a variety of battery series combinations.


2. Built-in EMC circuit, meet the EN12895 standard

Meet EN12895 standard without a peripheral circuit, and simplify the non isolated dc dc system design to reduce the size and cost.


3. Encapsulated with wiring

Metal case (six-sided shielding), the dimension is only 62.4*56.1*28.85mm; Encapsulated with wiring and chassis mounting with screw meets the on-site construction and installation requirements. Meets the requirements of EN61373 vehicle body type 2 vibration and vehicle vibration connectivity.


4. Meets the IP67 Rating

Meet the requirements of dustproof and waterproof industrial vehicles to ensure the safety of equipment and personnel.


Applications of IP67 Non-isolated DC/DC converter

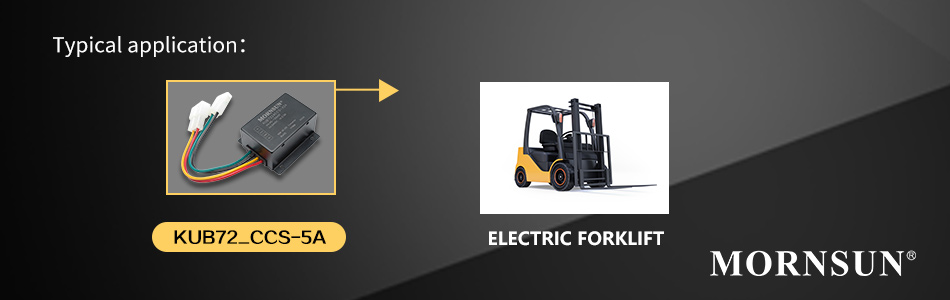

The KUB72_CCS-5A series non isolated dc dc converter can meet the voltage conversion requirement in applications of industrial control, electric power, machinery, especially the electronic system of various industrial vehicles, such as electric forklift, golf cart, touring car, robot, etc.

IP67 Non-isolated DC/DC converter for industrial vehicle applications --- KUB72_CCS-5A.jpg


Features of IP67 Non-isolated DC/DC converter

  • Encapsulated with wiring and chassis mounting with screw

  • Metal case, and built-in EMC circuit

  • Meet IP67 rating

  • Wide input voltage: 45-120V

  • Efficiency up to 96%

  • Output continuous short-circuit protection

  • Operating temperature range: -40℃ to +85℃

  • Low standby power consumption: 0.15W

* For detailed information please refer to the related datasheet, product news is for reference only.
Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VDC) Vout(VDC) Iout No. of Outputs Package Dimension(mm) Footprint & 3D Markings Datasheet Sample Buy
KUB7212CCS-5A 60 72(45-120) 12 5000 1 Chassis 62.4*56.1*28.85mm
-
KUB7224CCS-X2A 60 72(45-120) 24 2500 1 Chassis 62.4*56.1*28.85mm
-
