0.98 Power Factor!100W Active PFC Enclosed Switching Power Supply LMF100-20Bxx Series

100WActive PFC Enclosed Switching Power Supply LMF100-20Bxx Series


MORNSUN released a new enclosed switching power supply series LMF100-20Bxx with active PFC(Power factor correction). The 100W Active PFC Enclosed Switching Power Supply LMF100-20Bxx series features a universal input voltage range of 85-264Vac, accepts AC or DC input and the PF(Power factor) is up to 0.98. In addition, its emissions meet CISPR32 CLASS B without extra components. The new series also meets IEC/EN/UL62368, EN60335, GB4943 safety standards. Protections of output short circuit, over-current, over-voltage, over-temperature are included. MTBF is more than 300,000 h and the dimension is 10% smaller than conventional products, which make this series ideal for industrial, civil, smart home, smart building applications.


LMF100-20Bxx series Applications:


Widely used in applications of industrial automation machinery, industrial control system, mechanical and electrical equipment, instrumentation, intelligent building, household appliance, etc.

Typical application: Numerical control machine tools


LMF100-20Bxx with active PFC(Power factor correction)


LMF100-20Bxx series Features:


Universal 85 - 264V AC or 120 - 373VDC Input voltage
Accepts AC or DC input (dual-use of the same terminal)
Compact size, dimension is 10% smaller than conventional products
High reliability: MTBF>300K hrs
Operating temperature range -30°C ~ +70°C
Built-in active PFC function(up to 0.98PF)
High I/O isolation test voltage up to 4000VAC
Output short circuit, over-current, over-voltage, over-temperature protection(Built-in constant current limiting circuit)
Remote ON-OFF control
Safety according to IEC/EN/UL62368, EN60335, GB4943 (CE/CCC pending)
Emissions meet CISPR32/EN55032 CLASS B without extra components
Over-voltage class Ⅲ (designed to meet EN61558)
Withstand 300VAC surge input for 5s
3 years warranty
Conformal coating is acceptable, the terminal cover is optional.

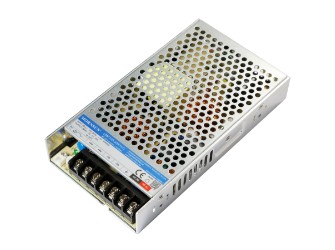

Without terminal cover

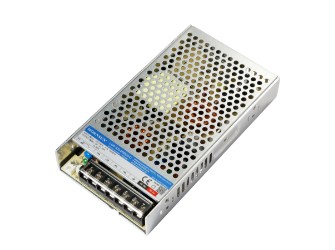

With terminal cover
Without terminal cover
With terminal cover




Please refer to the technical manual for specific product parameters:

Series Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) Footprint & 3D Certification Datasheet Sample
LMF100-20B05 100 85~264VAC/120~373VDC 5V/20A -30℃ to +70℃ 1 86 4000 3D MODEL UL LMF100-20B05
LMF100-20B12 102 85~264VAC/120~373VDC 12V/8.5A -30℃ to +70℃ 1 86 4000 3D MODEL UL LMF100-20B12
LMF100-20B15 100.5 85~264VAC/120~373VDC 15V/6.7A -30℃ to +70℃ 1 87 4000 3D MODEL UL LMF100-20B15
LMF100-20B24 100.8 85~264VAC/120~373VDC 24V/4.2A -30℃ to +70℃ 1 87 4000 3D MODEL UL LMF100-20B24
LMF100-20B48 100.8 85~264VAC/120~373VDC 48V/2.1A -30℃ to +70℃ 1 88 4000 3D MODEL UL LMF100-20B48
